Flexibility 4:3 Aspect Ratio

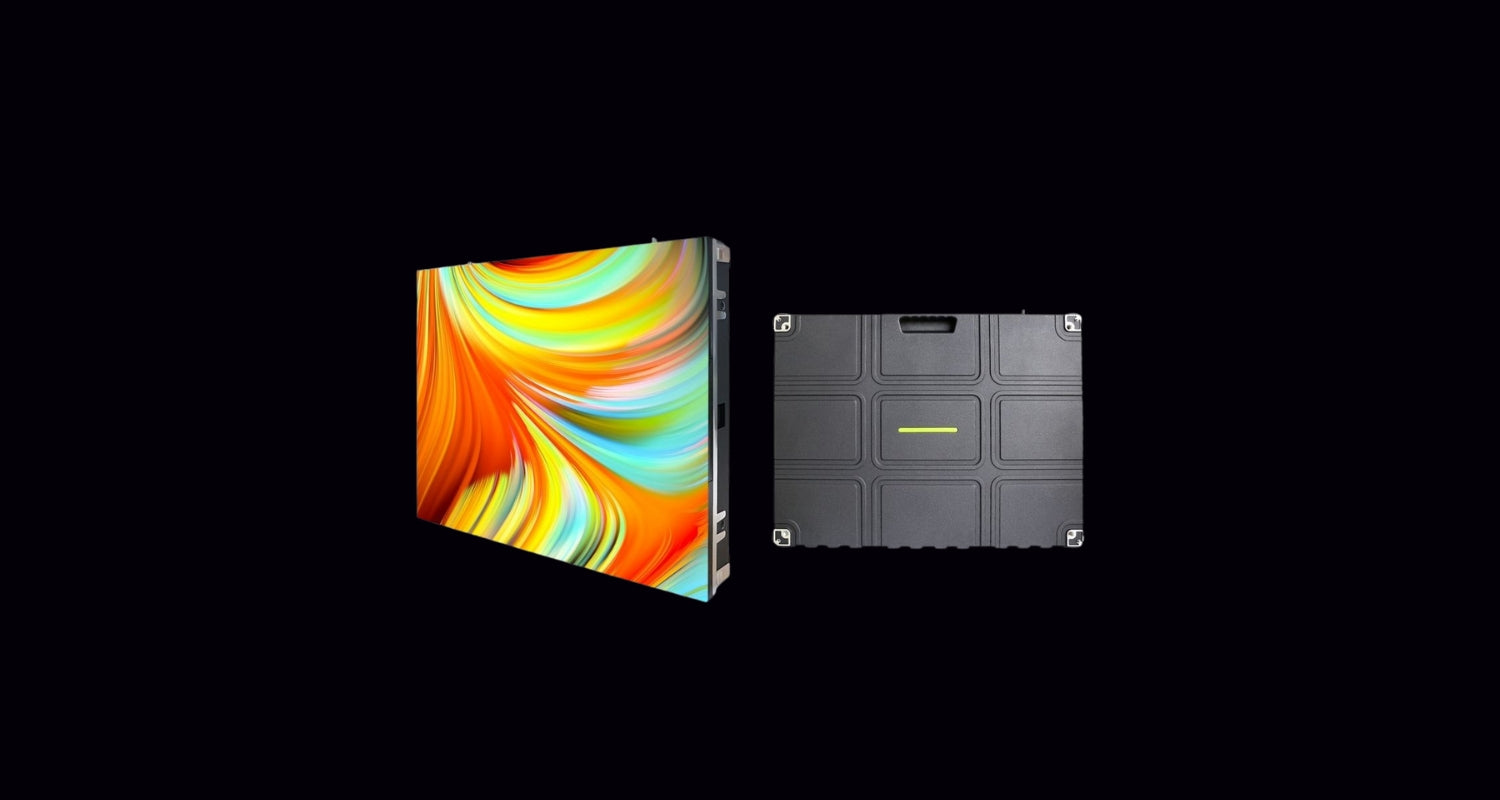

Each Match - EM Series
Explore EM Series
EM-125
- LED Video Panels -
Panel Name: EM-125
Pixel Configuration: NationStar®️ SMD1010
Pixel Pitch: 1.25 mm
Resolution: 512 x 384
Pixel Quantity: 196,608 Pixels
Pixel Density: 640,000 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.4 lbs (7.0 kg)
- LED Tiles -
Resolution: 256 x 128
Pixel Quantity: 32,768 Pixels
Dimensions: 12.60 x 6.30" (320 x 160 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV416
Brightness: 800 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/64
Optimal Viewing Distance: 3 ~ 39 ft (1.2 ~ 12.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
Explore EM Series

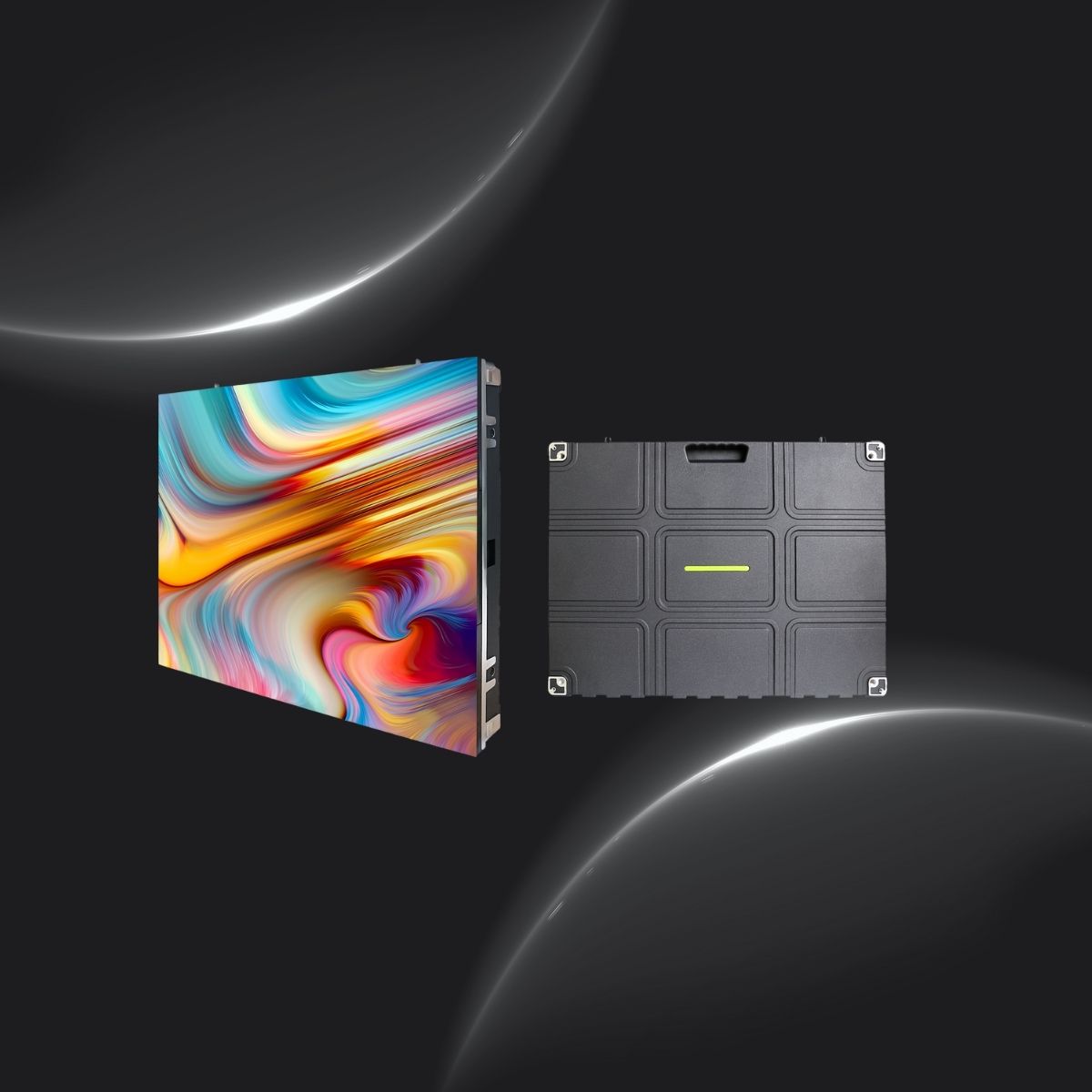

EM-153
- LED Video Panels -
Panel Name: EM-153
Pixel Configuration: NationStar®️ SMD1212
Pixel Pitch: 1.538 mm
Resolution: 416 x 312
Pixel Quantity: 129,792 Pixels
Pixel Density: 422,500 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.4 lbs (7.0 kg)
- LED Tiles -
Resolution: 208 x 104
Pixel Quantity: 21,632 Pixels
Dimensions: 12.60 x 6.30" (320 x 160 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV416
Brightness: 800 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/52
Optimal Viewing Distance: 4 ~ 49 ft (1.5 ~ 15.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
Explore EM Series

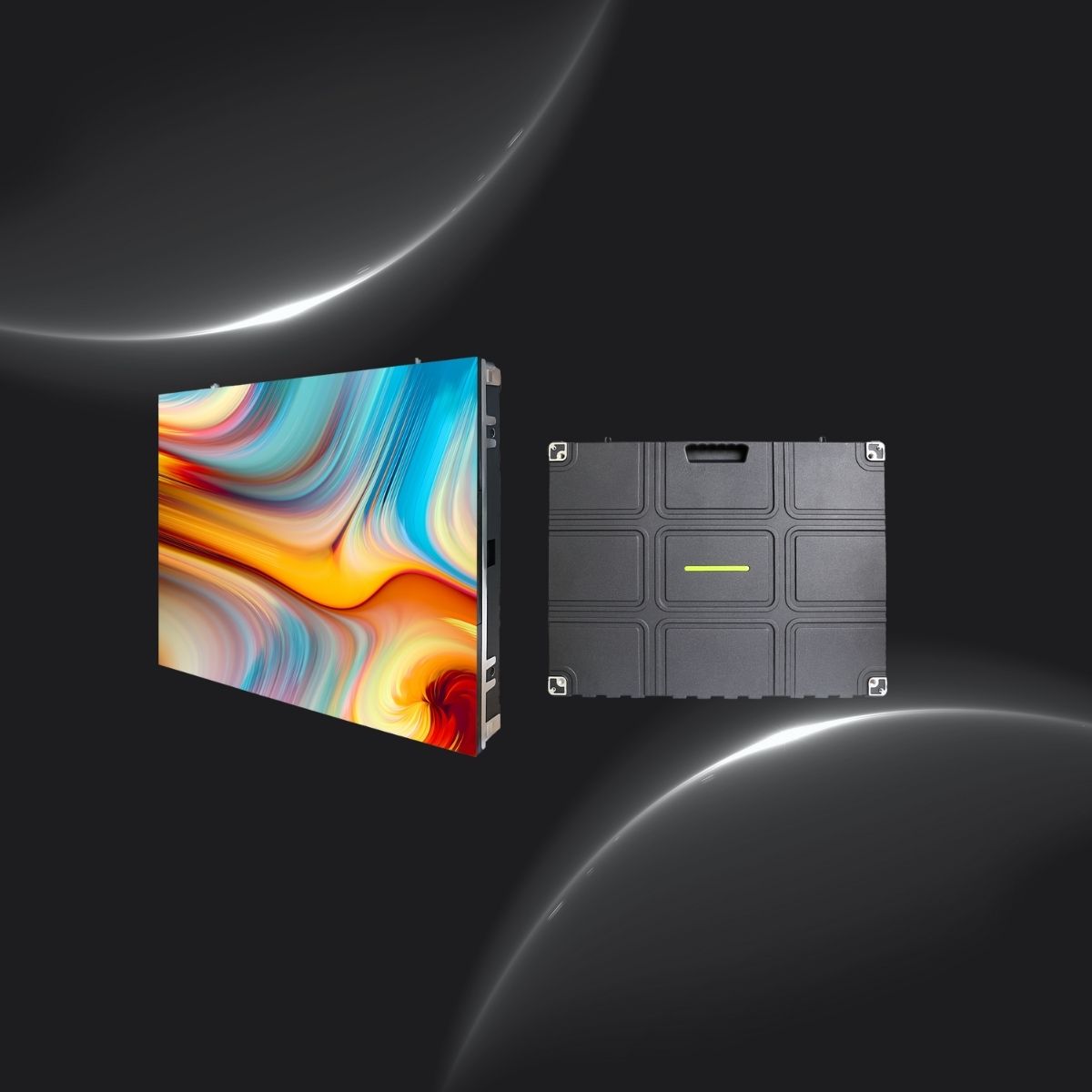

EM-186
- LED Video Panels -
Panel Name: EM-186
Pixel Configuration: NationStar®️ SMD1010
Pixel Pitch: 1.86 mm
Resolution: 344 x 258
Pixel Quantity: 88,752 Pixels
Pixel Density: 289,444 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.4 lbs (7.0 kg)
- LED Tiles -
Resolution: 172 x 86
Pixel Quantity: 14,792 Pixels
Dimensions: 12.60 x 6.30" (320 x 160 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV416
Brightness: 800 nits
Color Depth: 16 bit
Scan Mode: 1/43
Optimal Viewing Distance: 5 ~ 59 ft (1.8 ~ 18.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
Explore EM Series

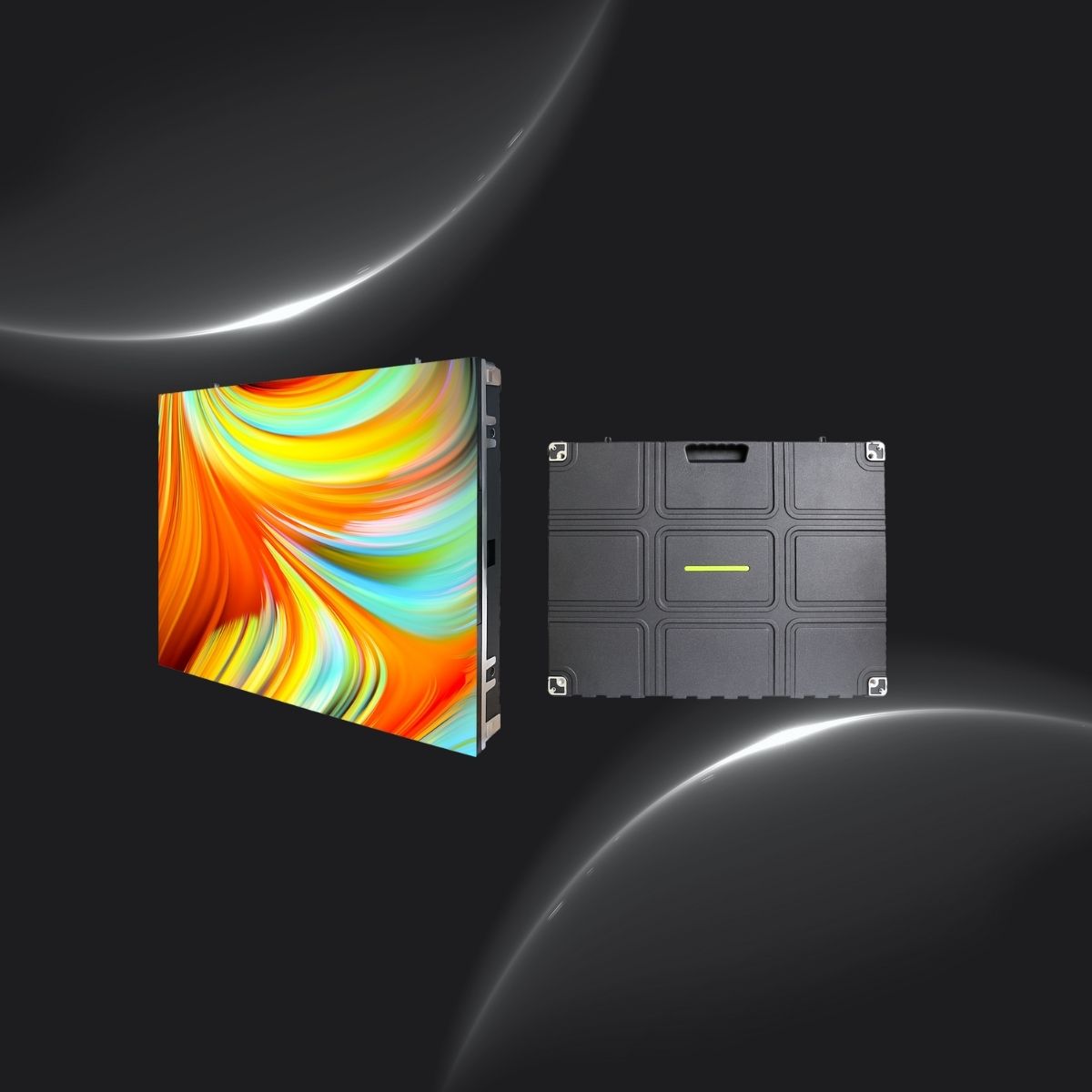

EM-200
- LED Video Panels -
Panel Name: EM-200
Pixel Configuration: NationStar®️ SMD1515
Pixel Pitch: 2.0 mm
Resolution: 320 x 240
Pixel Quantity: 76,800 Pixels
Pixel Density: 250,000 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.4 lbs (7.0 kg)
- LED Tiles -
Resolution: 160 x 80
Pixel Quantity: 12,800 Pixels
Dimensions: 12.60" x 6.30" (320 x 160 mm)
Weight: 1lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV416
Brightness: 800 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/40
Optimal Viewing Distance: 6 ~ 65 ft (2.0 ~ 20.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
Explore EM Series

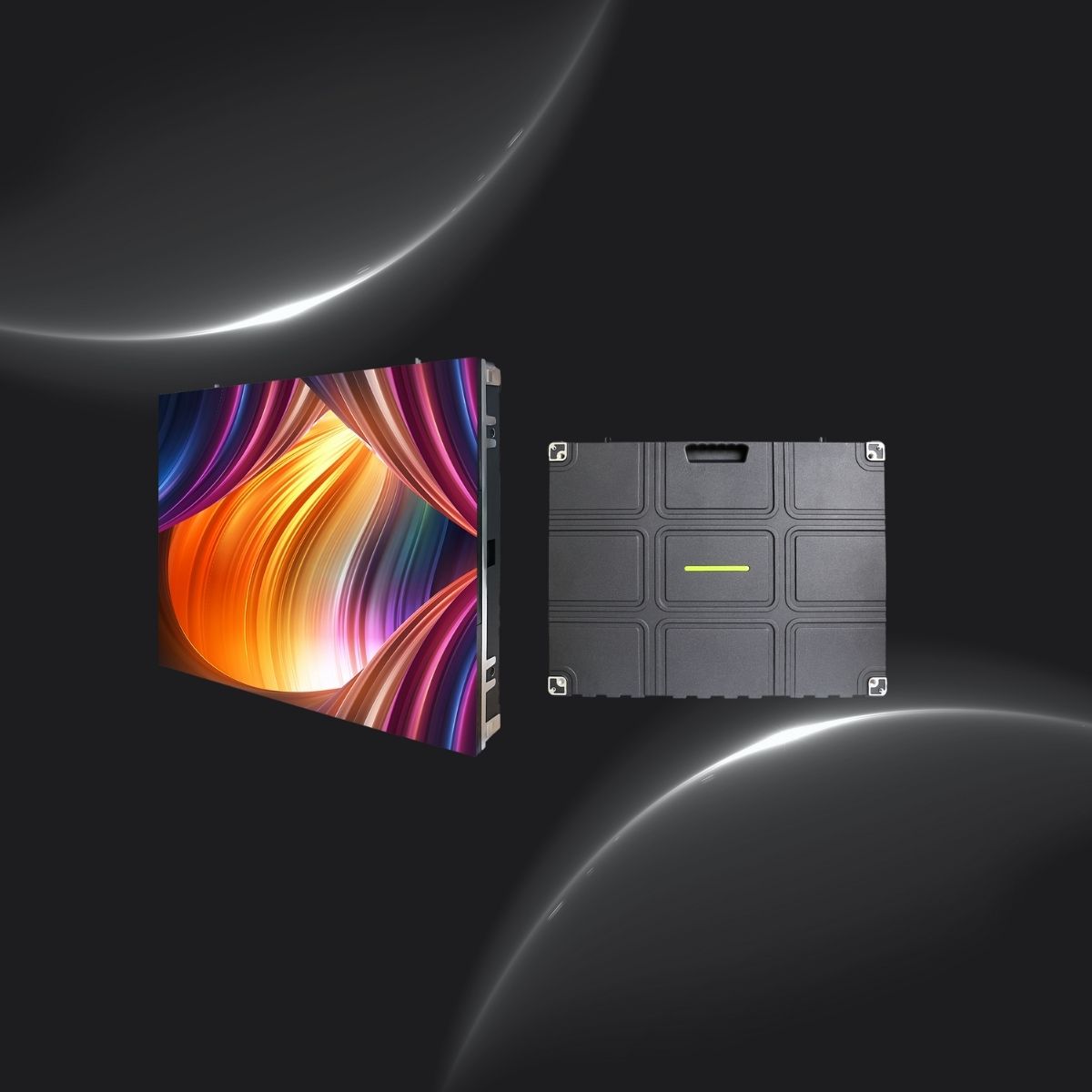

EM-250
- LED Video Panels -
Panel Name: EM-250
Pixel Configuration: NationStar®️ SMD2020
Pixel Pitch: 2.5 mm
Resolution: 256 x 192
Pixel Quantity: 49,152 Pixels
Pixel Density: 160,000 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.43 lbs (7.0 kg)
- LED Tiles -
Resolution: 128 x 64
Pixel Quantity: 8,192 Pixels
Dimensions: 12.60 x 6.30" (320 x 160 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV336
Brightness: 1000 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/32
Optimal Viewing Distance: 8 ~ 82 ft (2.5 ~ 25.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
Explore EM Series

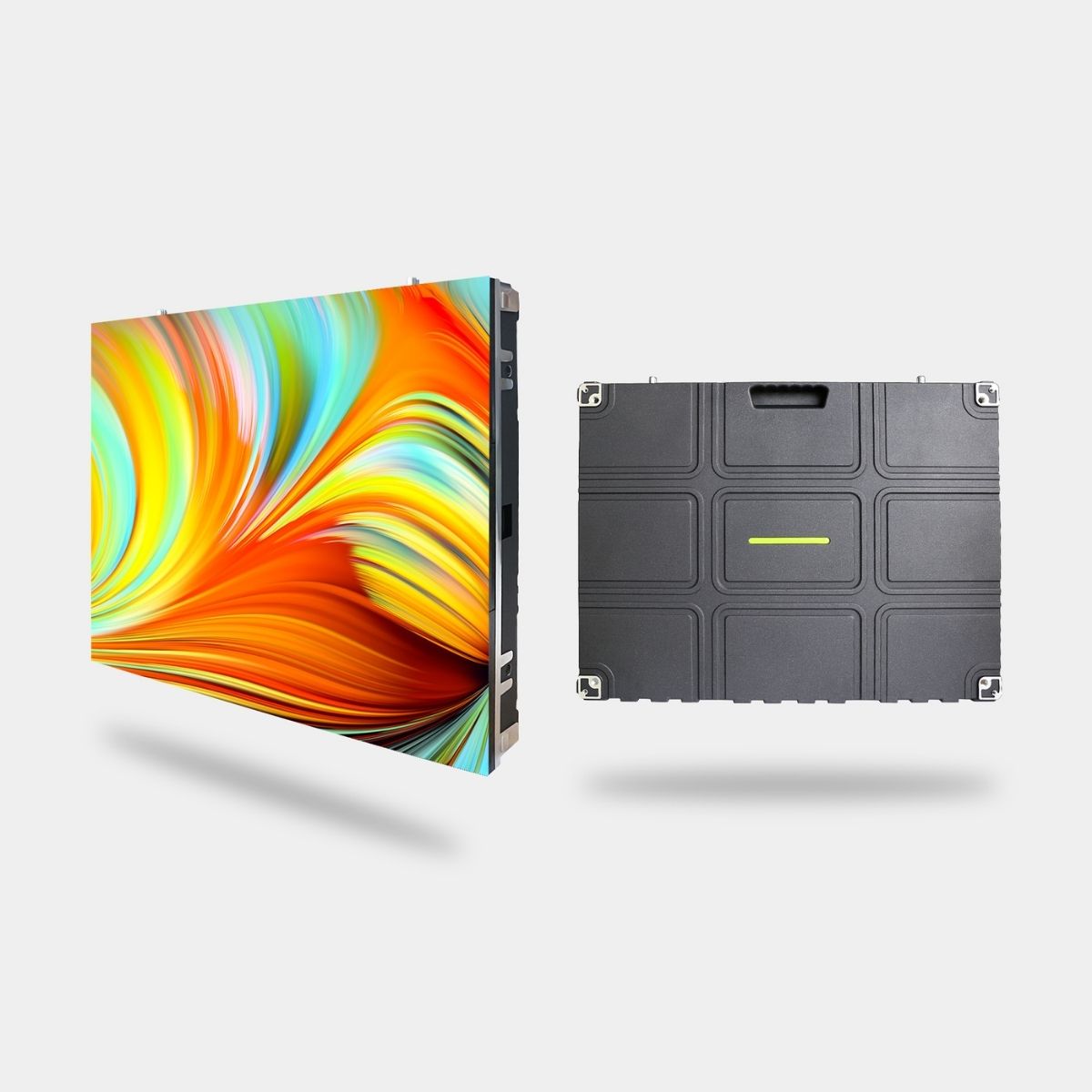

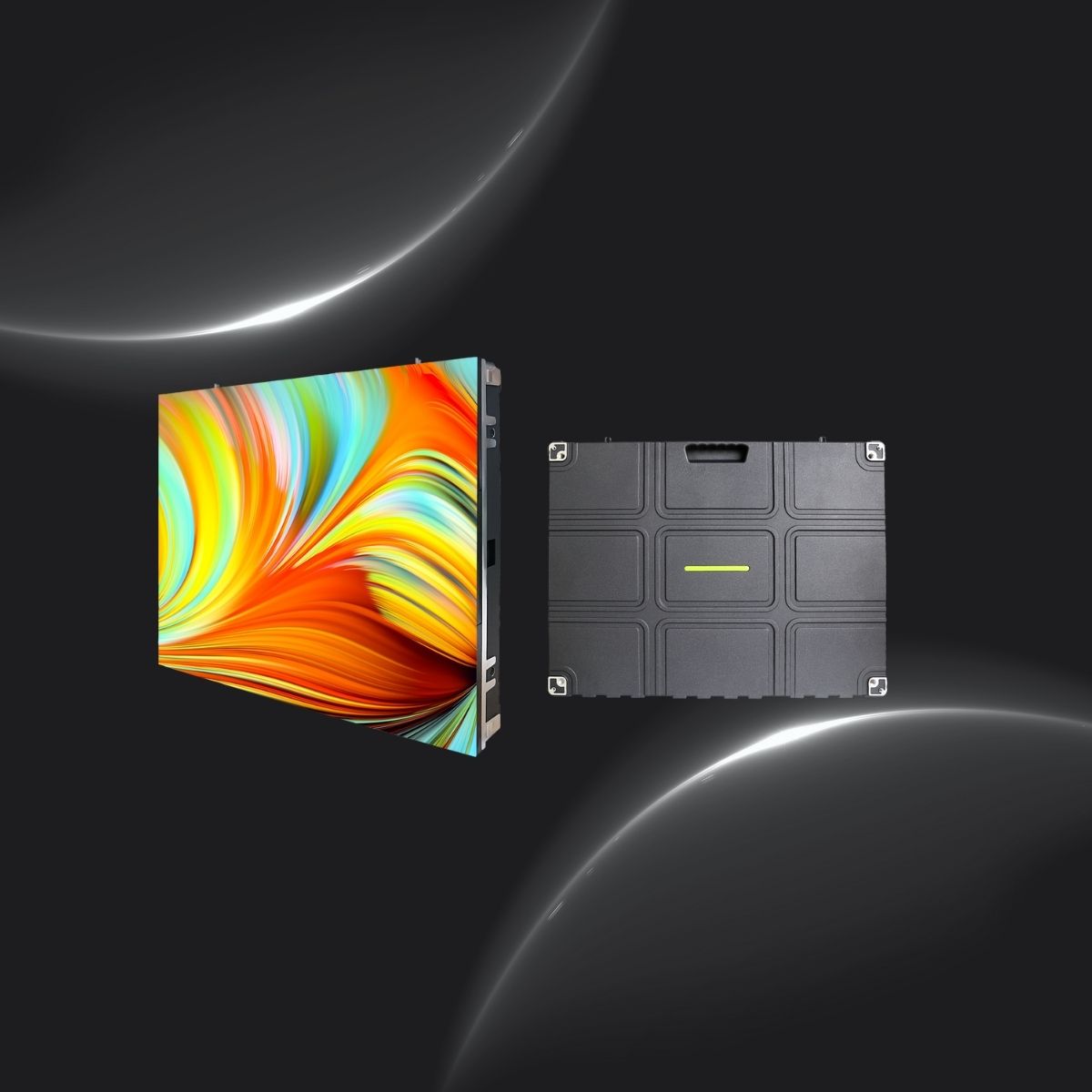

EM-307
- LED Video Panels -
Panel Name: EM-307
Pixel Configuration: NationStar®️ SMD2020
Pixel Pitch: 3.076 mm
Resolution: 208 x 156
Pixel Quantity: 32,448 Pixels
Pixel Density: 105,625 Pixels/㎡
LED Tile Quantity: 6 PCS Per Panel (2 x 3)
Material: Aluminum Die Cast
Dimensions: 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm)
Weight: 15.4 lbs (7.0 kg)
- LED Tiles -
Resolution: 104 x 152
Pixel Quantity: 5,408 Pixels
Dimensions: 12.60 x 6.30 (320 x 160 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️ MRV336
Brightness: 800 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/26
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 100 W/Panel
Max. Power Consumption: 200 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP43
Warranty: 5 Years
EASY MAINTENANCE

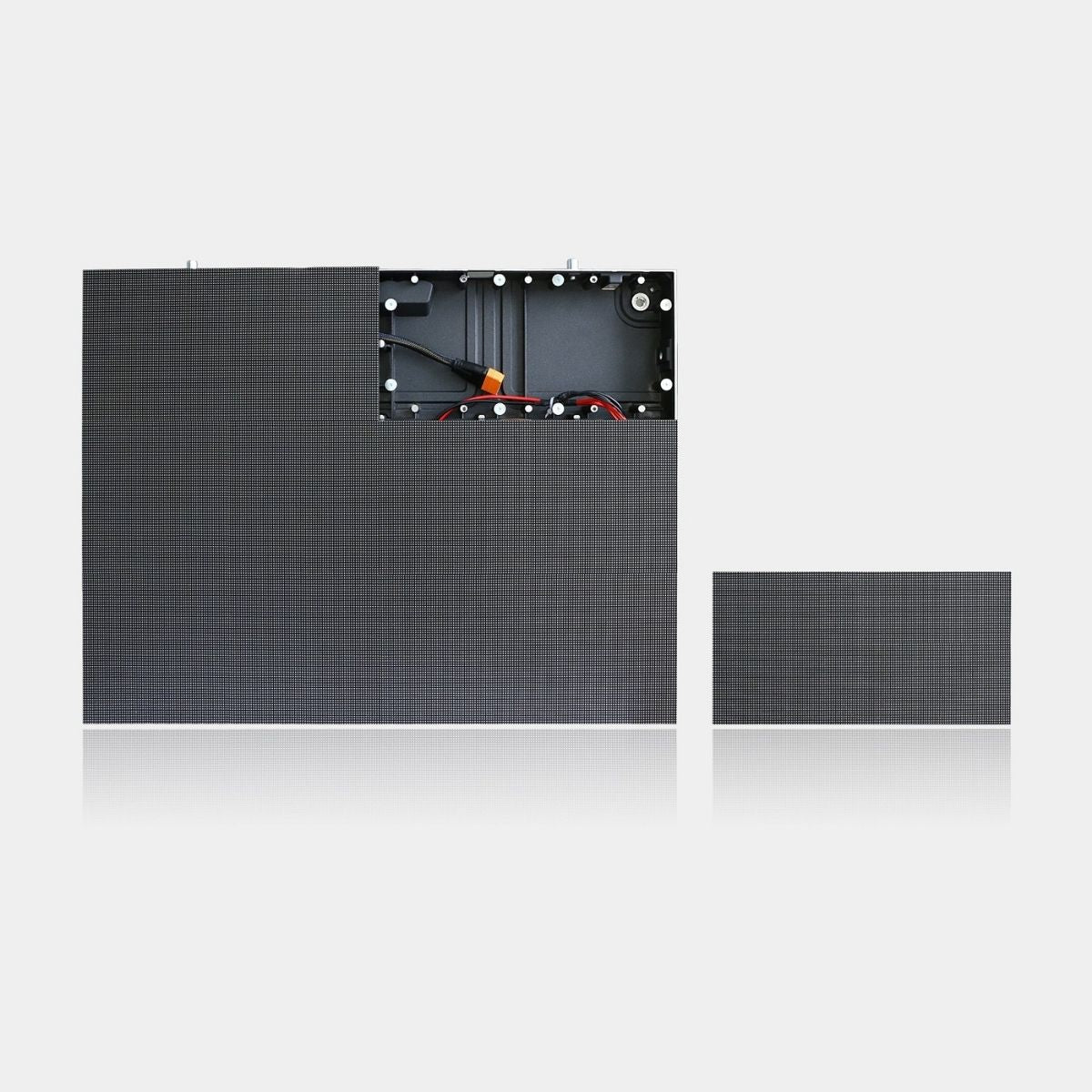

Magnetic LED modular sections for easy, tool-free serviceability from the front of the screen.
EXCELLENT ADAPTABILITY
The panel size is 640 x 480 mm to meet the market's most basic 4:3 ratio.
CREATIVE FLEXIBILITY
The panels can be cut to 320 x 480 mm or 640 x 320 mm to meet individual size requirements.
LOW LATENCY
High-refresh rates and scan rates for fluid image movements and high input frame rate support.
Permanent Installation
Universal Mounting
EM series panels are our 640 x 480 mm LED video panels to meet the market's most basic 4:3 ratio. These panels can captivate a large audience, ensuring no details of your message or advertisement are missed.
Flexible Scalability
Easy Installation & Serviceability

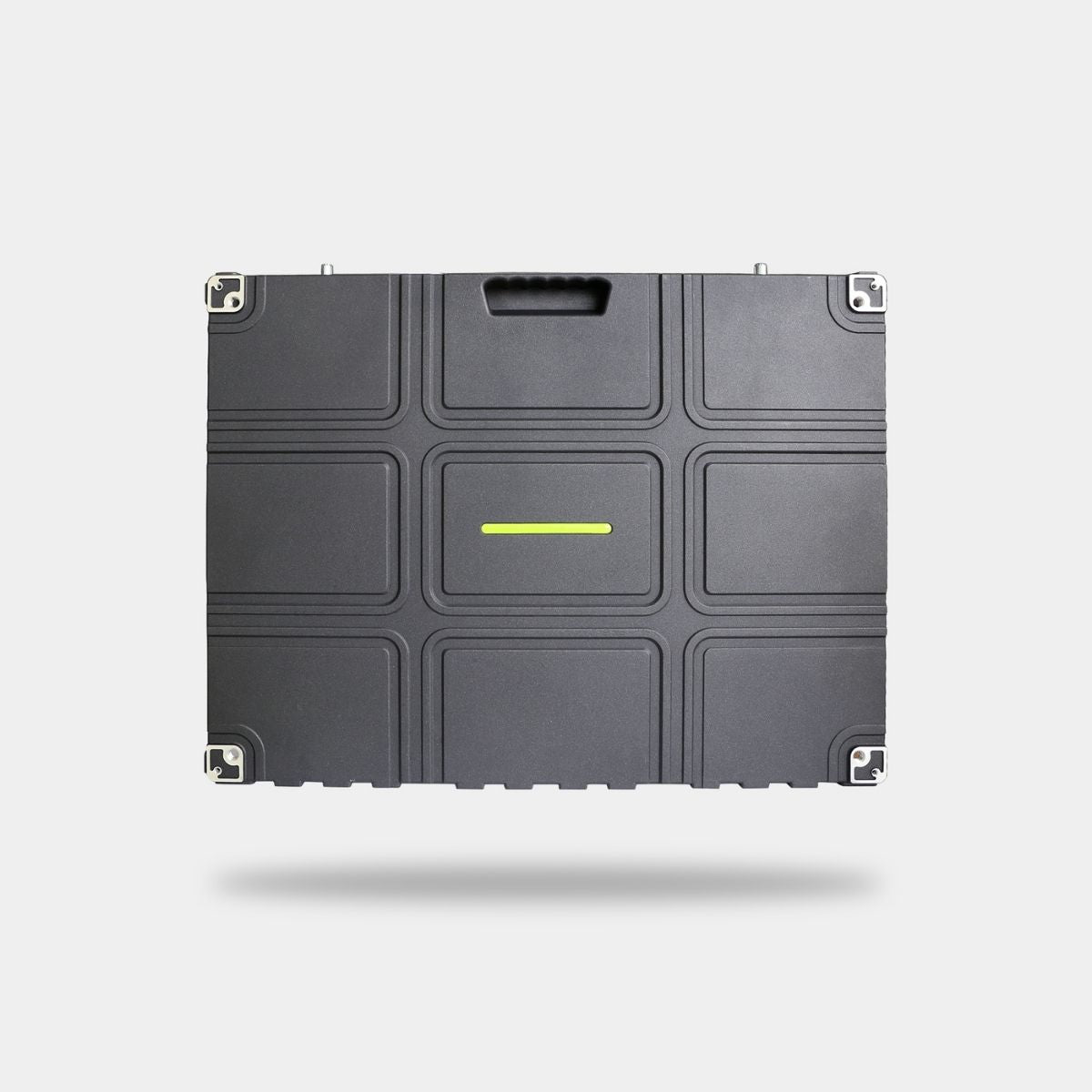

Derived from the concept of a flat panel, the backside reduces the exposed redundancy of wires and realizes the flat panel installation before complete front maintenance; It is less destructive to the original wall and saves space.
The independent packaging of the module and the panel effectively reduces the bumping limitation of developing to a smaller spacing and satisfies the possibility of a smaller area and a denser display.
Ultra Low-Profile
Lightweight Frame, Easy Maintenance
The force-bearing points of the mount are evenly distributed, no longer relying on the structure for welding bearing capacity, and use a simple square pass or a dragon skeleton to punch and fix, which is convenient for the production and installation of the structure.
The debugging software is solidified on the receiving card. After the panel is installed and powered on to send the program, the module is mounted, tested, and the complete screen is displayed.
Price List
Sales Department - Viking Sales16@eachinled.com
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications.
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
