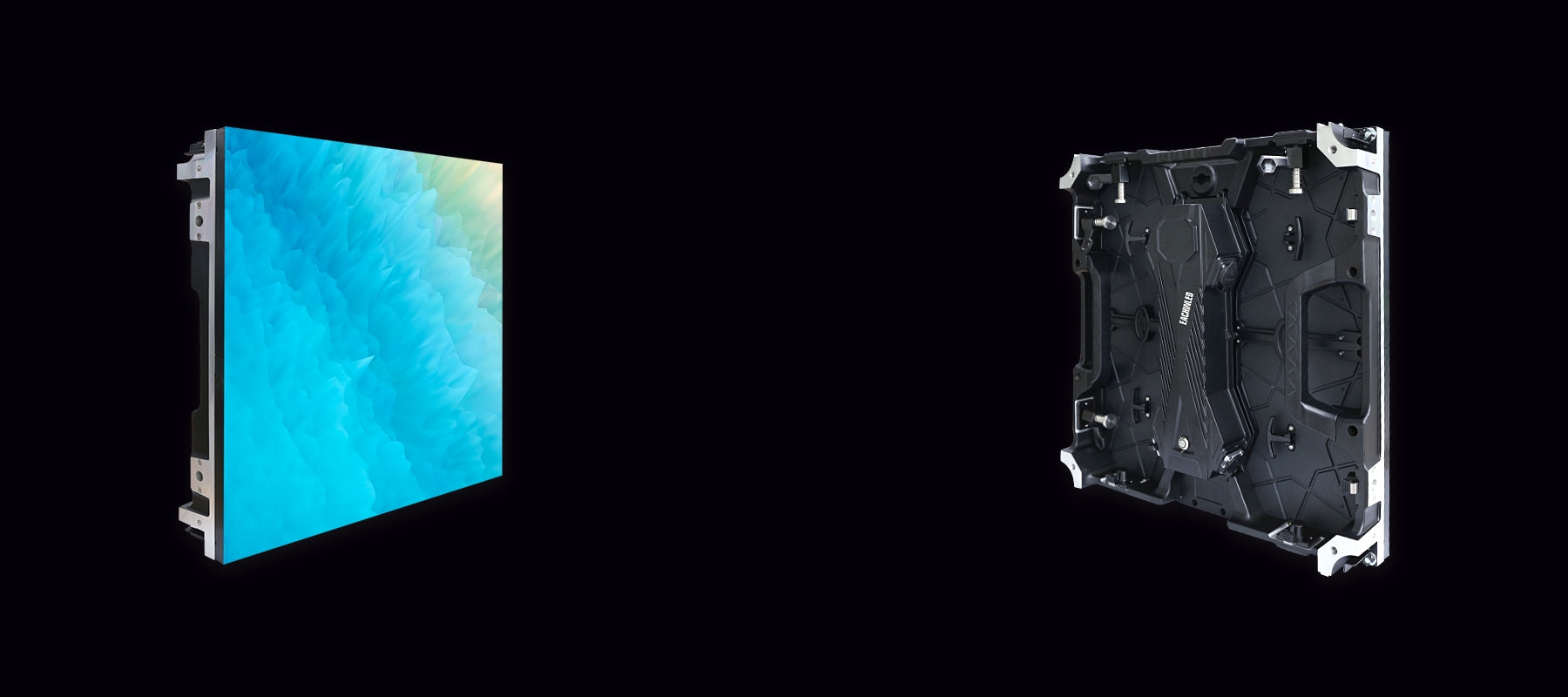

High-End Stage / Rental Panels
Forwin™️ FW Series
Explore ForWin™️ FW Series

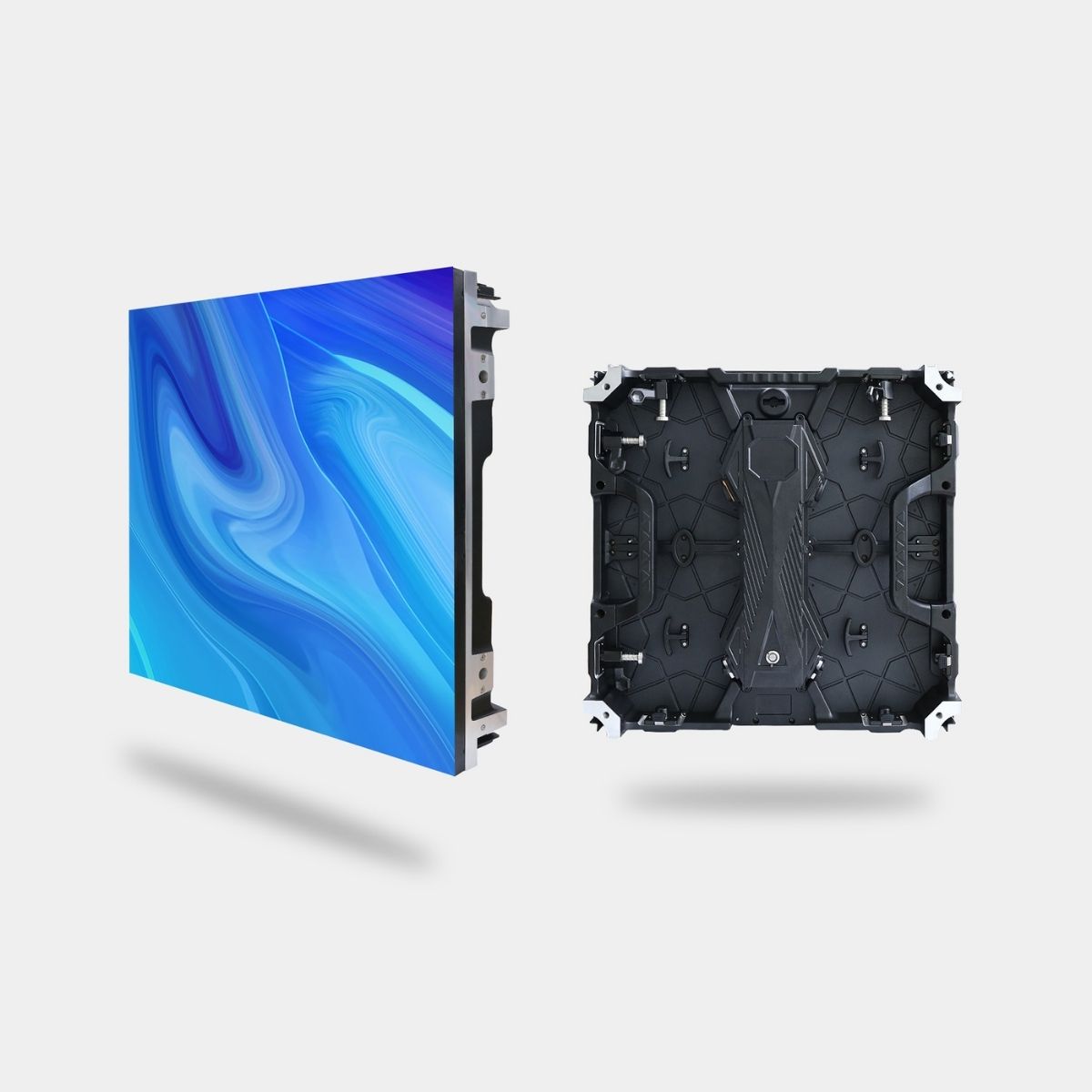

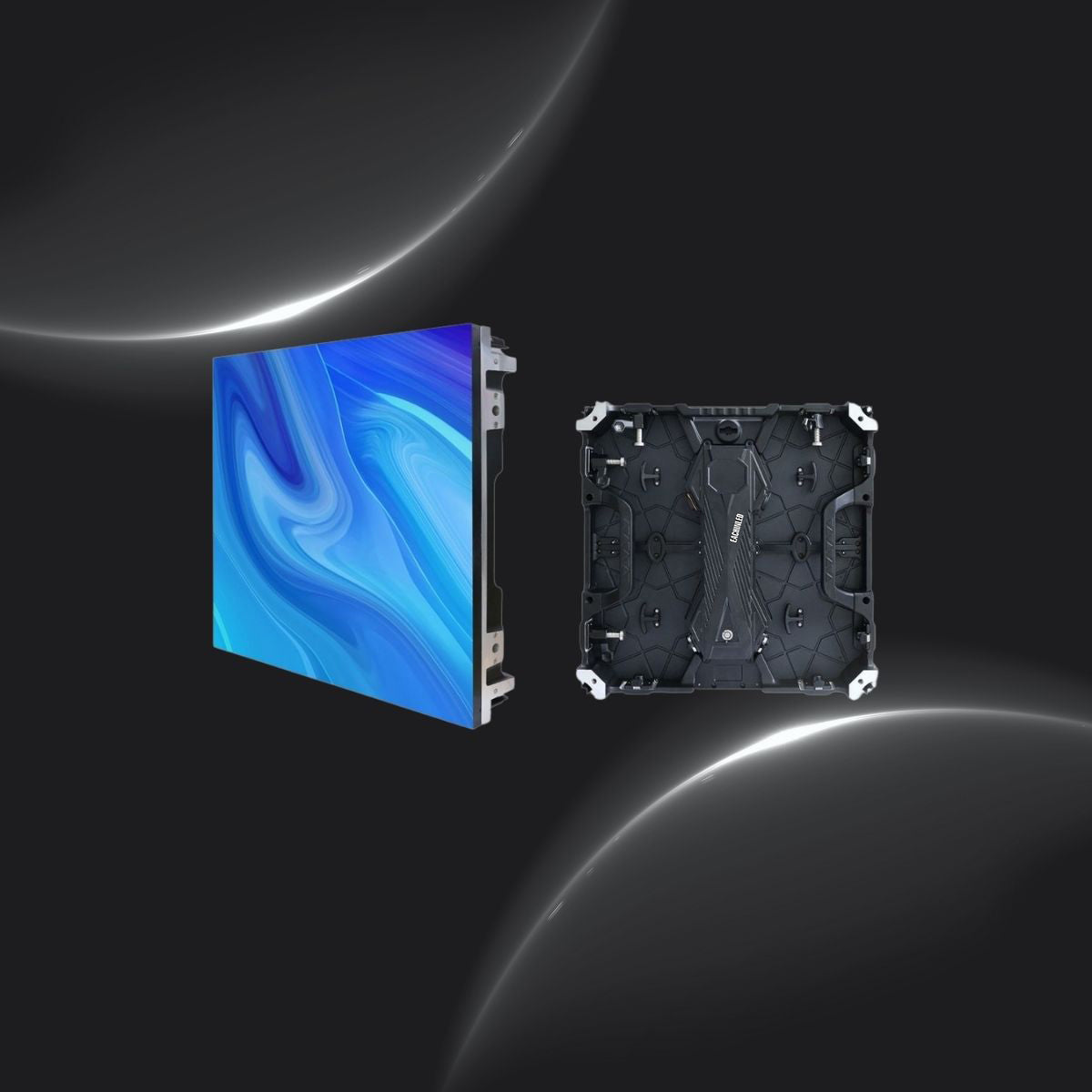

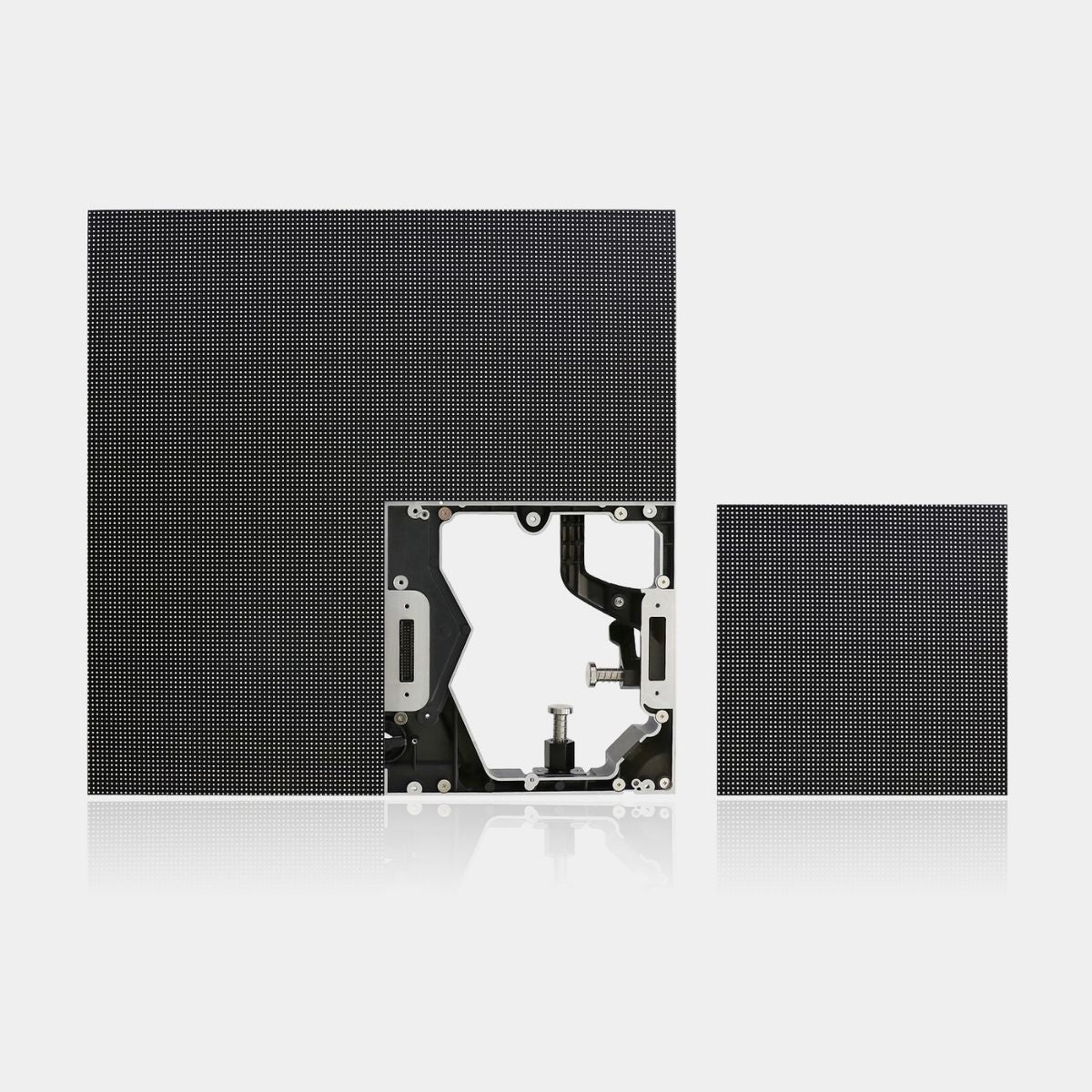

FW-297
- LED Video Panels -
Panel Name: FW-297
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 168
Pixel Quantity: 28,224 Pixels
Pixel Density: 112,896 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore ForWin™️ FW Series

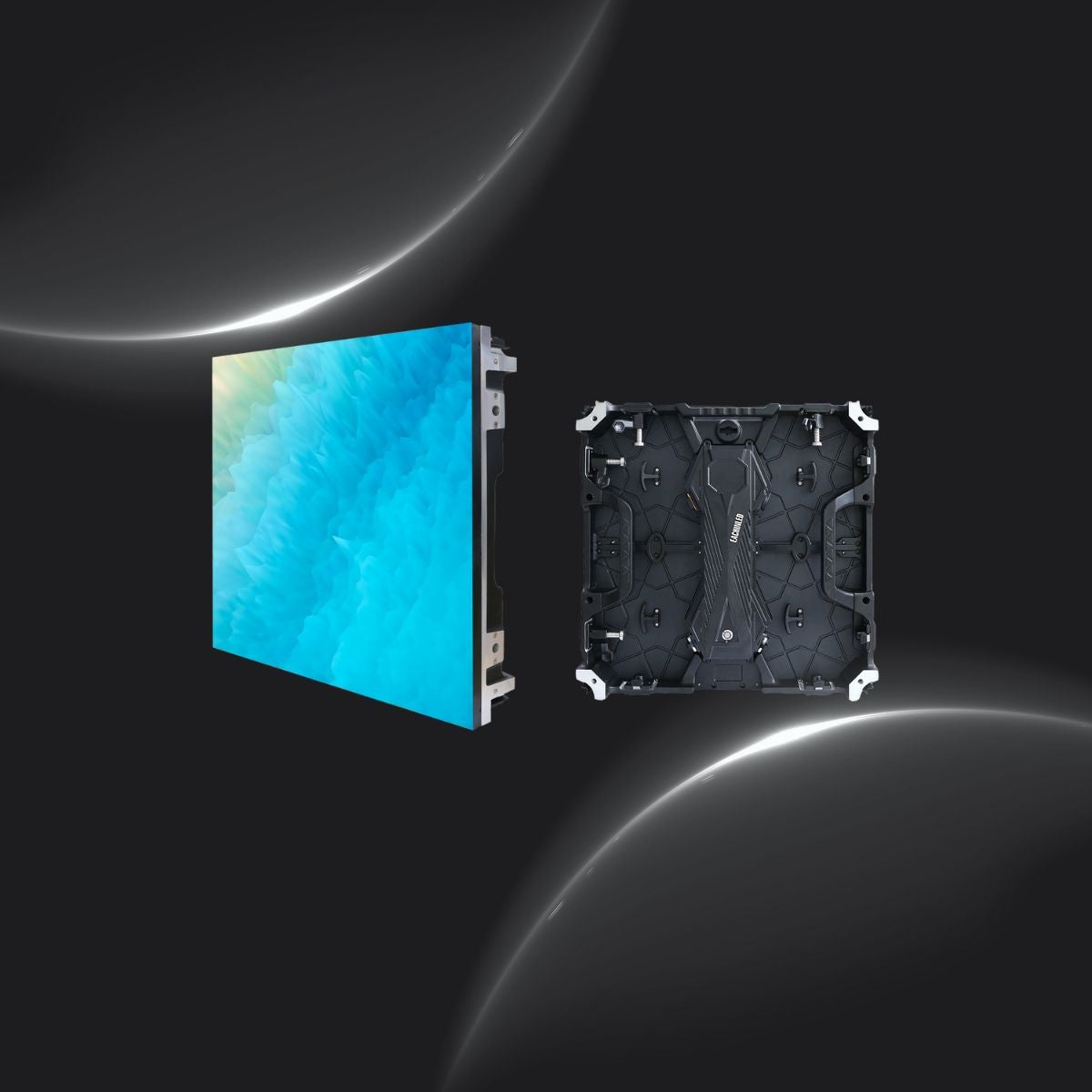

FW-391
- LED Video Panels -
Panel Name: FW-391
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 128
Pixel Quantity: 16,384 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore ForWin™️ FW Series

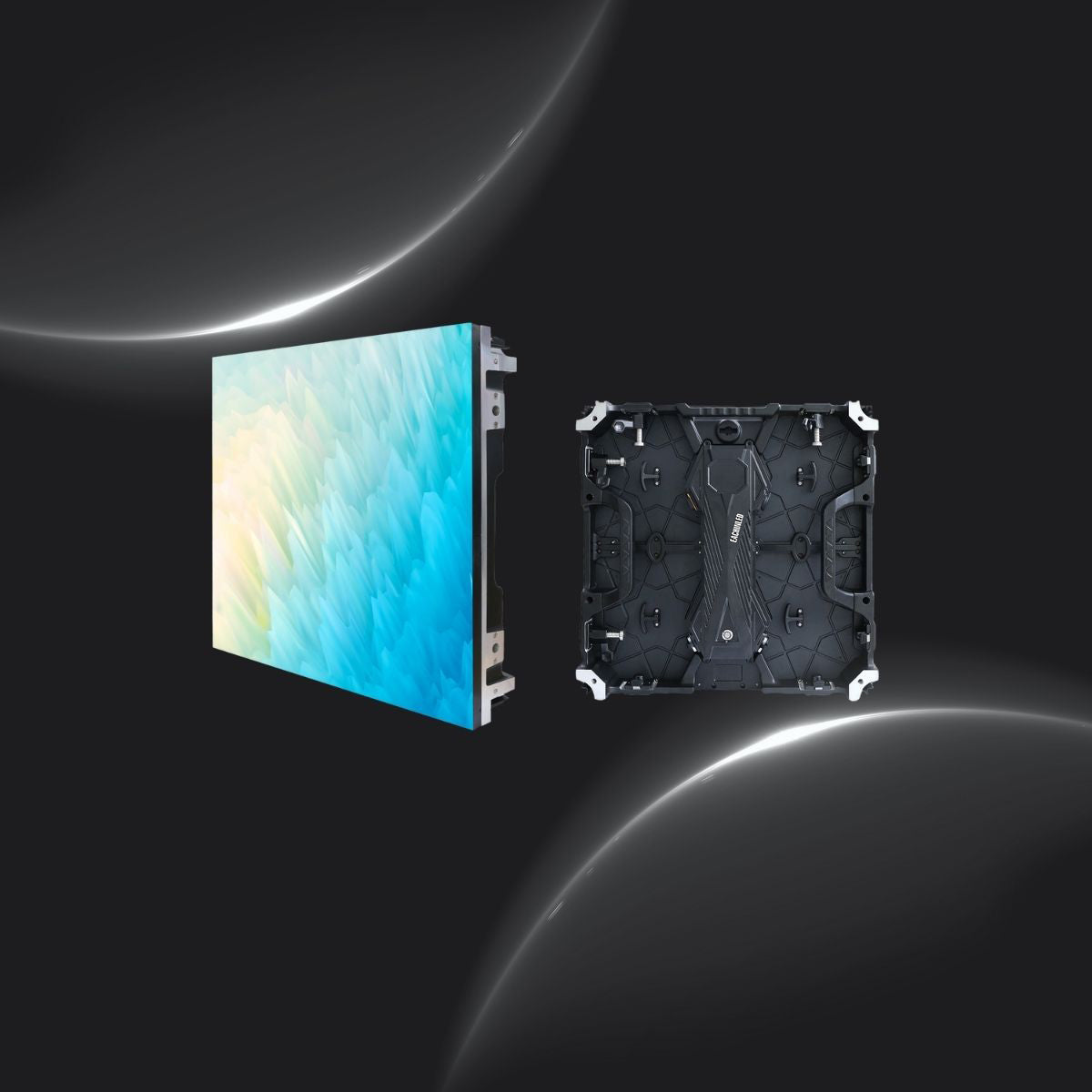

FW-481
- LED Video Panels -
Panel Name: FW-481
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 104
Pixel Quantity: 10,816 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 80W/Panel
Max. Power Consumption: 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
Full-Scale Flexibility
Rigging hardware for flying and ground stacking integrated into a lightweight frame for quick deployment with standard concave/convex curving expanding design flexibility.
Lightweight Touring
Reduce weight load and shipping costs with die-casting aluminum LED panels. Save setup and labor time with dynamic deployment options.
Modular Design
Ribbon-cable-free designs for enhanced stability. Modular components for easy field serviceability and minimal downtime.
Indoor & Outdoor
A LED display solution with curated LEDs is suitable for indoor and outdoor environments without compromising image quality at all brightness levels. Vivid visibility in light or dim environments with IP65-rated protection. Ultra-high brightness options are available.
High-performance HDR technology
Stellar visual performance
Built around NovaStar™ A8s receiving cards, Forwnin panels offer HDR10 & HLG support, automatic module calibration, image rotation, and an advanced 3-in-1 SMD LED configuration.
High-performance LED video display systems can help rental houses and production providers gain a competitive advantage by offering advanced LED display solutions that meet and exceed the challenging requirements of high-profile, critical events in any environment.
Robust cabinet, front, and rear serviceability
Muscle and flexibility
Robust cabinets from integrated-formed processes are designed to be portable and scalable with indoor and outdoor options to accommodate any event application in any rugged environment. A front and rear serviceable LED panel can offer multiple deployment options that ensure labor efficiency and flexibility to accommodate an array of stage and set designs.

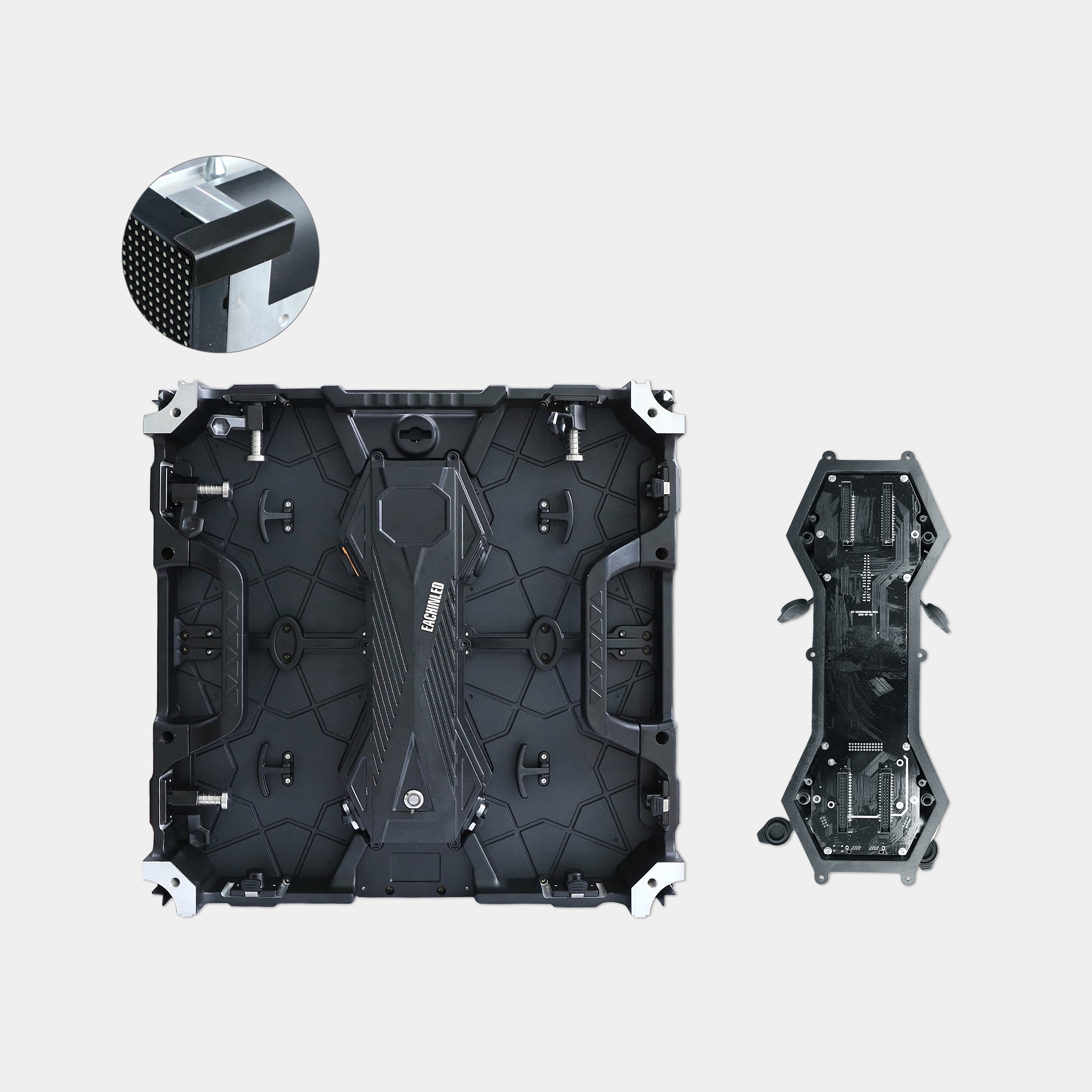

Direct module connection
Top-notch design and reliability
The back cover is designed as a full plugging mode. All power supply and signal failure problems can be solved by quickly replacing the whole back cover, which meets the current needs of the site.
The cable-free design significantly increases stability for power and signal transmission. Exclusive innovative PCB layout and quality components ensure longevity and deliver fluid visual performance.
Price List
Sales Department - Pan Pan@eachinled.com
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications. Feel free to contact us.
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
