FW-297 P2.976 LED Video Panel - 500 x 500mm
10% OFF for orders over $3000
5% OFF for orders over $2000
3% OFF for orders over $1000
DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days
Free Shipping on Orders Over $500

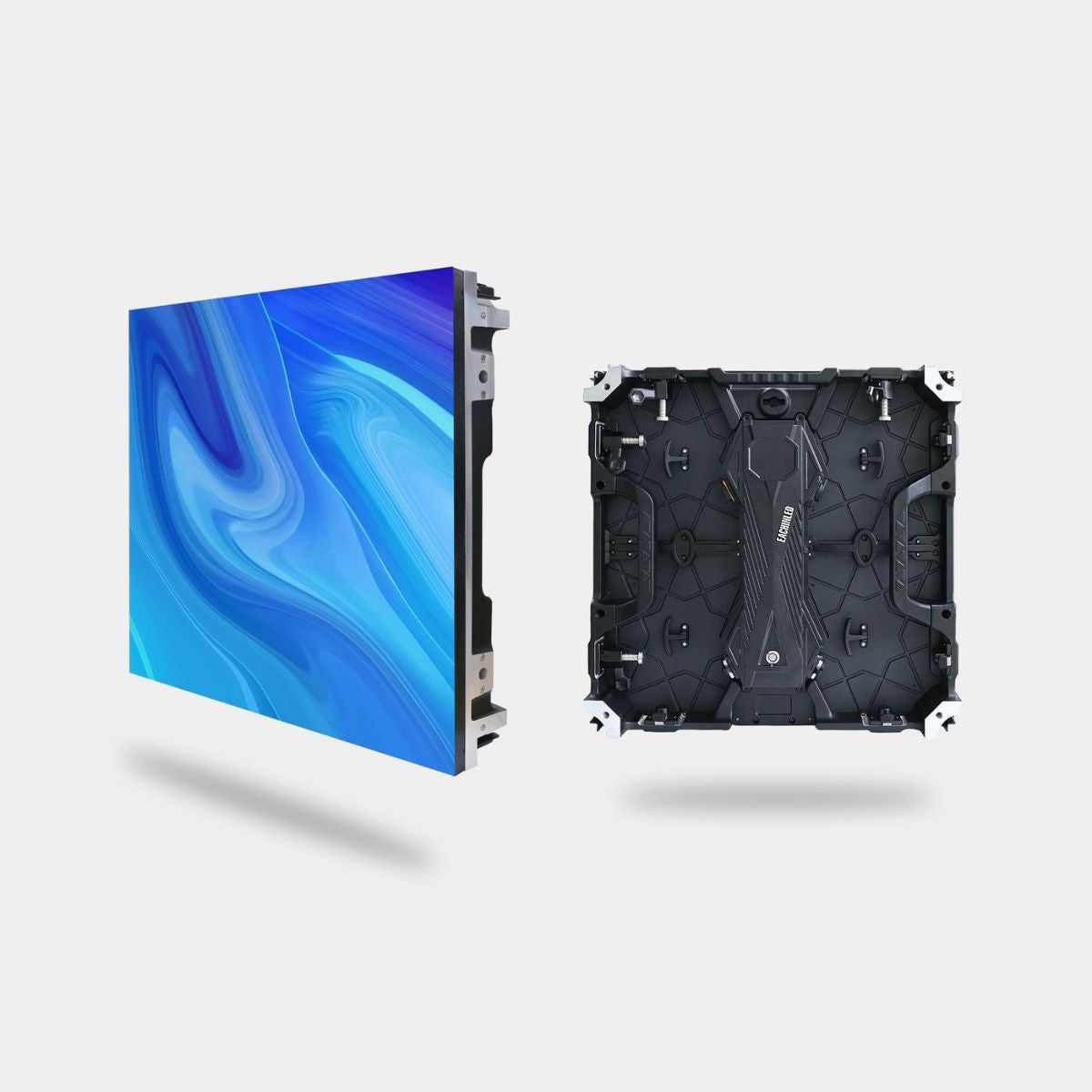

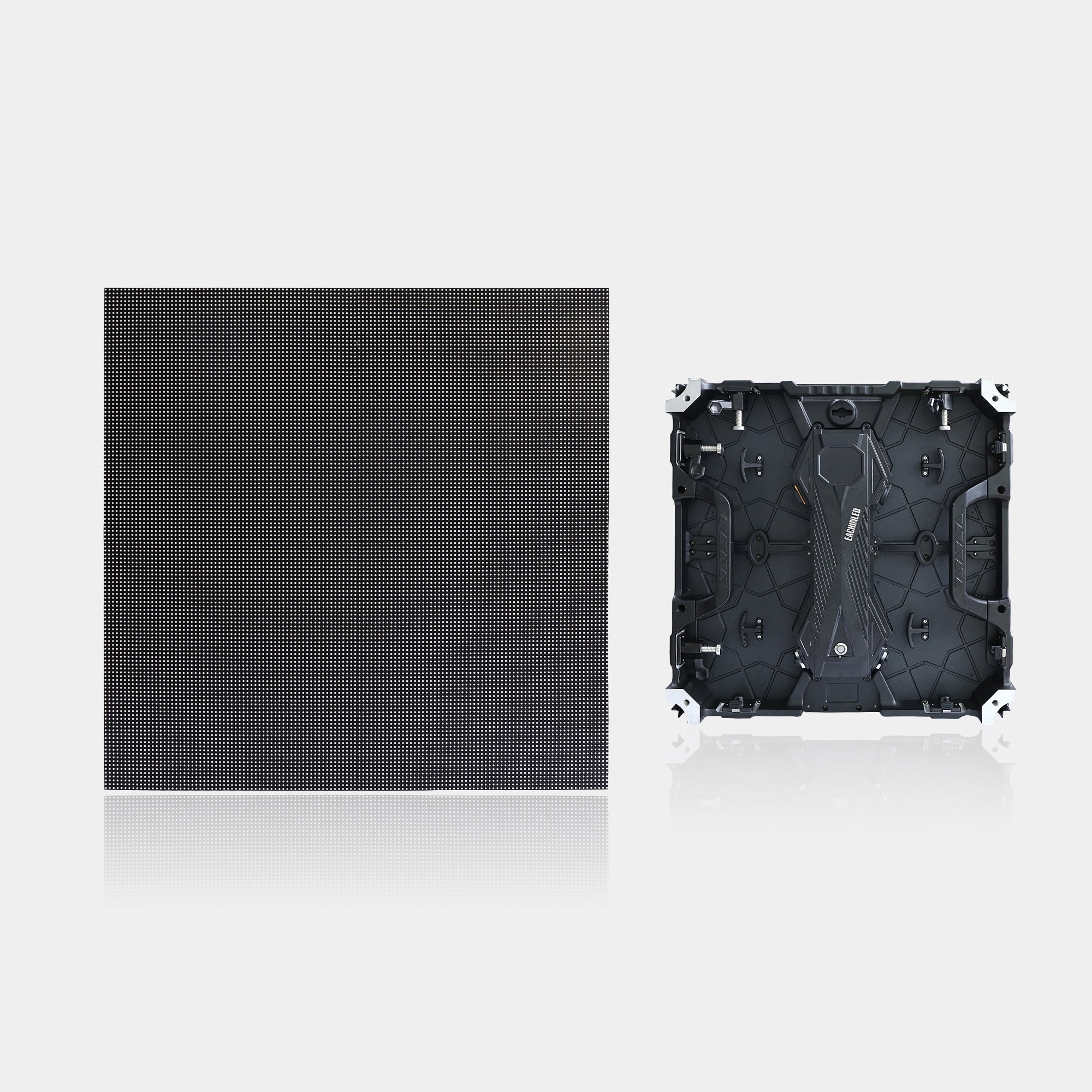

The FW-297 is our P2.976 (500 x 500mm) LED video panel that is a cost-effective, high-performance solution looking for crystal clear resolution with a range of dynamic flexibility. A 2.976mm pixel pitch that uses high-performance, flicker-free LEDs deliver HD clarity in a wide range of touring and permanent install applications.
Request a quote >>
%20LED%20video%20panel%20that%20is%20a%20cost-effective,%20high-performance%20solution%20looking%20for%20crystal%20clear%20resolution%20with%20a%20range%20of%20dynamic%20flexibility.%20A%202.976mm%20pixel%20...){kind=link}
Choose options
Explore ForWin™️ FW Series
FW-297
- LED Video Panels -
Panel Name: FW-297
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 168
Pixel Quantity: 28,224 Pixels
Pixel Density: 112,896 Pixels/㎡

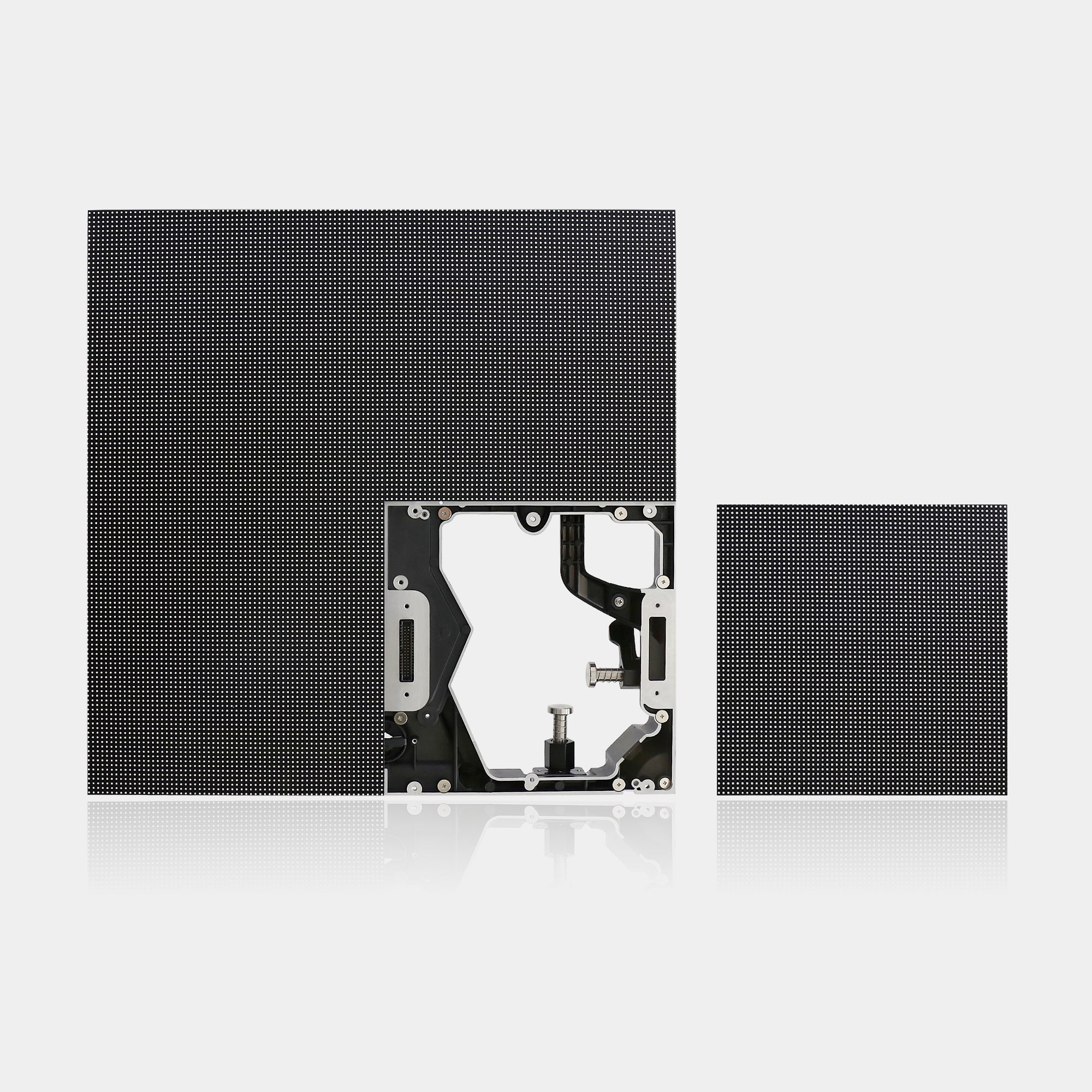

LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore ForWin™️ FW Series
FW-391
- LED Video Panels -
Panel Name: FW-391
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 128
Pixel Quantity: 16,384 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore ForWin™️ FW Series
FW-481
- LED Video Panels -
Panel Name: FW-481
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 104
Pixel Quantity: 10,816 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 80W/Panel
Max. Power Consumption: 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
Full-Scale Flexibility
Rigging hardware for flying and ground stacking integrated into a lightweight frame for quick deployment with standard concave/convex curving expanding design flexibility.
Lightweight Touring
Reduce weight load and shipping costs with die-casting aluminum LED panels. Save setup and labor time with dynamic deployment options.
Modular Design
Ribbon-cable-free designs for enhanced stability. Modular components for easy field serviceability and minimal downtime.
Indoor & Outdoor
A LED display solution with curated LEDs is suitable for indoor and outdoor environments without compromising image quality at all brightness levels. Vivid visibility in light or dim environments with IP65-rated protection. Ultra-high brightness options are available.
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications. Feel free to contact us.
High-performance HDR technology
Stellar visual performance
Built around NovaStar™ A8s receiving cards, Forwnin panels offer HDR10 & HLG support, automatic module calibration, image rotation, and an advanced 3-in-1 SMD LED configuration.
High-performance LED video display systems can help rental houses and production providers gain a competitive advantage by offering advanced LED display solutions that meet and exceed the challenging requirements of high-profile, critical events in any environment.

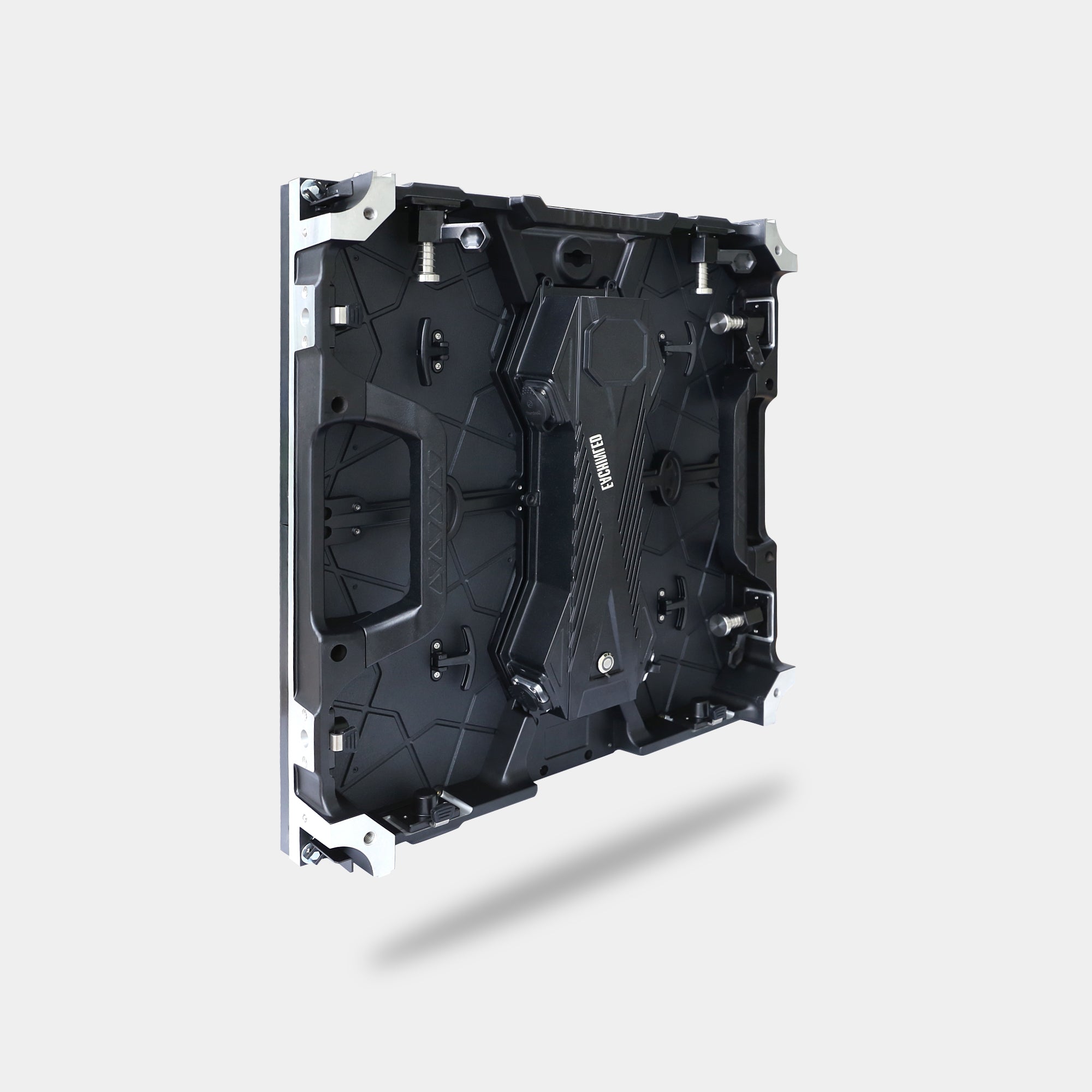

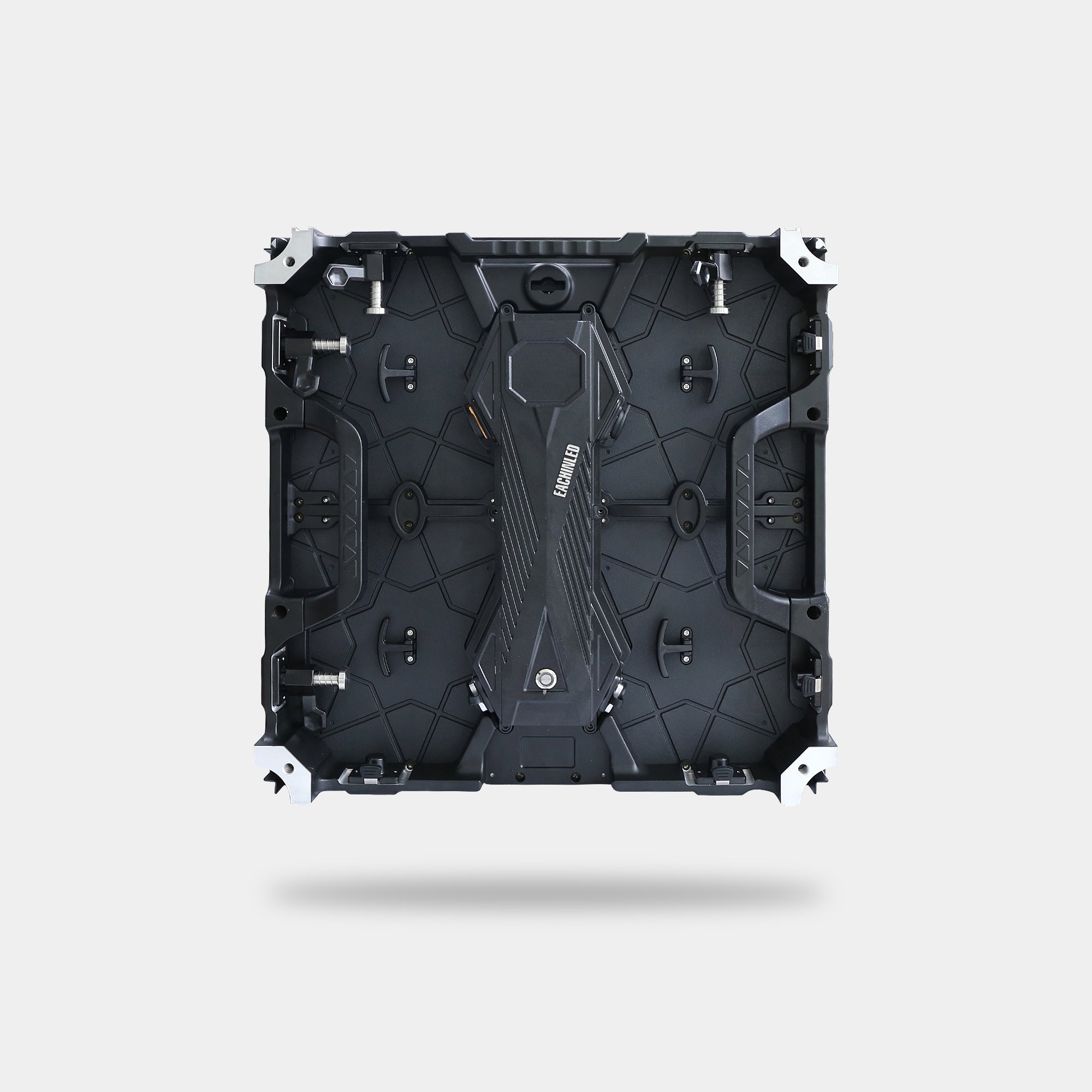

Robust cabinet, front, and rear serviceability
Muscle and flexibility
Robust cabinets from integrated-formed processes are designed to be portable and scalable with indoor and outdoor options to accommodate any event application in any rugged environment. A front and rear serviceable LED panel can offer multiple deployment options that ensure labor efficiency and flexibility to accommodate an array of stage and set designs.

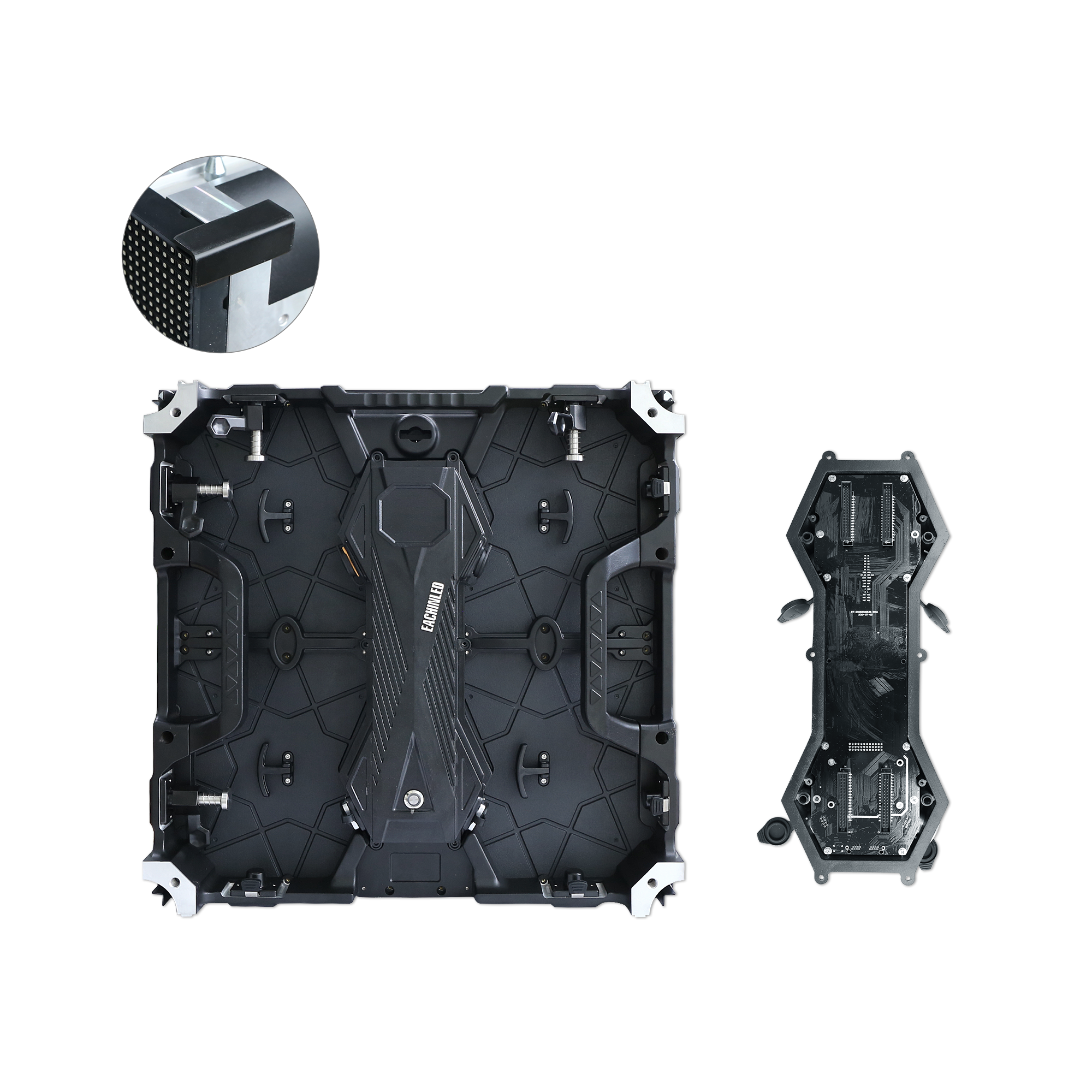

Direct module connection
Top-notch design and reliability
The back cover is designed as a full plugging mode. All power supply and signal failure problems can be solved by quickly replacing the whole back cover, which meets the current needs of the site.
The cable-free design significantly increases stability for power and signal transmission. Exclusive innovative PCB layout and quality components ensure longevity and deliver fluid visual performance.
EACHINLED
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
