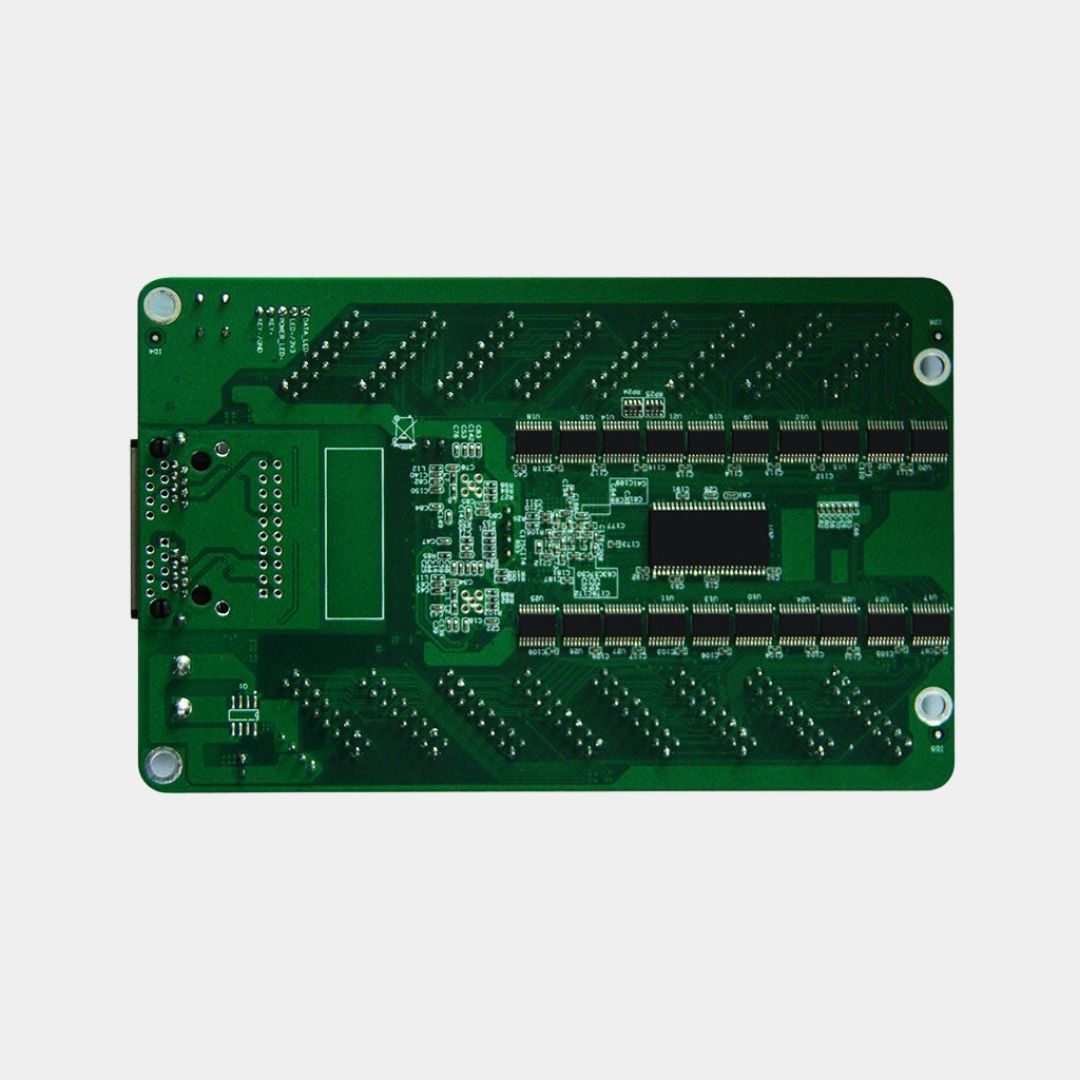

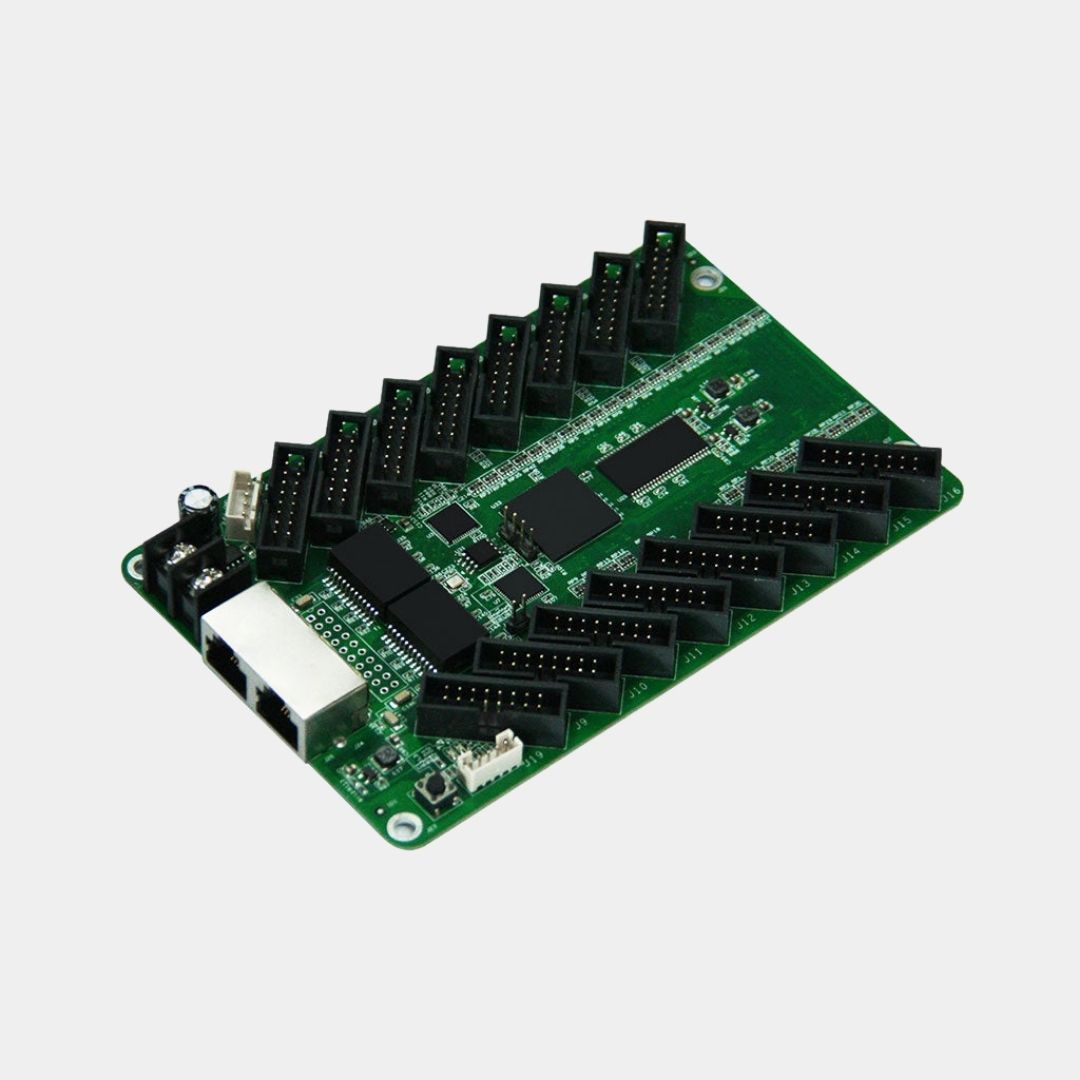

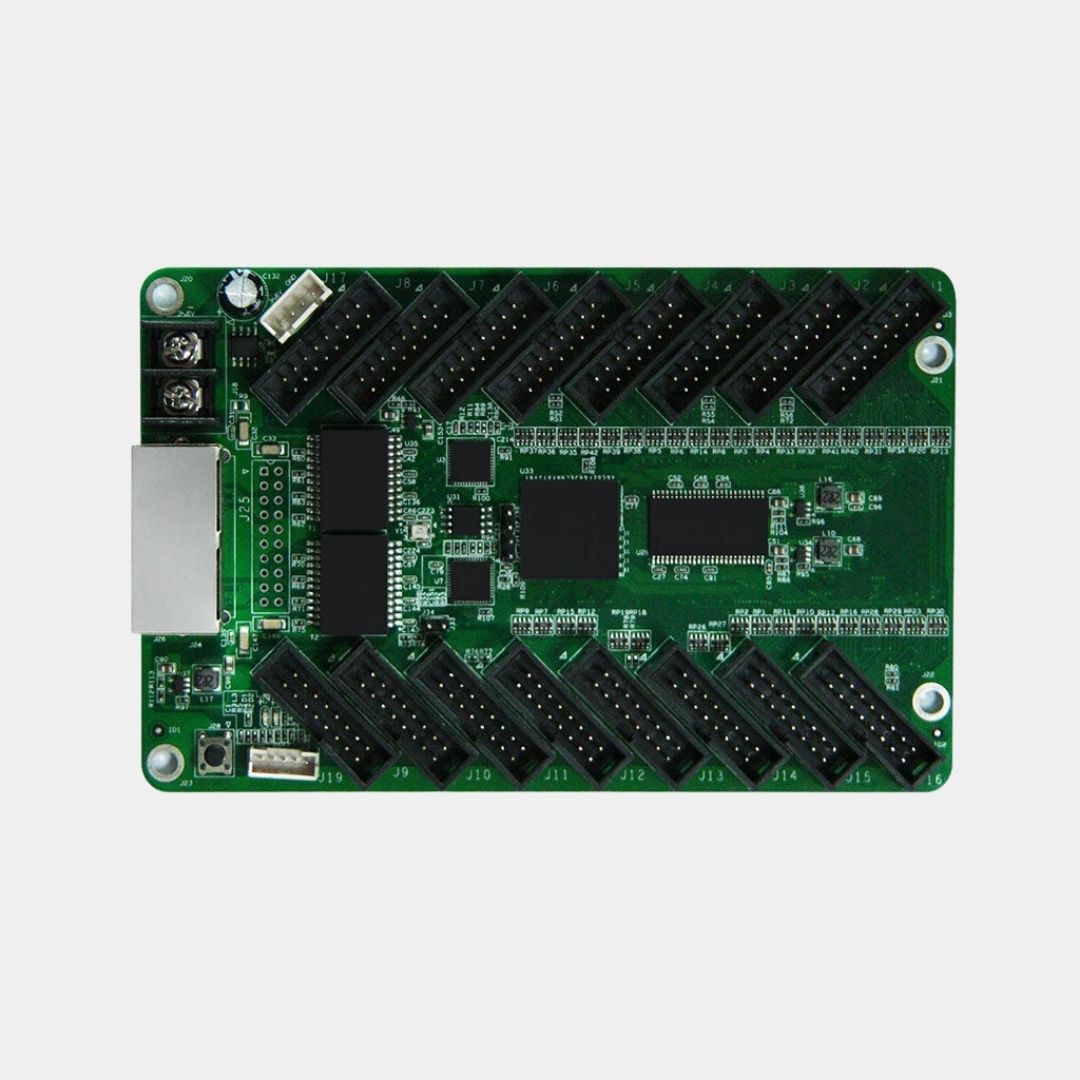

Colorlight 5A-75E

1) 5A-75E receiving card was designed for cost savings for customers to reduce fault points and fault probability.

2) 5A-75 receiving card, based on the 5A receiving card, integrate the most common HUB75 to ensure a high-quality display of the premise, more reliable, more worry, and more affordable.

1) Integrated HUB75 does not need an adapter plate. More convenient and less costly.

2) Reduce the plug connectors, reduce malfunction, and lower fault probability.

3) Superior display quality: high refresh, high intensity, high brightness with the conventional chips

4) Superior compatibility: suitable for all types of display modules of the mainstream products

5) The use of more advanced algorithms so that the receiving card to maximize the use of resources to improve display quality

6) Support for high-precision point-by-point correction in the brightness and the color space

7) Support for large-area display

8) Professional design and strict production testing to ensure high quality and
reliable

9) Superior versatile, supporting Gigabit Ethernet, T7 sending cards, Q7 HD transmitter, network video system, etc. all conventional sending equipment

1) Size
- 143* 93mm

2) Input voltage
- DC 3.3V-6V

3) Rated current
- 0.6A

4) Rated power
- 3W

5) Storage and transport temperature
- -50°C~125°C

6) Operating Temperature
- -20°C~80°C

7) Body static resistance
-2KV

8) Weight
- 100g
