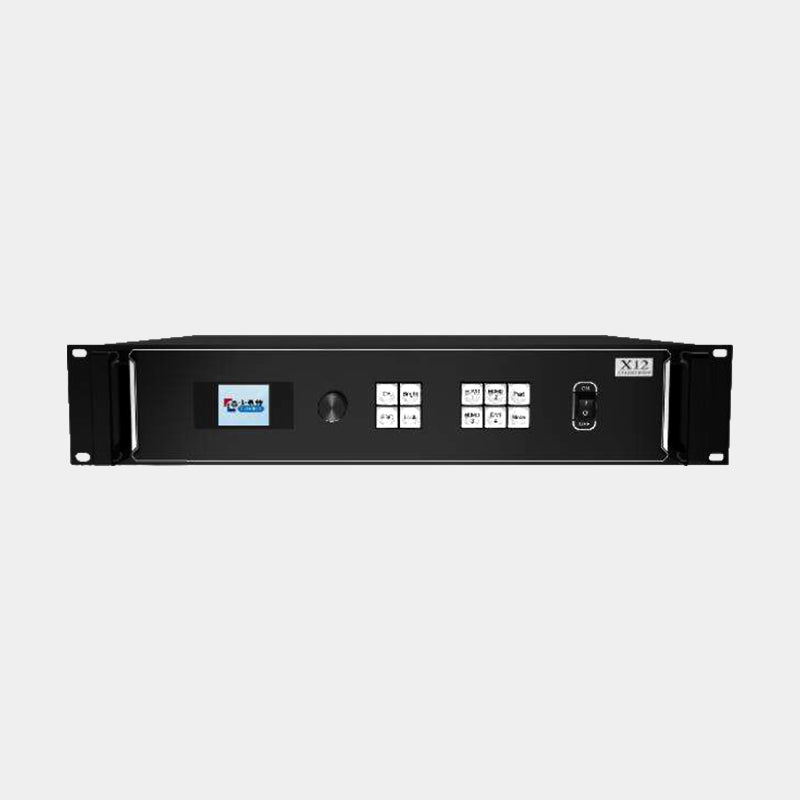

Colorlight X12

Name: Colorlight X12
Brand: Colorlight
SKU: ET-2307-LVP-X12
Price: 1000.00 USD
Availability: InStock

$1,000.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

🔘All-in-One Video Controller / Processor
🔘Max Input Resolution:1920×1200@60Hz
🔘 Max width 8192 pixels, Max high 4096 pixels
🔘 Loading Capacity: 7.2 million pixels

Colorlight X8 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs. It supports digital ports (DVI and SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and five-layers displays.

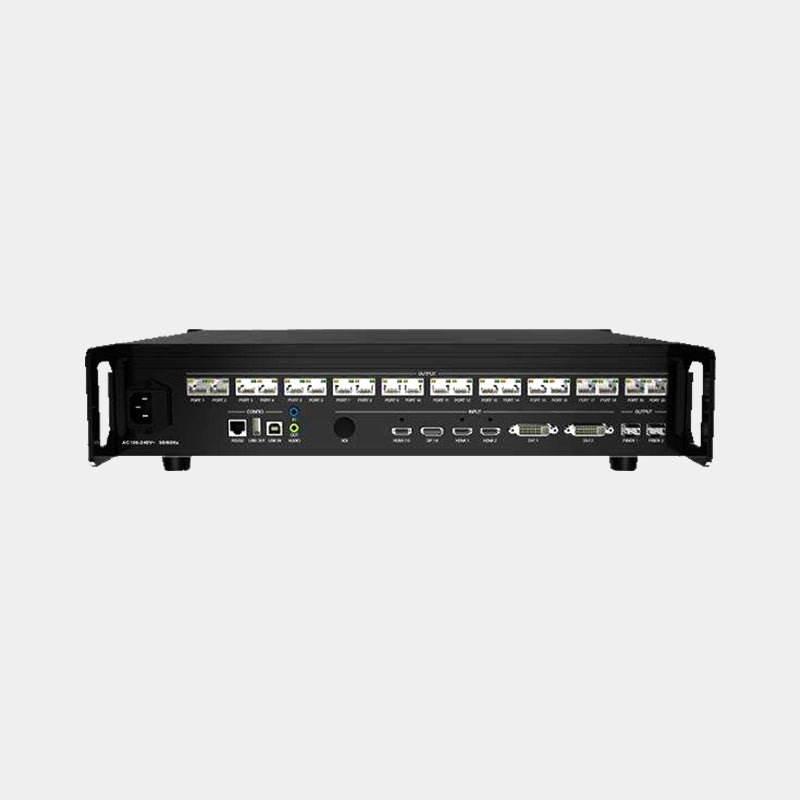

Connectors

- Inputs -
2 x SDI
1 x HDMI
4 x DVI

- Outputs -
16 x Gigabit Ethernet ports

Control

1 x USB_IN
1 x USB_OUT
1 x Ethernet Port
1 x Genlock IN + LOOP

Features

1. Supports various digital signal ports, including 1×HDMI2.0,4×DVI,2× SDI

2. Supports input resolutions up to 4096×2160@60Hz

3. Loading capacity: 8.88million, maximum width/height:8192pixels

4. Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution

5. Supports seven-picture displays and can adjust the location and size freely

6. SupportsHDCP2.2

7. Dual USB2.0 for high-speed configuration and easy cascading among controllers

8. Supports brightness and chromaticity adjustments

9. Supports improved gray-scale performance at low brightness

10. Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight
