FA-260 P2.604 LED Video Panel - 500 x 500mm
10% OFF for orders over $3000
5% OFF for orders over $2000
3% OFF for orders over $1000
DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days
Free Shipping on Orders Over $500
FA-260 is our P2.604 (500 x 500mm) LED video panel. FA series is designed for event rentals and can be used indoors and outdoors. Our displays can be configured and customized for your needs, whether a small exhibition or a significant sporting event.
Request a quote >>
%20LED%20video%20panel.%20FA%20series%20is%20designed%20for%20event%20rentals%20and%20can%20be%20used%20indoors%20and%20outdoors.%20Our%20displays%20can%20be%20configured%20and%20customized%20for%20your%20needs,%20wheth...){kind=link}
Choose options
Explore FA Series
FA-260
- LED Video Panels -
Panel Name: FA-260
Pixel Configuration: NationStar®️ SMD1515
Pixel Pitch: 2.604 mm
Resolution: 192 x 192
Pixel Quantity: 36,864 Pixels
Pixel Density: 147,456 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 96 x 96
Pixel Quantity: 9,216 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/24
Optimal Viewing Distance: 9 ~ 85 ft (2.6 ~ 26.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 75 W/Panel
Max. Power Consumption: 170 W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Front) / IP21 (Rear)
Warranty: 5 Years
Explore FA Series
FA-297
- LED Video Panels -
Panel Name: FA-297
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 168
Pixel Quantity: 28,224 Pixels
Pixel Density: 112,896 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore FA Series
FA-391
- LED Video Panels -
Panel Name: FA-391
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 128
Pixel Quantity: 16,384 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore FA Series
FA-481
- LED Video Panels -
Panel Name: FA-481
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 104
Pixel Quantity: 10,816 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 80W/Panel
Max. Power Consumption: 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
Explore FA Series

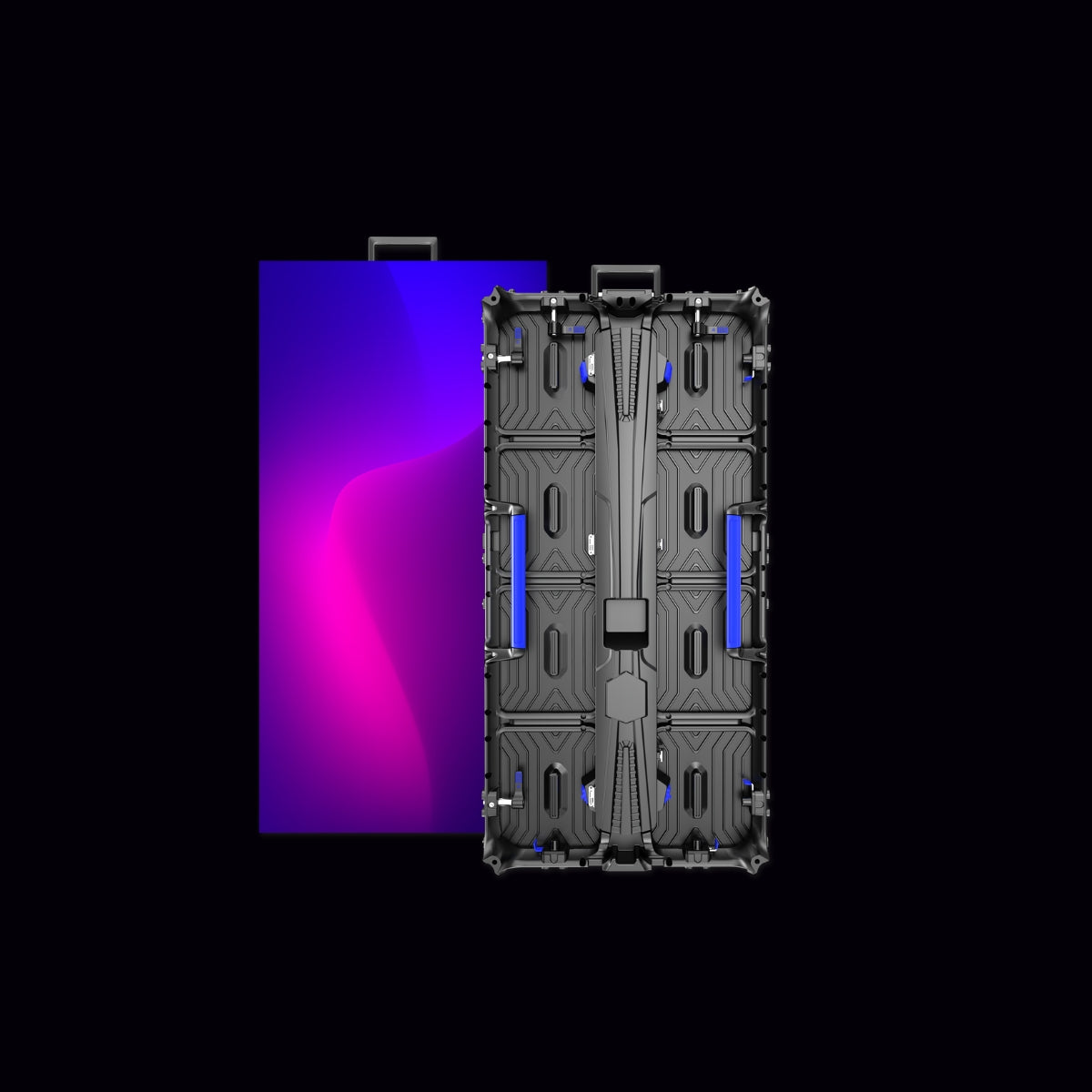

FA-260T
- LED Video Panels -
Panel Name: FA-260T
Pixel Configuration: NationStar®️ SMD1515
Pixel Pitch: 2.604 mm
Resolution: 192 x 384
Pixel Quantity: 73,728 Pixels
Pixel Density: 147,456 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 96 x 96
Pixel Quantity: 9,216 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/24
Optimal Viewing Distance: 9 ~ 85 ft (2.6 ~ 26.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 150 W/Panel
Max. Power Consumption: 340 W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Front) / IP21 (Rear)
Warranty: 5 Years
Explore FA Series
FA-297T
- LED Video Panels -
Panel Name: FA-297T
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 336
Pixel Quantity: 56,448 Pixels
Pixel Density: 112,896 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 150 / 160W/Panel
Max. Power Consumption: 340 / 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore FA Series
FA-391T
- LED Video Panels -
Panel Name: FA-391T
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 256
Pixel Quantity: 32,768 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 150 / 160W/Panel
Max. Power Consumption: 340 / 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore FA Series
FA-481T
- LED Video Panels -
Panel Name: FA-481T
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 208
Pixel Quantity: 21,632 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 160W/Panel
Max. Power Consumption: 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
Full-Scale Flexibility
Rigging hardware for flying and ground stacking integrated into a lightweight frame for quick deployment with standard concave/convex curving expanding design flexibility.
Lightweight Touring
Reduce weight load and shipping costs with die-casting aluminum LED panels. Save setup and labor time with dynamic deployment options.

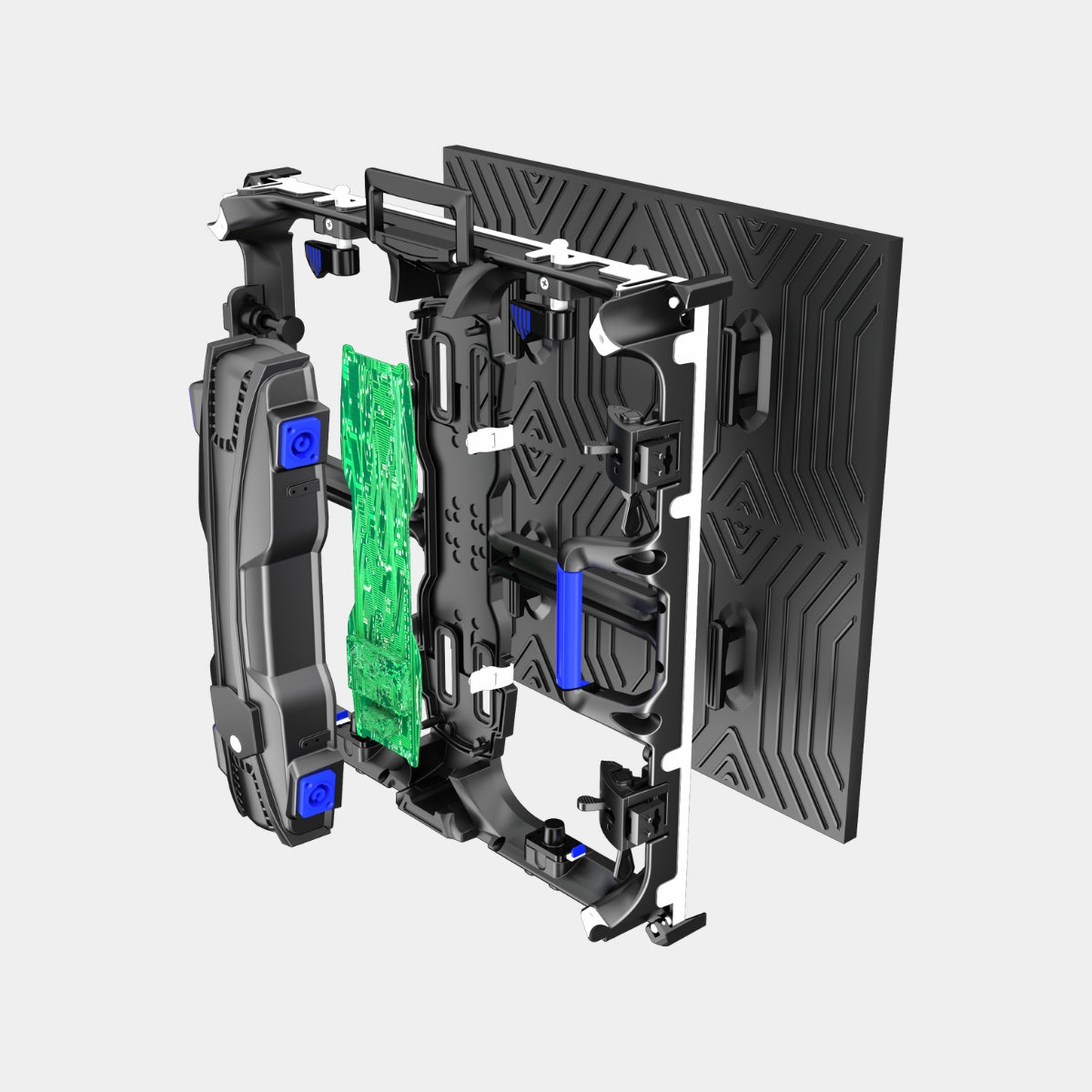

Modular Design
Ribbon-cable-free designs for enhanced stability. Modular components for easy field serviceability and minimal downtime.
Indoor & Outdoor
A LED display solution with curated LEDs is suitable for indoor and outdoor environments without compromising image quality at all brightness levels. Vivid visibility in light or dim environments with IP65-rated protection. Ultra-high brightness options are available.
NEED HELLP?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications.
Advanced Image Processing
Optical Performance
FA series (500 x 500/1000mm) LED panels are designed for events rentals and can be used to both indoors and outdoors. Make your live events engaging for attendees using eye-catching LED displays. Our displays can be configured and customized for your needs, whether a small exhibition or a significant sporting event.
Optimal Functionality

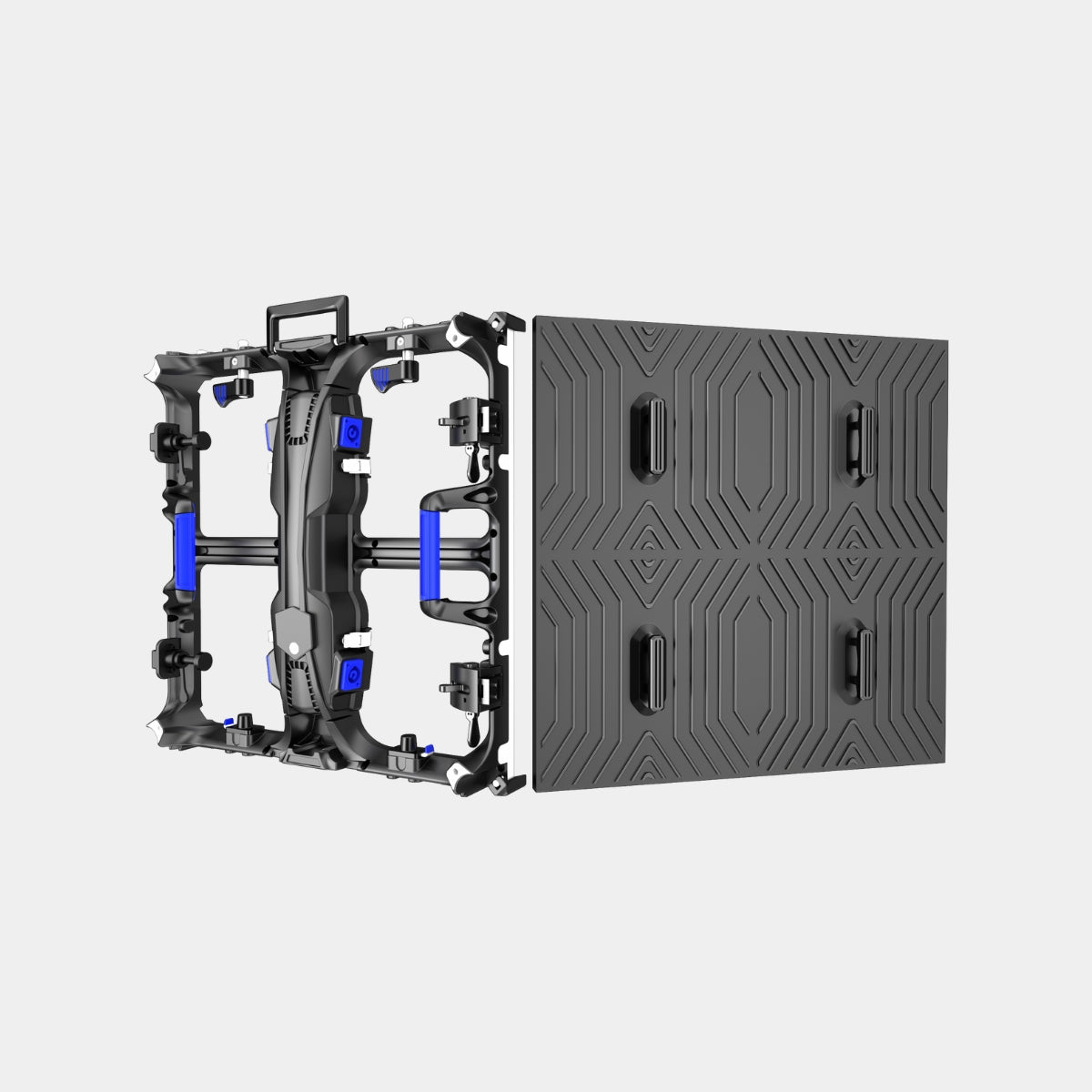

Detachable Power Supply
Internal components integrated into a fully detachable quick-swap power control housing for minimal down-time and simplified user-level servicing.
Optimal Functionality
Creative Flexibility
Optional curving solutions for unified creative deployment. Cross-compatible panel sizes with hanging and ground stacking capabilities.
EACHINLED
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
