Linsn MC801

Name: Linsn MC801
Brand: Linsn
SKU: ET-2205-LCS- MC801
Price: 148.00 USD
Availability: InStock

$148.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

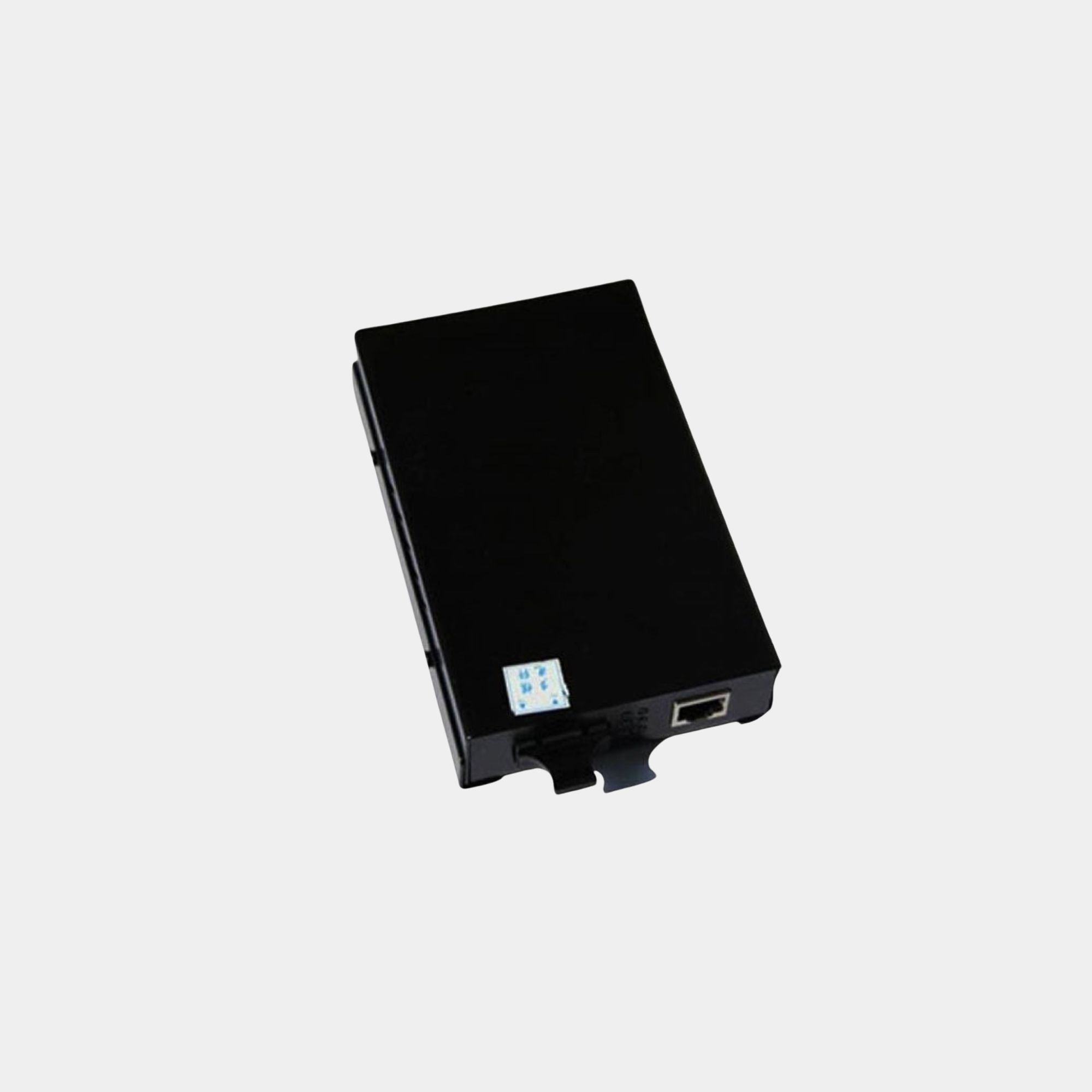

MC801 is a fiber converter released by Linsn with multi mode for LED display. The LED display control signal can be transmitted to longer distances to ensure the integrity of the signal so that the whole LED display system is more stable, reliable and convenient.

Description

1) Sending card RL45 output to TX converter

2) TX converter to RX Converter with Optical Fiber

3) RX convert to receiving card RL45

Features

1) Data port
- International standard network cable connector

2) Optical fiber port
- SC Model

3) Multi-mode transmission distance
- 500M
- Fiber: 50/125

4) Single-mode transmission distance
- 20KM
- Fiber: 9/125(transmission distance about 10KM)or 5/125

5) Wavelength of multi-mode
- 850nm

6) Light power
- -5 ~ -14dBm

7) Sensitivity
- -23dBm

8) Wavelength of single-mode
- 1310nm

9)Light power
- -3 ~ -10dBm

10) Sensitivity
- -23dBm

11) Optical Fiber with 2 cores or above
