Explore SD Series

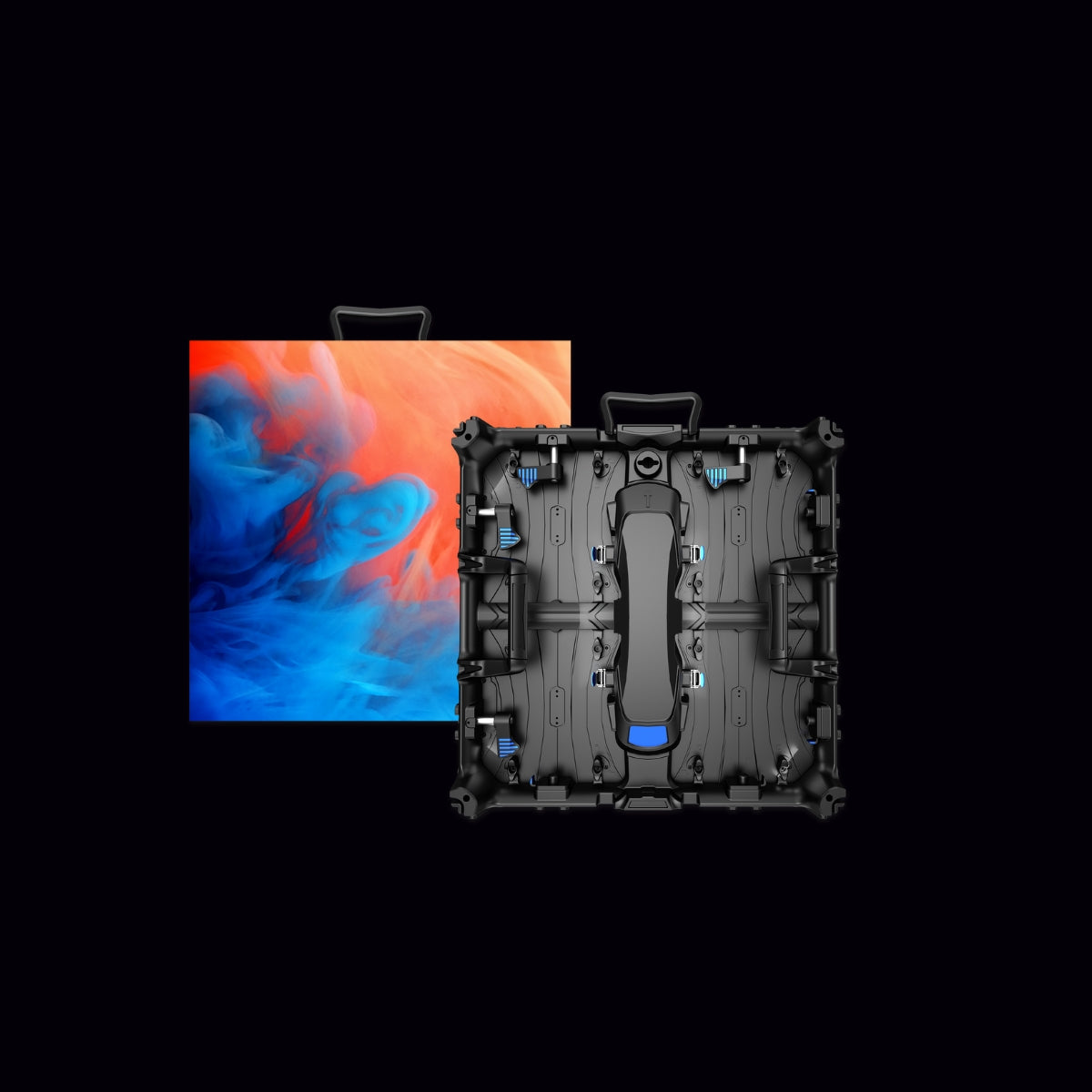

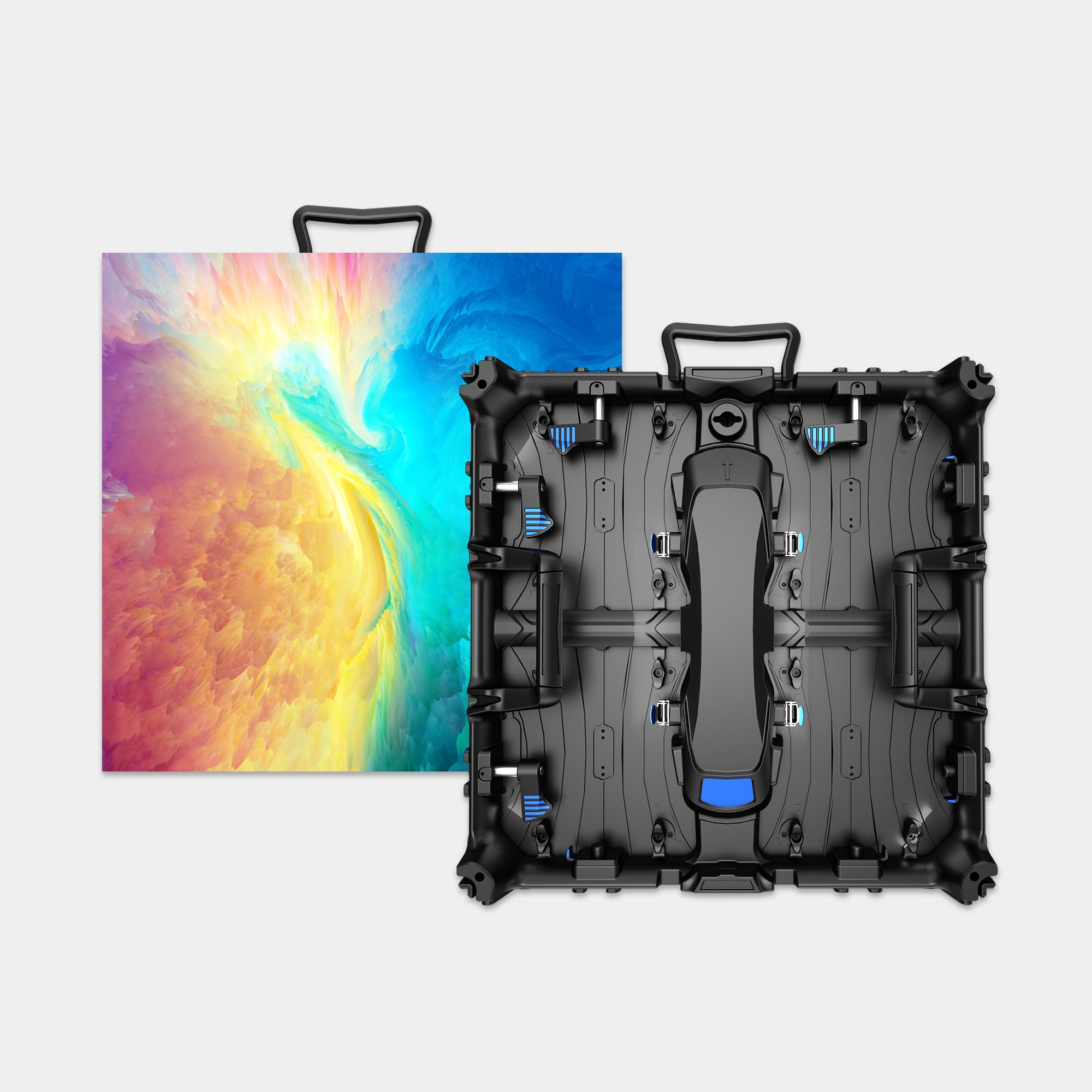

SD-260
- LED Video Panels -
Panel Name: SD-260
Pixel Configuration: NationStar®️ SMD1515
Pixel Pitch: 2.604 mm
Resolution: 192 x 192
Pixel Quantity: 36,864 Pixels
Pixel Density: 147,456 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 96 x 96
Pixel Quantity: 9,216 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/24
Optimal Viewing Distance: 9 ~ 85 ft (2.6 ~ 26.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 75 W/Panel
Max. Power Consumption: 170 W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Front) / IP21 (Rear)
Warranty: 5 Years
Explore SD Series
SD-297
- LED Video Panels -
Panel Name: SD-297
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 168
Pixel Quantity: 28,224 Pixels
Pixel Density: 112,896 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore SD Series
SD-391
- LED Video Panels -
Panel Name: SD-391
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 128
Pixel Quantity: 16,384 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 75 / 80W/Panel
Max. Power Consumption: 170 / 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore SD Series
SD-481
- LED Video Panels -
Panel Name: SD-481
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 104
Pixel Quantity: 10,816 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm)
Weight: 14 lbs (6.6 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 80W/Panel
Max. Power Consumption: 190W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
Explore SD Series

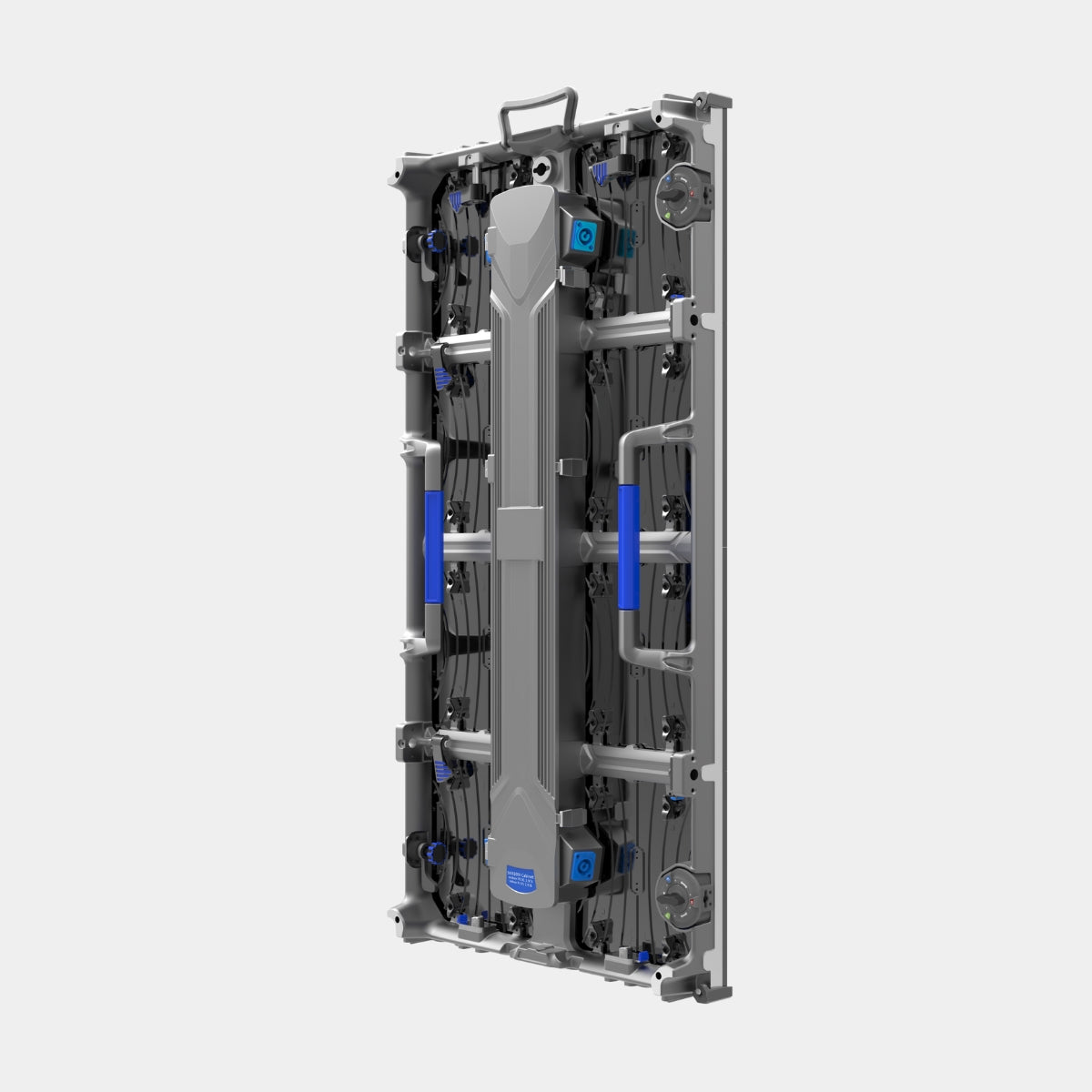

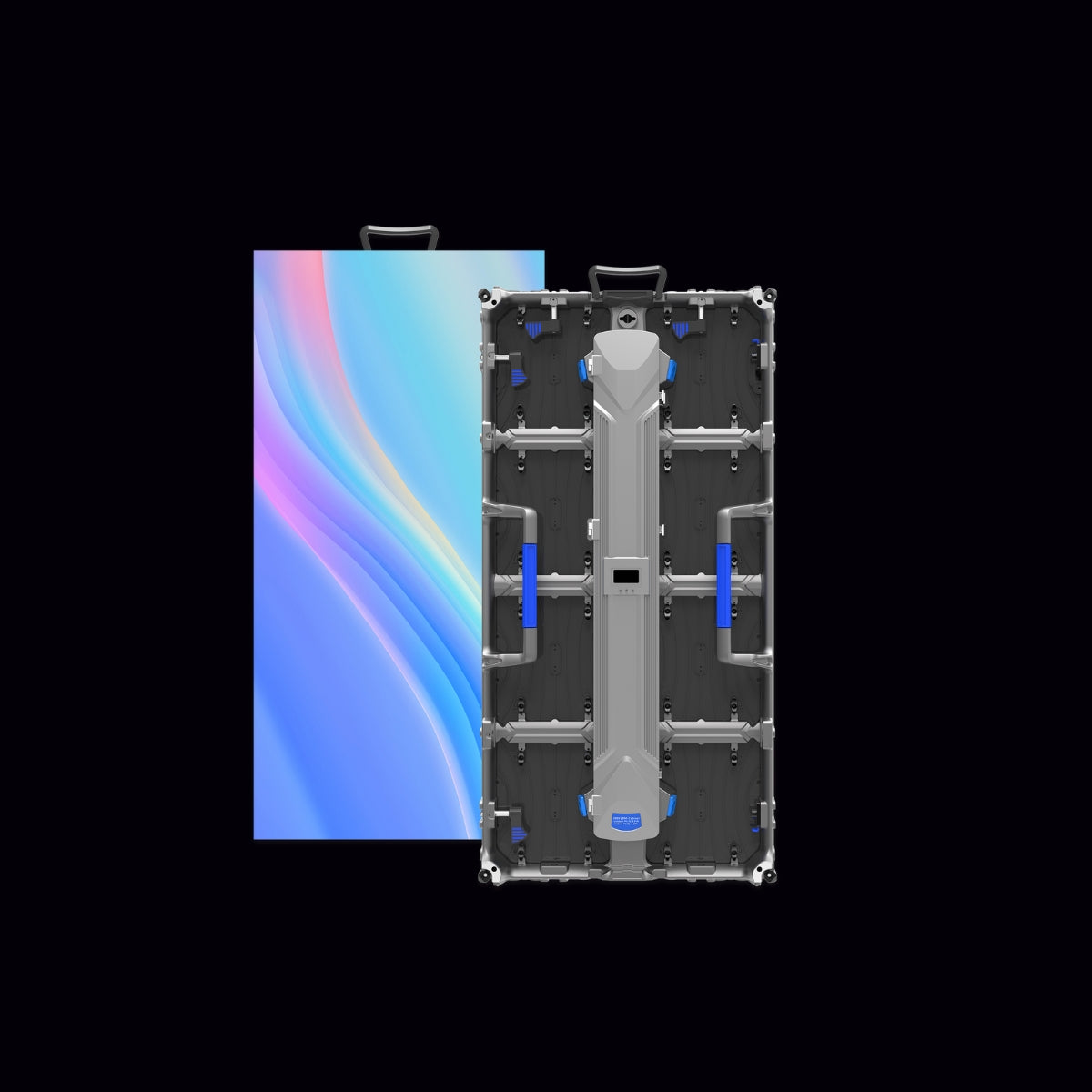

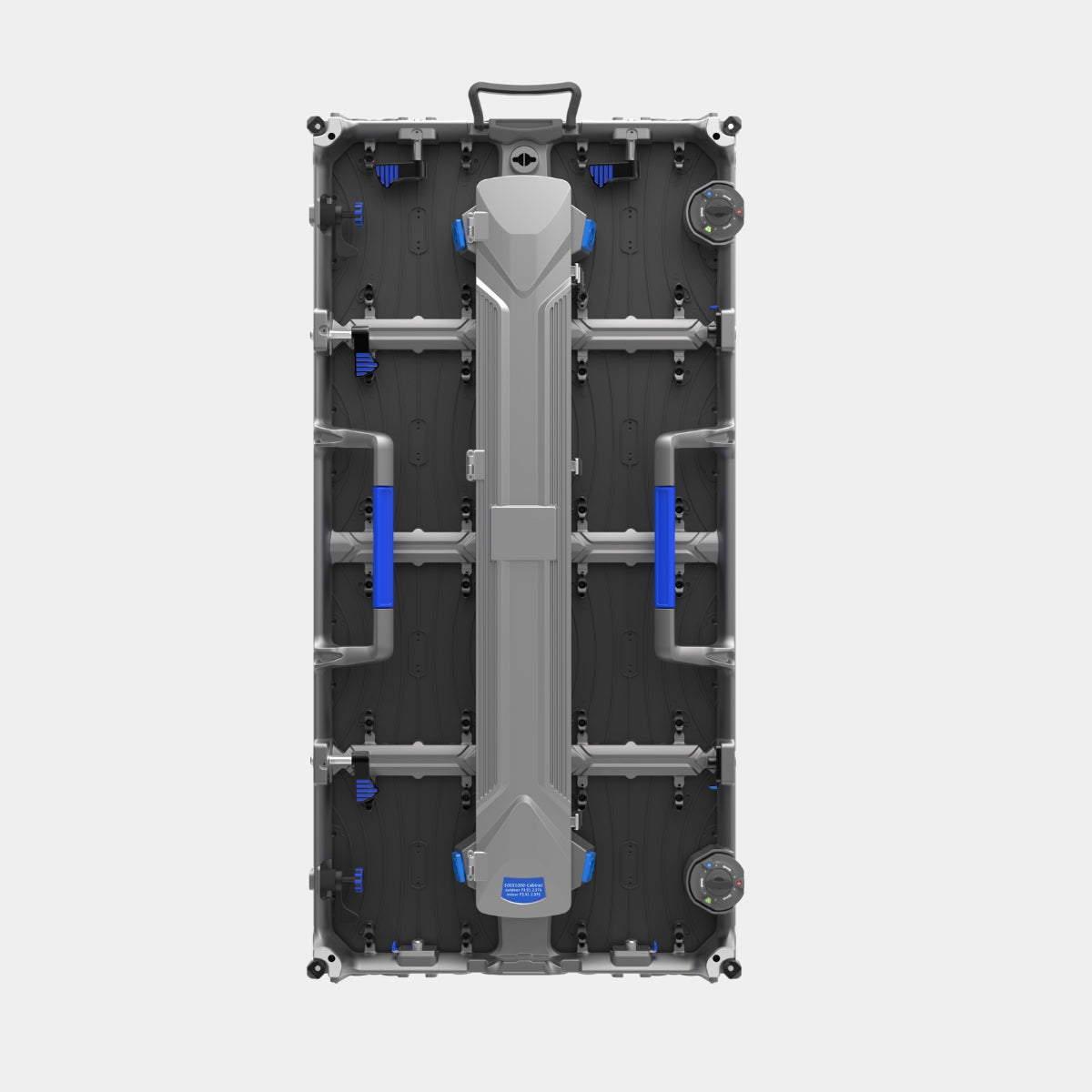

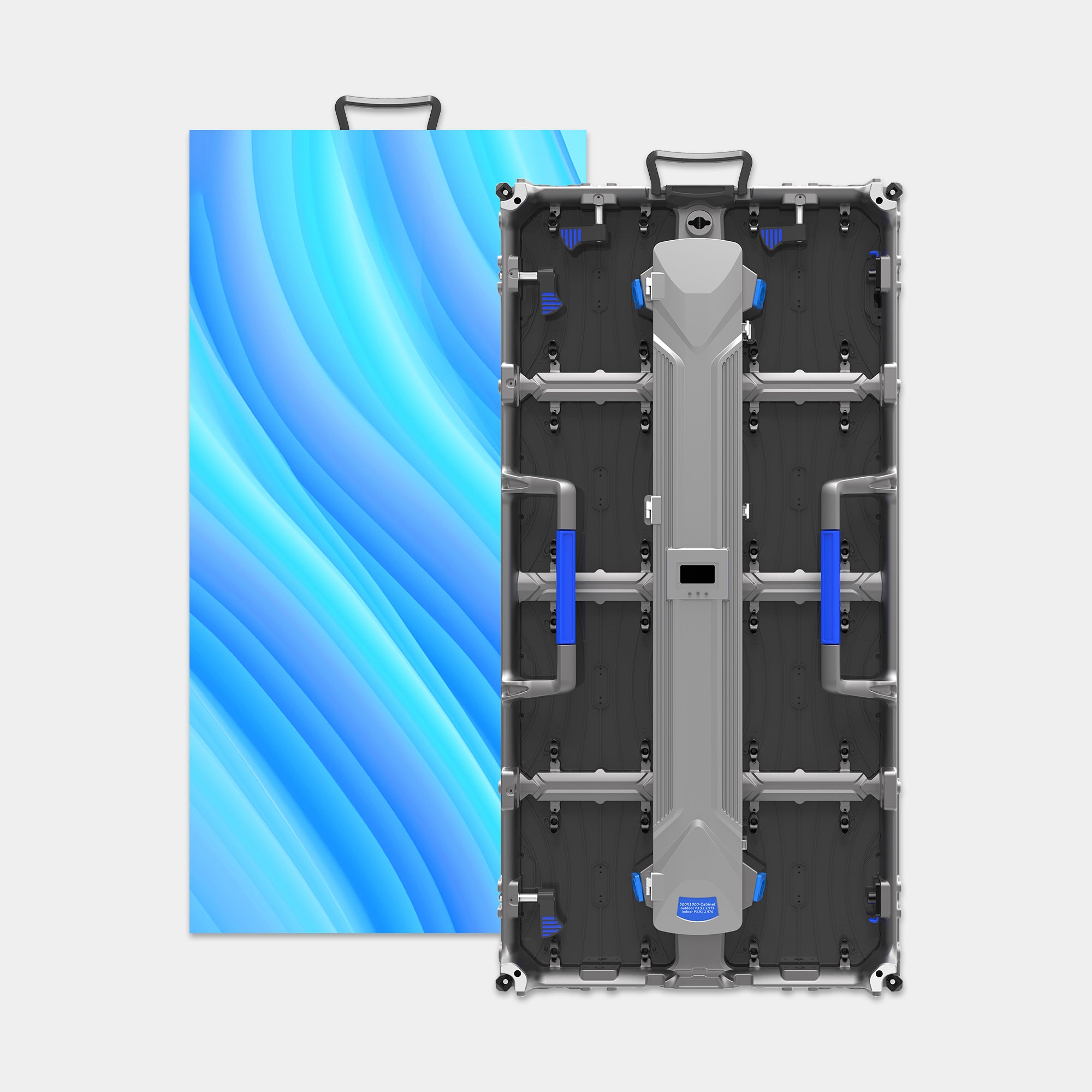

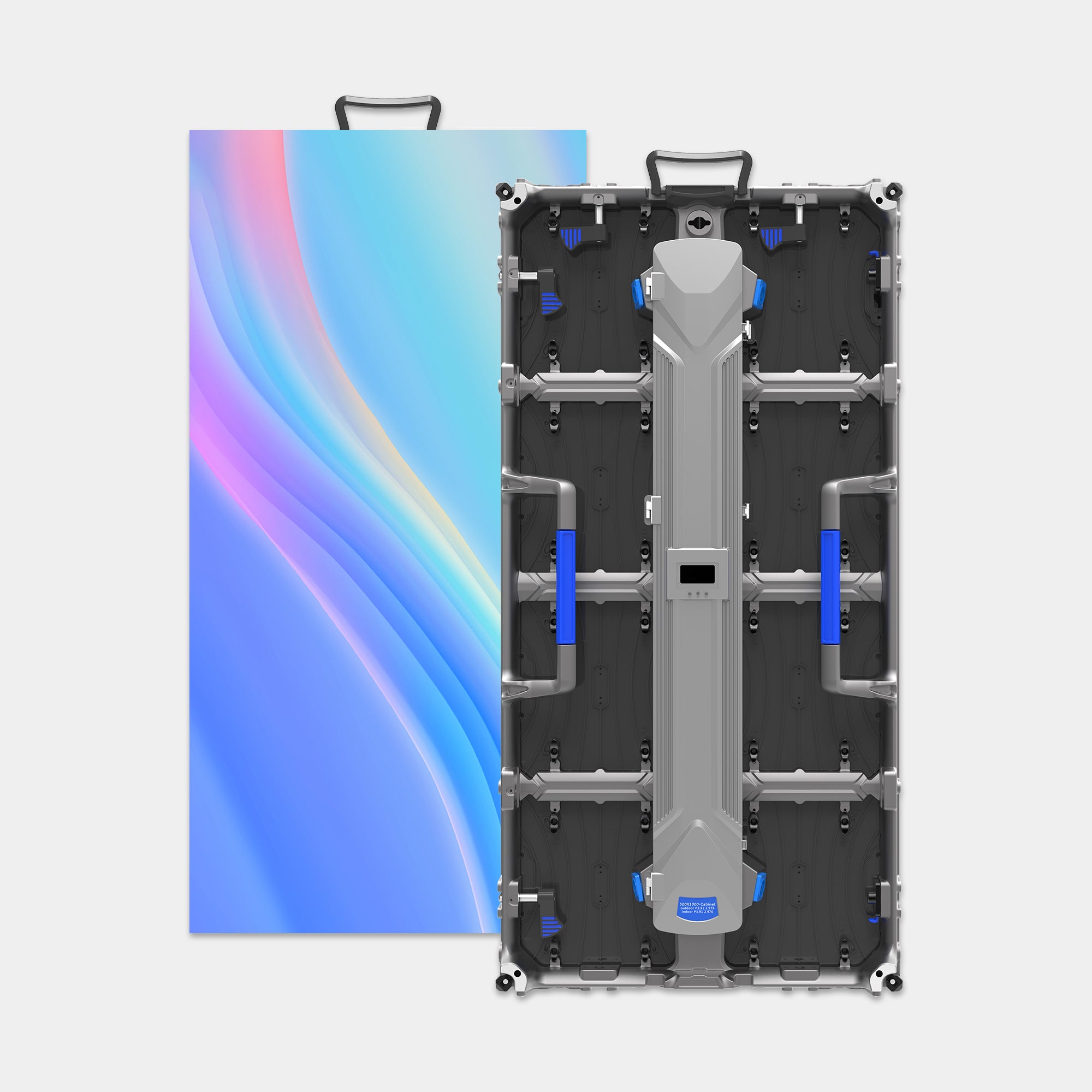

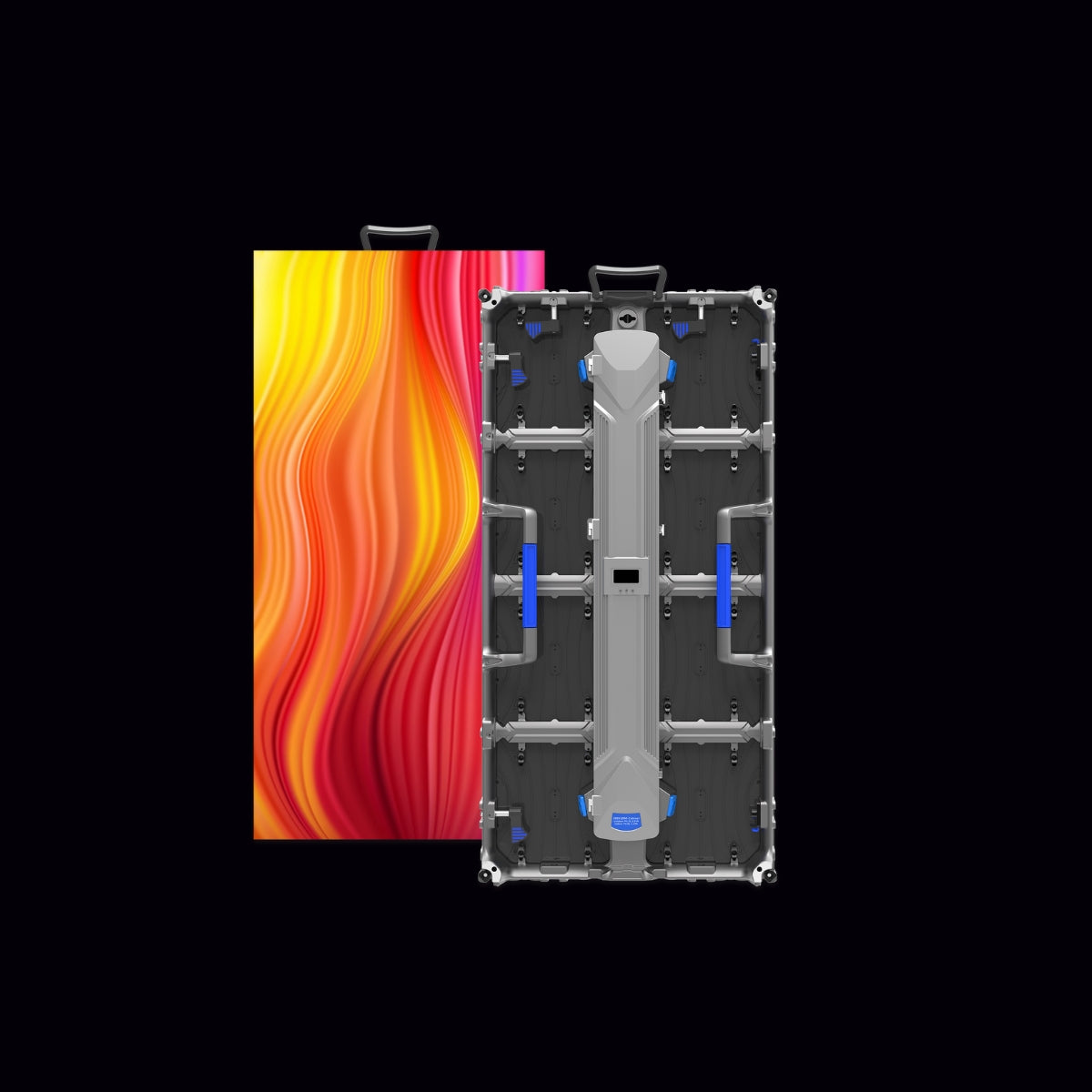

SD-260T
- LED Video Panels -
Panel Name: SD-260T
Pixel Configuration: NationStar®️ SMD1515
Pixel Pitch: 2.604 mm
Resolution: 192 x 384
Pixel Quantity: 73,728 Pixels
Pixel Density: 147,456 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 96 x 96
Pixel Quantity: 9,216 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/24
Optimal Viewing Distance: 9 ~ 85 ft (2.6 ~ 26.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 150 W/Panel
Max. Power Consumption: 340 W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Front) / IP21 (Rear)
Warranty: 5 Years
Explore SD Series
SD-297T
- LED Video Panels -
Panel Name: SD-297T
Pixel Configuration: NationStar®️ SMD1515 / SMD1415
Pixel Pitch: 2.976 mm
Resolution: 168 x 336
Pixel Quantity: 56,448 Pixels
Pixel Density: 112,896 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 84 x 84
Pixel Quantity: 7,056 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/21
Optimal Viewing Distance: 9 ~ 98 ft (3.0 ~ 30.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 150 / 160W/Panel
Max. Power Consumption: 340 / 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore SD Series
SD-391T
- LED Video Panels -
Panel Name: SD-391T
Pixel Configuration: NationStar®️ SMD2020 / SMD1921
Pixel Pitch: 3.91 mm
Resolution: 128 x 256
Pixel Quantity: 32,768 Pixels
Pixel Density: 56,536 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 64 x 64
Pixel Quantity: 4,096 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Outdoor
Receiving Card: NovaStar®️
Brightness: 1,000 nits / 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/16
Optimal Viewing Distance: 13 ~ 131 ft (4.0 ~ 40.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 150 / 160W/Panel
Max. Power Consumption: 340 / 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP43 (Indoor) / IP65 (Outdoor)
Warranty: 5 Years
Explore SD Series
SD-481T
- LED Video Panels -
Panel Name: SD-481T
Pixel Configuration: NationStar®️ SMD1921
Pixel Pitch: 4.81 mm
Resolution: 104 x 208
Pixel Quantity: 21,632 Pixels
Pixel Density: 43,264 Pixels/㎡
LED Tile Quantity: 8 PCS Per Panel (2 x 4)
Material: Aluminum Die Cast
Dimensions: 19.69 x 39.37 x 2.83" (500 x 1000 x 72 mm)
Weight: 29 lbs (13.2 kg)
- LED Tiles -
Resolution: 52 x 52
Pixel Quantity: 2,704 Pixels
Dimensions: 9.84 x 9.84" (250 x 250 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Outdoor
Receiving Card: NovaStar®️
Brightness: 4,500 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 16 bit
Scan Mode: 1/13
Optimal Viewing Distance: 16 ~ 164 ft (5.0 ~ 50.0 m)
View Angle: Horizontal 140° / Vertical 140°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 160W/Panel
Max. Power Consumption: 380W/Panel
Maintenance Type: Front / Rear
Lifespan: 100,000 Hours
IP Rating: IP65
Warranty: 5 Years
STAGE / RENTAL
INDOOR
HIGH REFRESH RATE
PERMANENT INSTALL
LED Video Panel

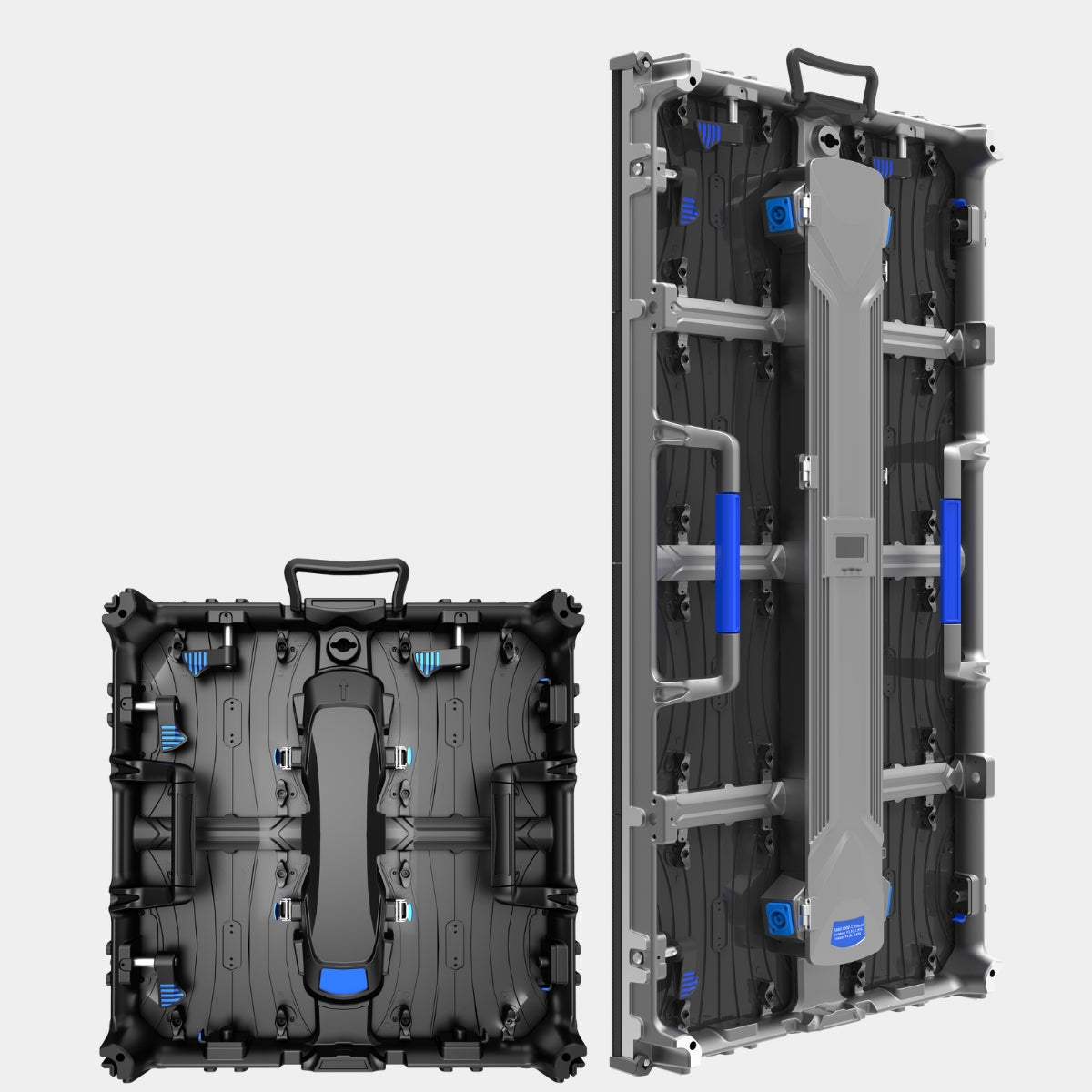

SD Series

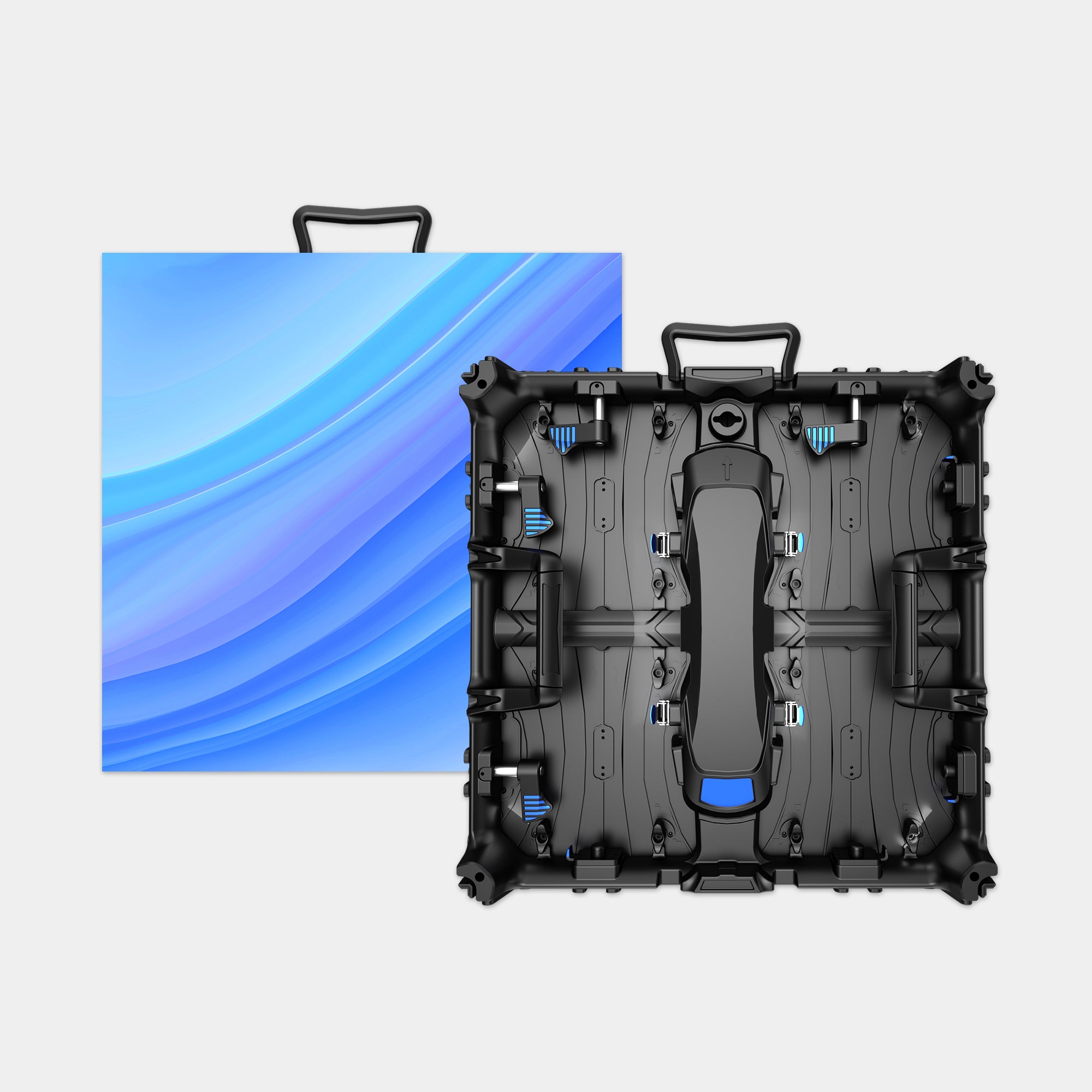

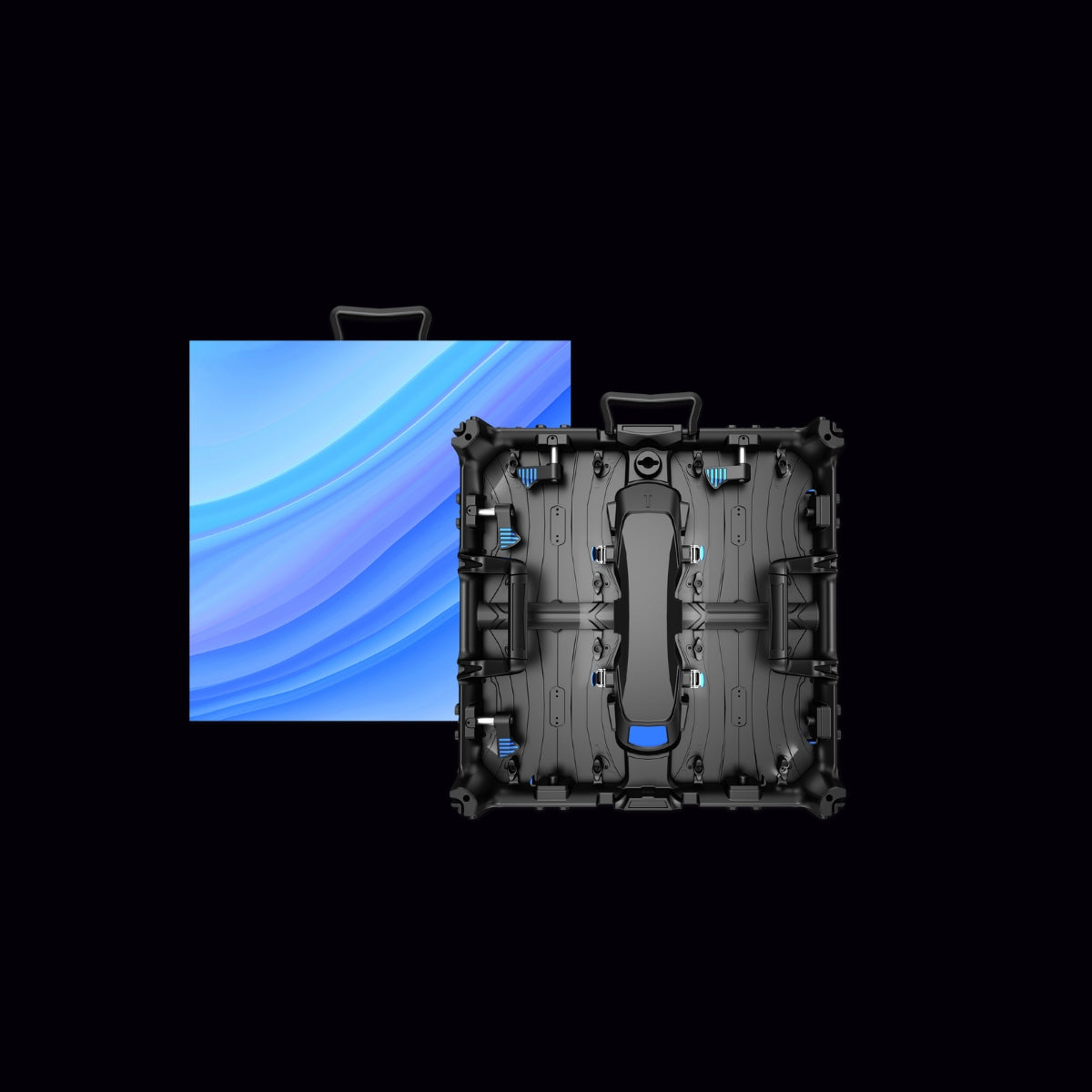

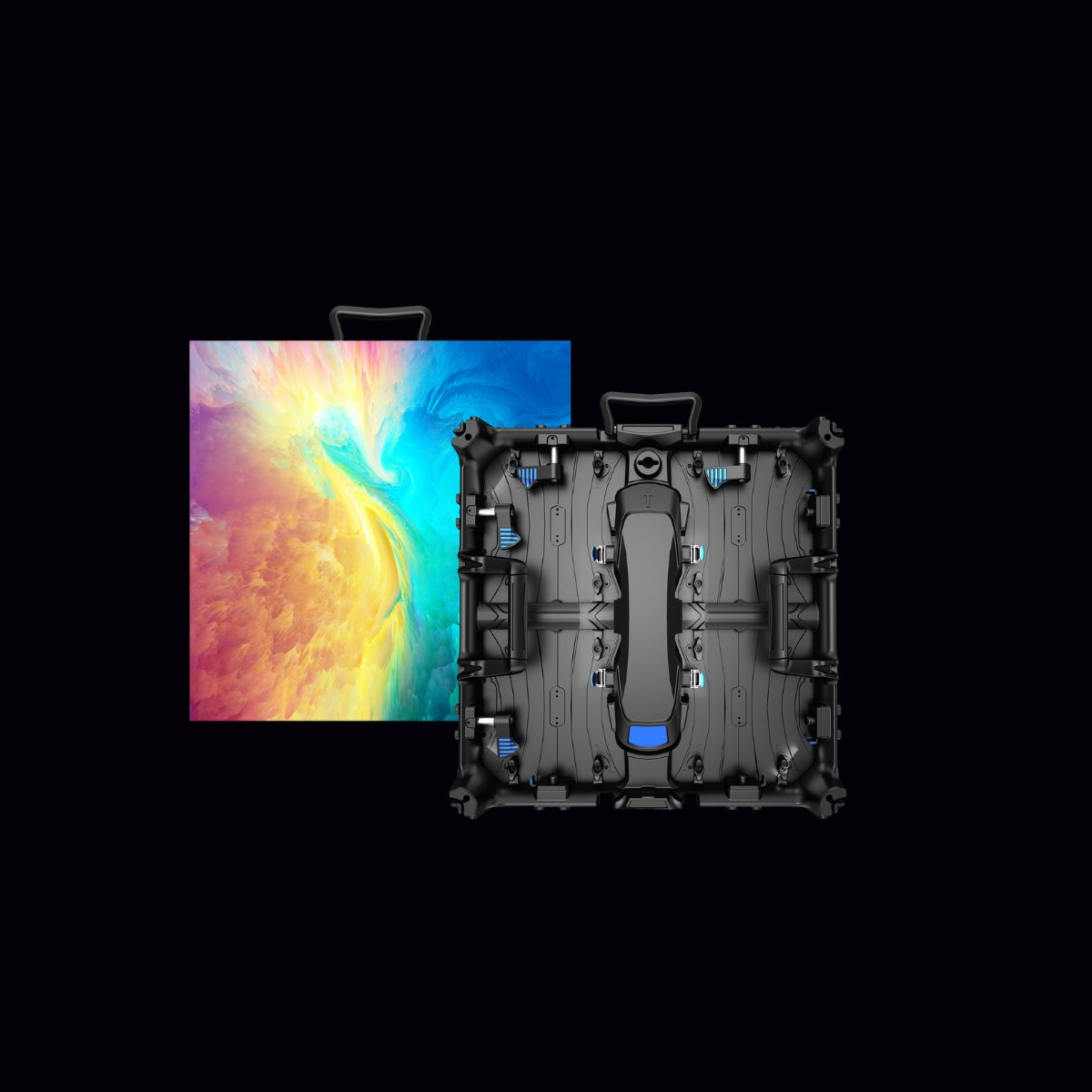

SD-260 is our 500 x 500mm P2.6 LED video panel. SD Series LED panels can be hung on trusses and stacked by structure to meet the different application requirements. And its hanging bar can be used as stack support.

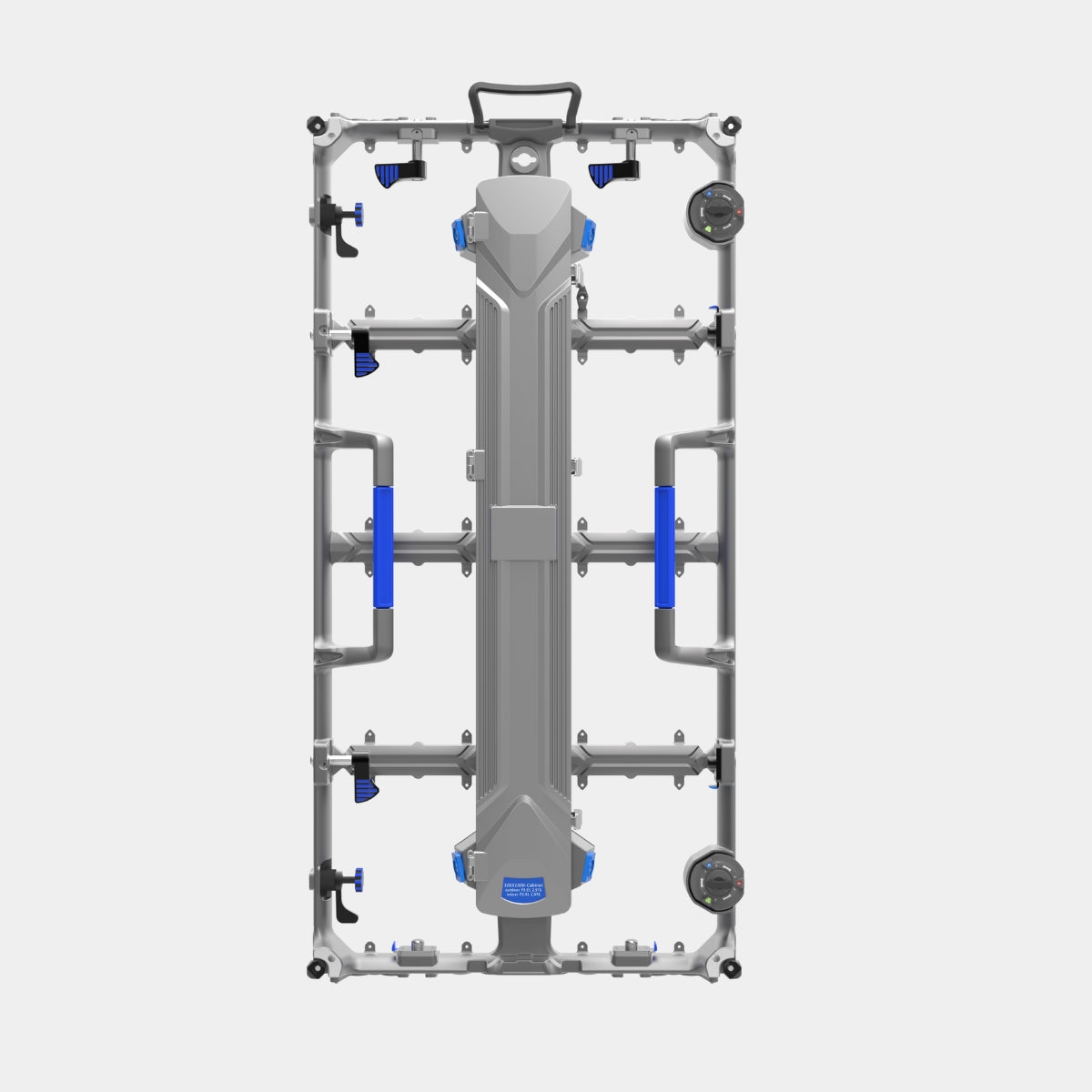

Independent Power Box
The power box is independent, and it can be moved. It is convenient to assemble and maintain the power supply and the LED receiving card.
Curved Design
Inner and outer arcs are all available. You can also make a 360-degree circle LED display if needed.
Price List
Sales Department - Nancy Nancy@eachinled.com
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications.
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
