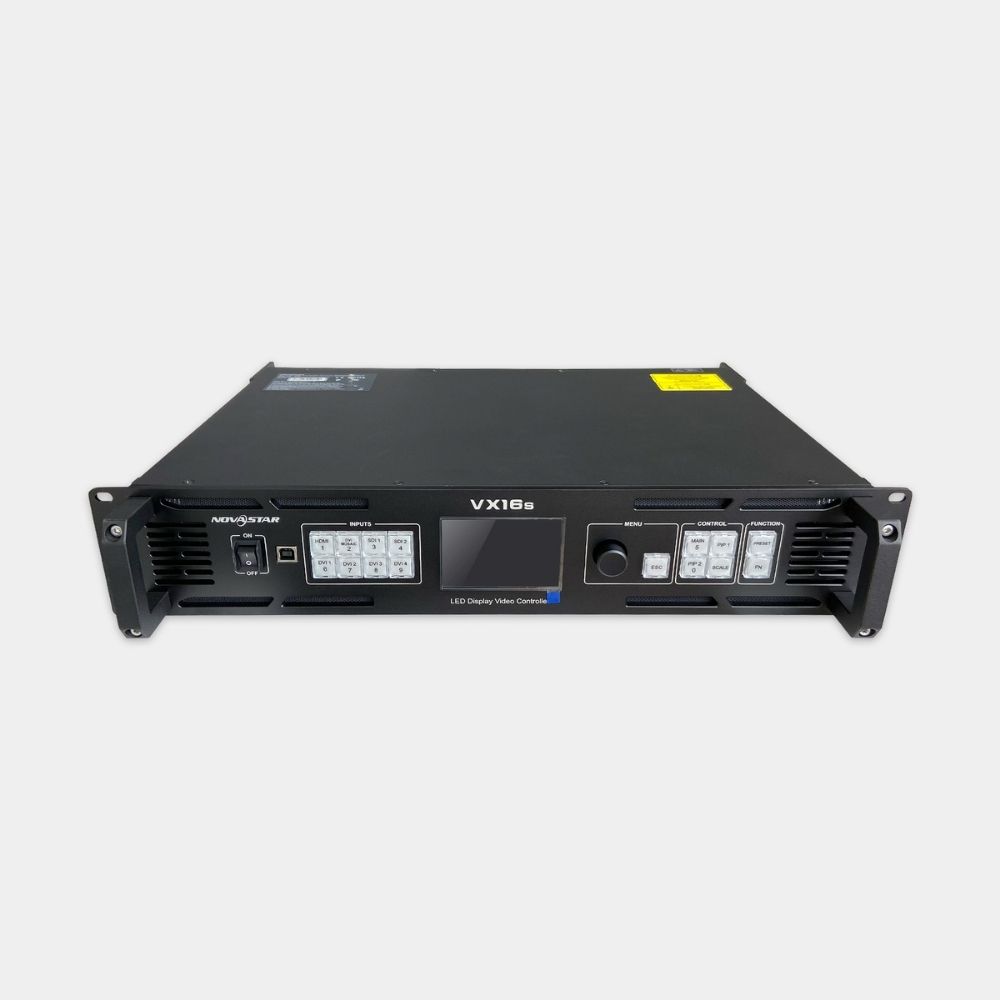

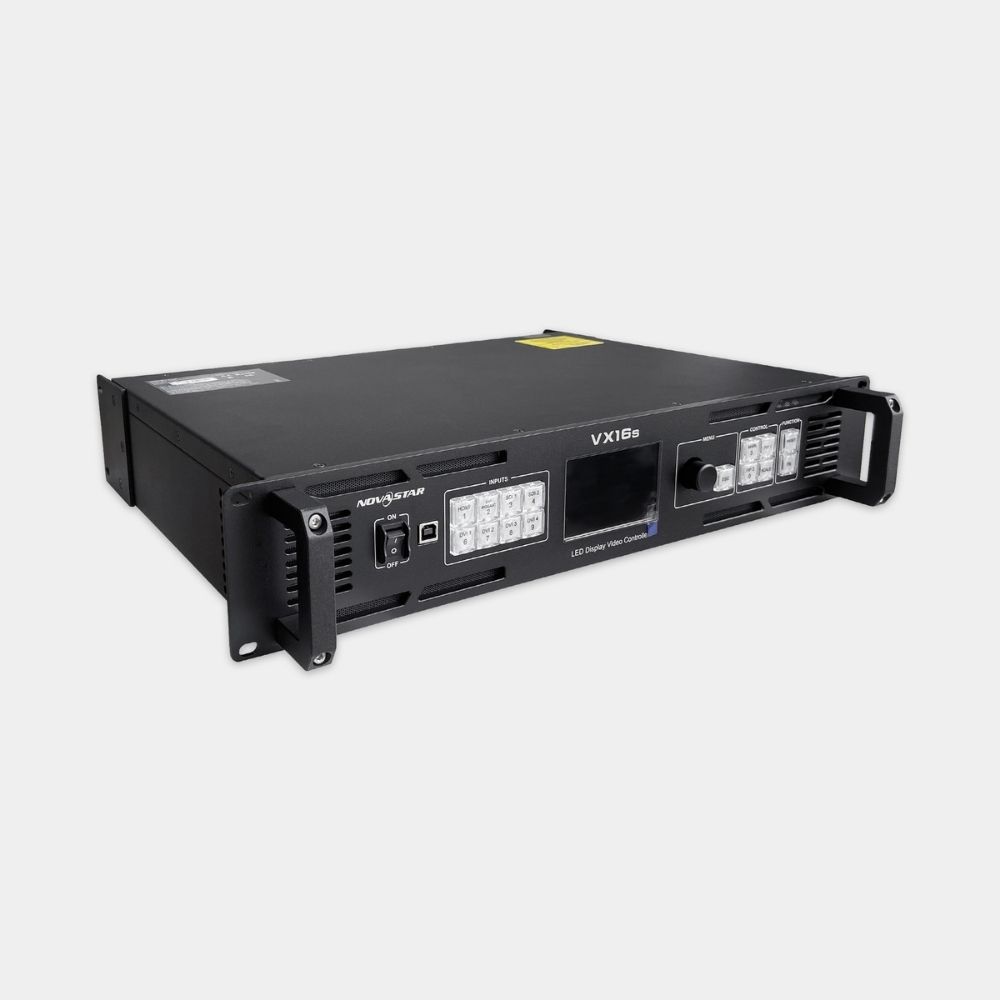

NovaStar VX16S

Name: NovaStar VX16S
Brand: NovaStar
SKU: ET-2204-LVP-VX16S
Price: 3150.00 USD
Availability: InStock

$3,150.00

10% OFF for orders over $3000
5% OFF for orders over $2000
3% OFF for orders over $1000

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days
Free Shipping on Orders Over $500

🔘 All-in-One Video Controller / Processor
🔘 Max. Input Resolution: 4K x 2K@60Hz
🔘 Loading Capacity: 10.4 million pixels

The VX16S video processor is NovaStar's new all-in-one controller. This LED screen processor integrates image processing and control functions into one box. Nova VX16S enables richer image mosaic effects and easier operations with NovaStar's software V-Can.

Connectors

- Inputs -
2 x 3G-SDI
1 x HDMI 2.0
4 x SL-DVI

- Outputs -
16 x Ethernet Outputs
1 x Monitor (HDMI)

Control

1 x Ethernet
1 x USB (Type-A)
1 x USB (Type-B)
1 x RS232

Features

1. 3 independent layers
- 1 x 4K × 2K main layer 2 x 2K × 1K PIP (PIP 1 and PIP 2)
- Adjustable layer priorities

2. DVI mosaic
- Up to 4 DVI inputs can form an independent input source, DVI Mosaic.

3. Decimal frame rate supported
- Supported frame rates include 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz, and 119.88 Hz.

4. 3D
- Supports 3D display effect on the LED screen. The device output capacity will be halved after the 3D function is enabled.

5. Personalized image scaling
- Three scaling options are pixel-to-pixel, full screen, and custom scaling.

6. Image mosaic
- Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

7. Intuitive device operation and control via V-Can

8. Up to 10 presets can be saved for future use.

9. EDID management
-Custom EDID and standard EDID supported
