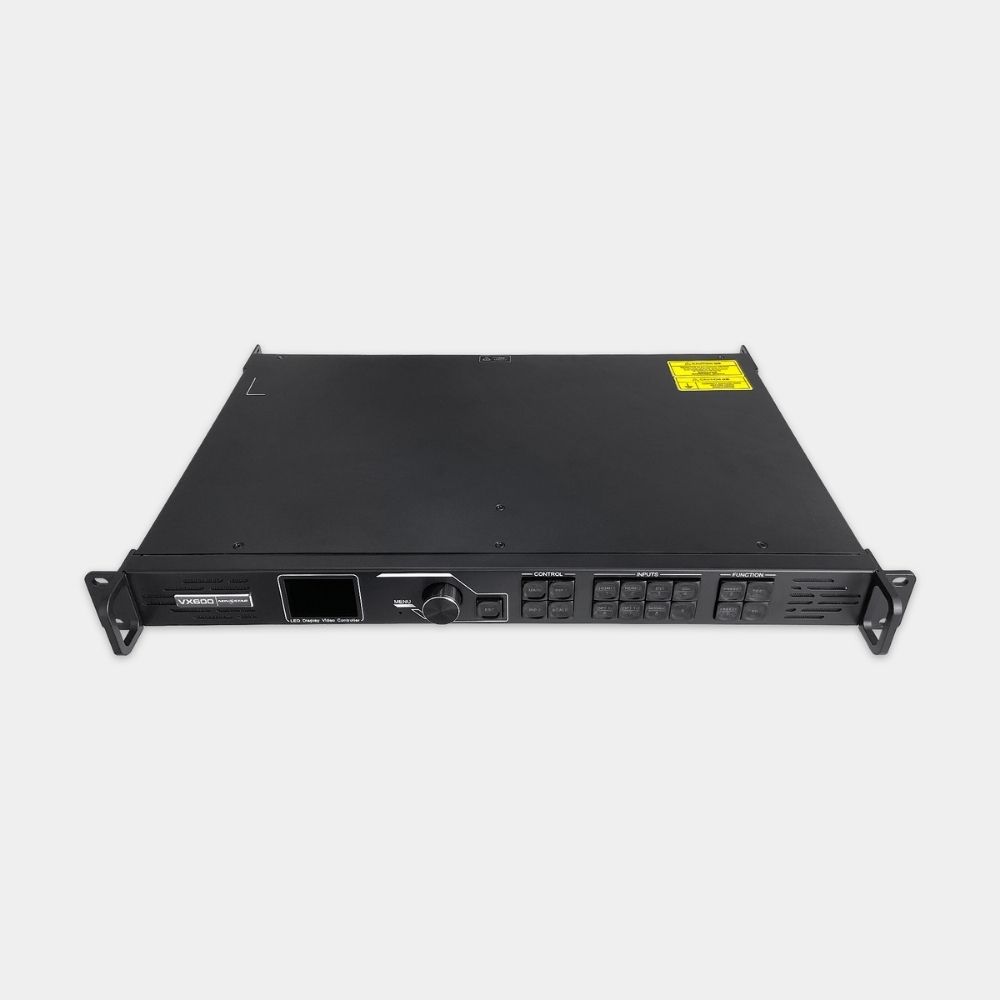

NovaStar VX600

- Inputs -
1 x HDMI 1.3 (IN & LOOP)
1 x HDMI 1.3
1 x DVI (IN & LOOP)
1 x 3G-SDI (IN & LOOP)
1 x 10G optical fiber port (OPT1)

- Outputs -
6 x Gigabit Ethernet ports
2 x Fiber Outputs
1 x HDMI 1.3

1 x Ethernet Port
1 x USB (Type A)
1 x USB (Type B)
1 x Genlock IN + LOOP

1. Self-adaptive OPT 1 for either video input or sending card output
- Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.

2. Audio input and output
- Audio input accompanied with HDMI input source
- Audio output via a multifunction card
- Output volume adjustment supported

3. Low latency
- Reduce the delay from the input to receiving the card to 20 lines when the low latency function and Bypass mode are both enabled.

4. 3 x layers
- Adjustable layer size and position
- Adjustable layer priority

5. Output synchronization
- An internal input source or external Genlock can be used to ensure all cascaded units' output images are in sync.

6. Powerful video processing
- Based on SuperView III image quality processing technologies to provide output scaling
- One-click full-screen display
- Free input cropping

7. Easy preset saving and loading
- Up to 10 user-defined presets supported
- Load a preset by simply pressing one button

8. Multiple kinds of hot backup
- Backup between devices
- Backup between Ethernet ports
- Backup between input sources

9. Mosaic input source supported
- The mosaic source comprises two sources (2K×1K@60Hz) accessed to the OPT 1.

10. Up to 4 units cascaded for image mosaic
- Three working modes
- Video Controller
- Fiber Converter
- Bypass

11. All-round color adjustment
- Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue, and Gamma

12. Pixel level brightness and chroma calibration
- Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and significantly improving LED display brightness and chroma consistency, allowing for better image quality.

13. Multiple operation modes
- Control the device as you wish via V-Can, NovaLCT, or device front panel knob and buttons.
