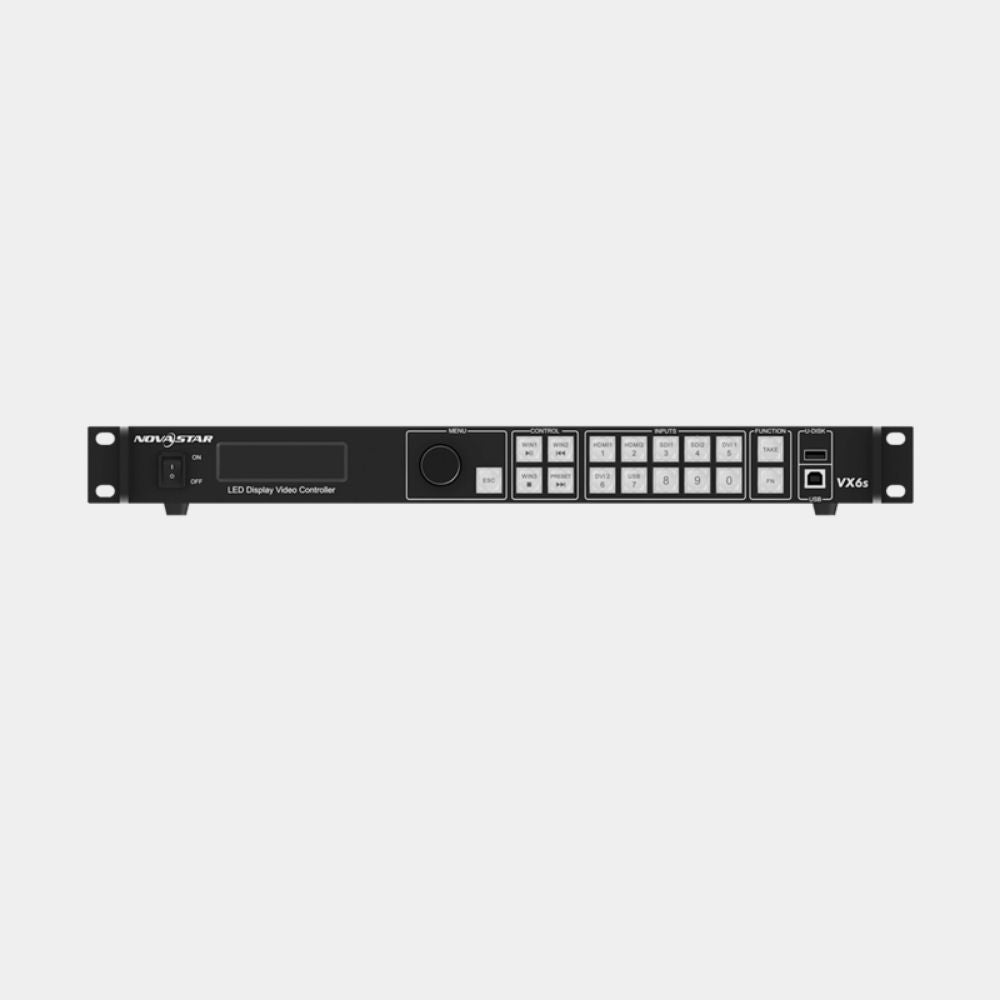

NovaStar VX6S

Name: NovaStar VX6S
Brand: NovaStar
SKU: ET-2206-LVP-VX6S
Price: 985.00 USD
Availability: InStock

$985.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

🔘 All-in-One Video Controller & Processor
🔘 Max. Input Resolution: 1920 x 1080@60Hz
🔘 Loading Capacity: 3.9 million pixels

The VX6S video processor is NovaStar's new all-in-one controller. This LED screen processor integrates video processing and control functions into one box. One unit Nova VX6S supports 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels.

* Note: You will receive NovaStar VX600 with the same features if you buy VX6S. NovaStar VX6S has been discontinued and upgraded to VX600.

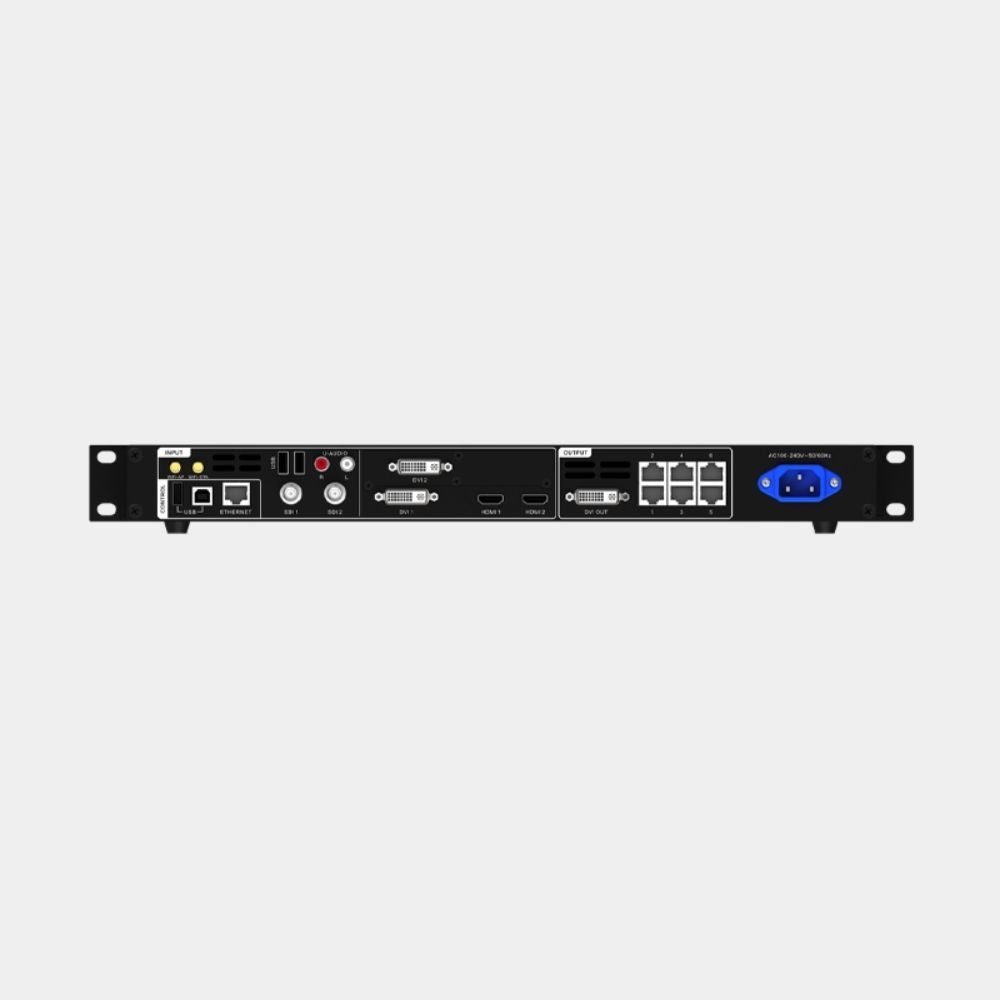

Connectors

- Inputs -
2 x 3G-SDI
2 x HDMI 1.3
1 x DVI
1 x DVI (IN+LOOP)
1 x USB

- Outputs -
6 x Gigabit Ethernet Ports
1 x DVI Monitor

Control

1 x Ethernet Port
1 x USB (Type A)
1 x USB (Type B)

Features

1. 3 x windows
- Adjustable window position and size
- Z-order sorting
- 3 scaling modes for window output:
- Fullscreen
- Pixel to pixel
- Custom

2. 2 x screen configuration methods
- Quick screen configuration
- Advanced screen configuration

3. 2 x system modes
- Direct mode
- Support display content monitoring.
- Switcher mode
- Switch the PVW to PGM by pressing only the TAKE button.

4. Screen brightness adjustment

5. Multiple VX6s units linked to load a screen

6. 16 x user presets saved as templates and conveniently recalled by pressing the number buttons on the front panel

7. Lock to the HDMI, SDI, or DVI input source
to achieve vertical synchronization between
outputs of multiple VX6s units.
