NovaStar MCTRL300 LED Video Controller Slide Image From EACHIN

NovaStar MCTRL300

Name: NovaStar MCTRL300
Brand: NovaStar
SKU: ET-2204-LDC-MCTRL300
Price: 180.00 USD
Availability: InStock

$180.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

🔘 Synchronous LED Display Controller
🔘 Max. Input Resolution: 1920 x 1200@60Hz
🔘 Loading Capacity: 1.3 million pixels

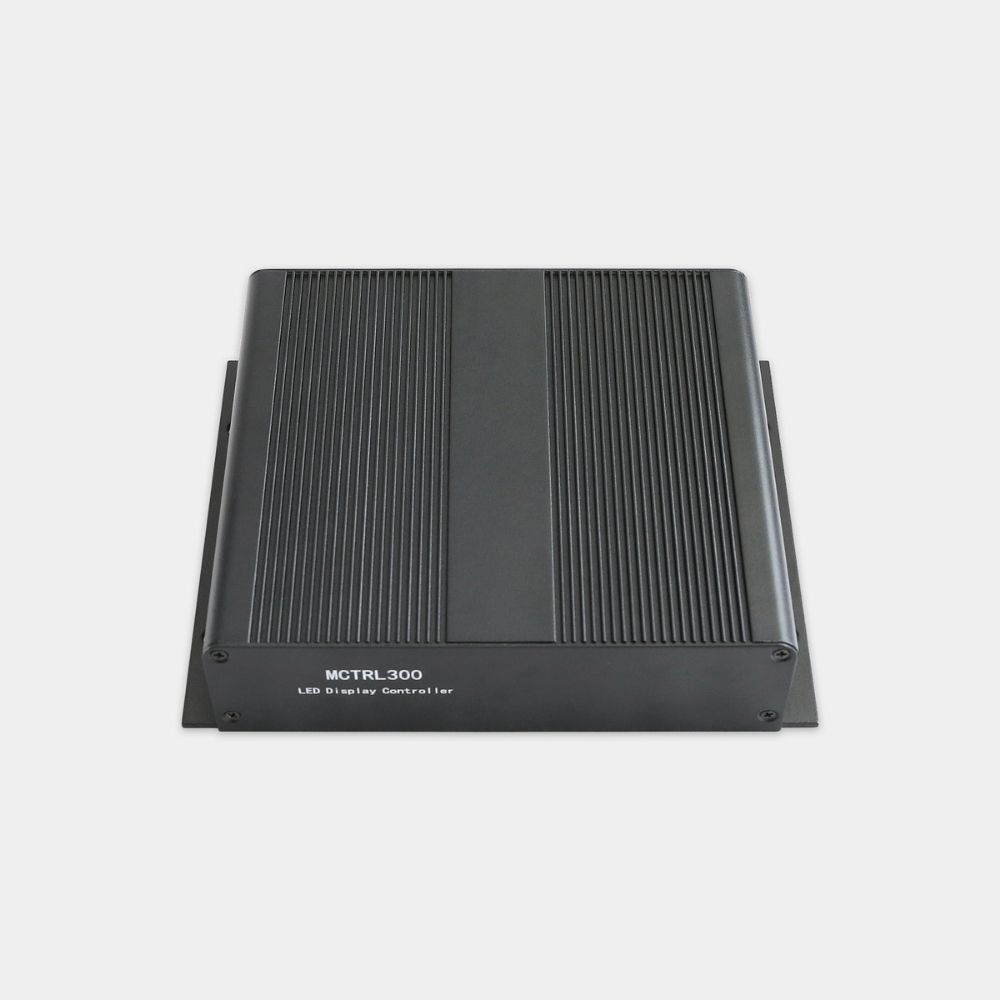

NovaStar MCTRL300 controller is a synchronous video control box. It supports a maximum load capacity of 1920 × 1200@60Hz. The MCTRL300 box is a NovaStar MSD300 sending card inside of an aluminum enclosure with a built in power supply. It will communicate with NovaStar receiving cards inside of an LED display.

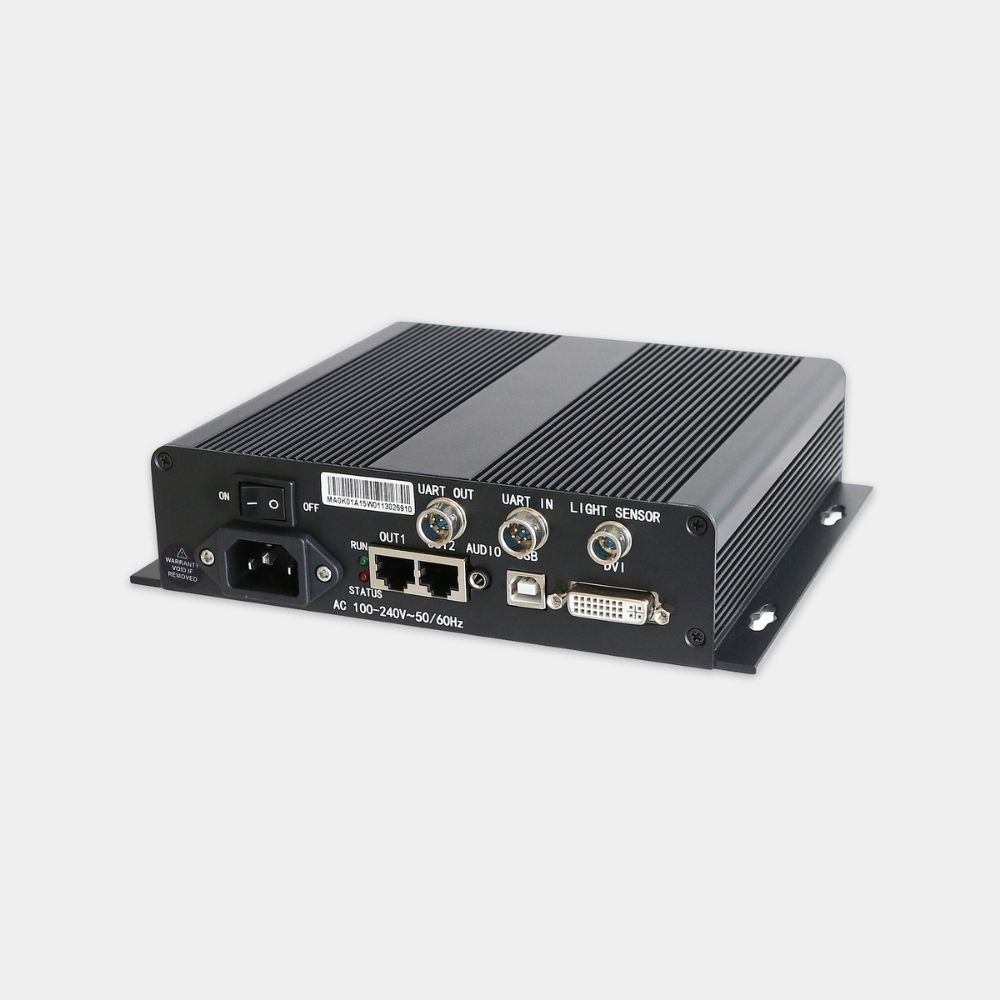

Connectors

- Inputs -
1 x DVI
1 x Audio

- Outputs -
2 x Gigabit Ethernet Ports

- Functionality -
1 x Light Sensor

Control

1 x USB
1 x UART

Features

1) 1 x light sensor connector

2) 1 x type-B USB control port

3) 2 x UART control ports
- They are used for device cascading. Up to 20 devices can be cascaded.

4) Pixel level brightness and chroma calibration
- Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
