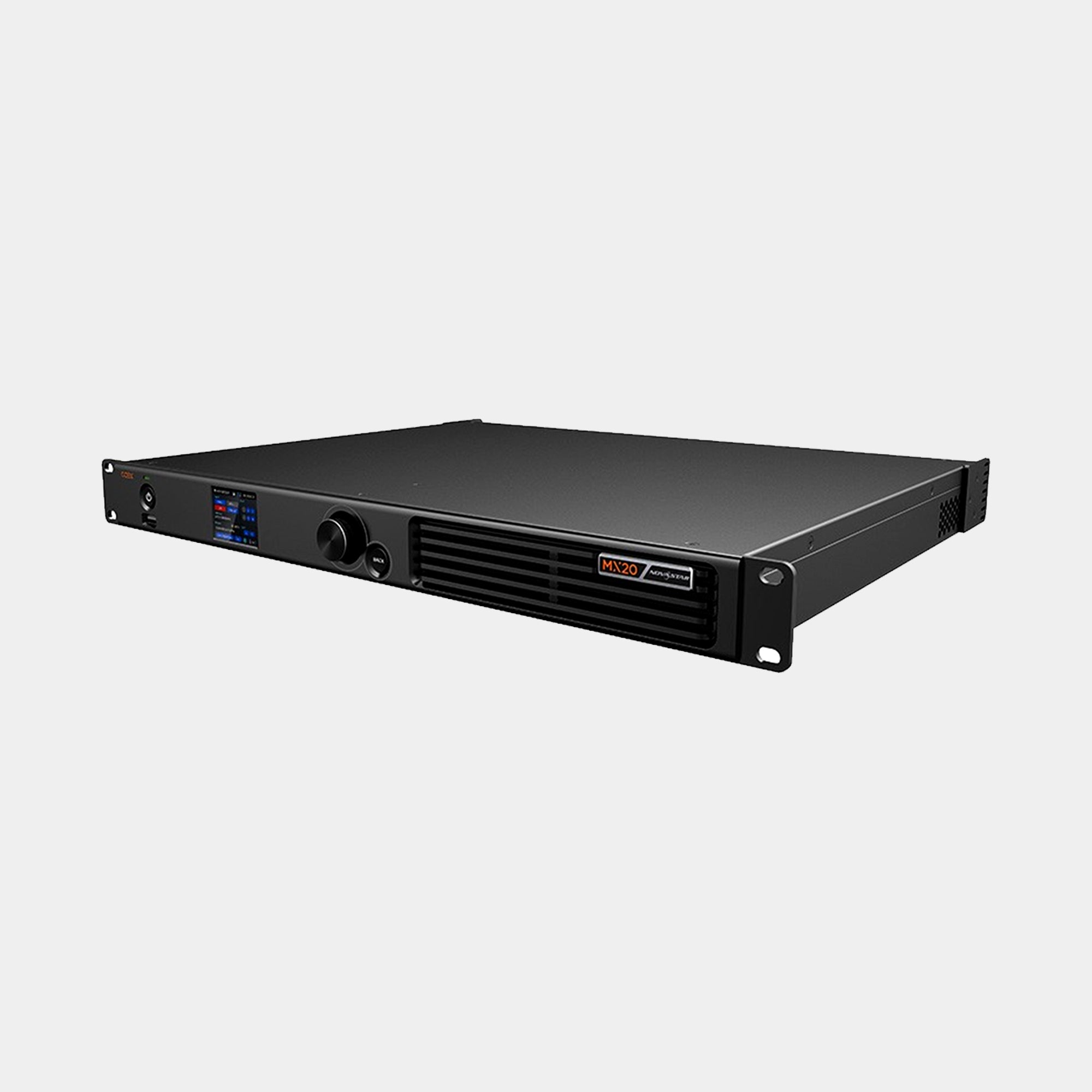

NovaStar MX20

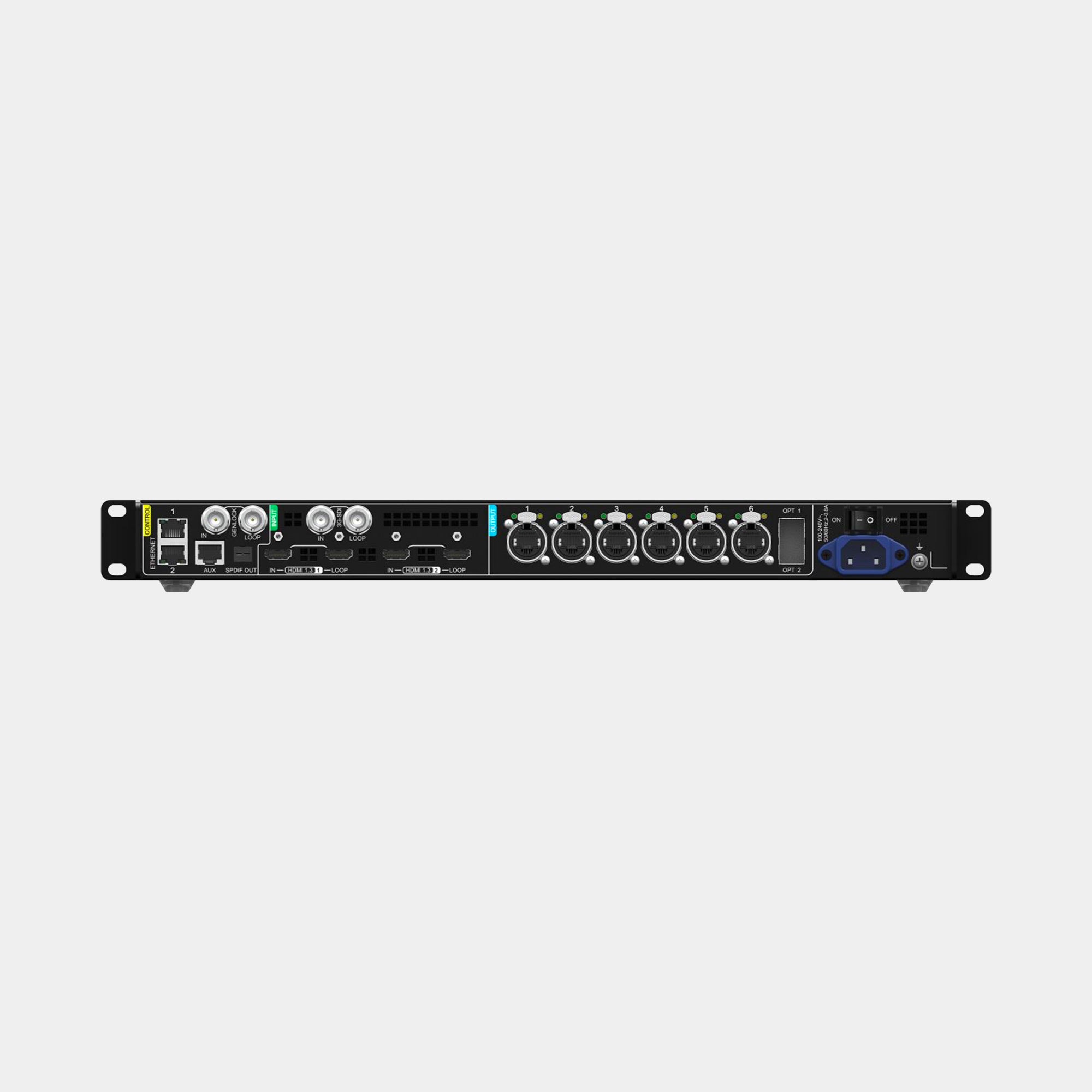

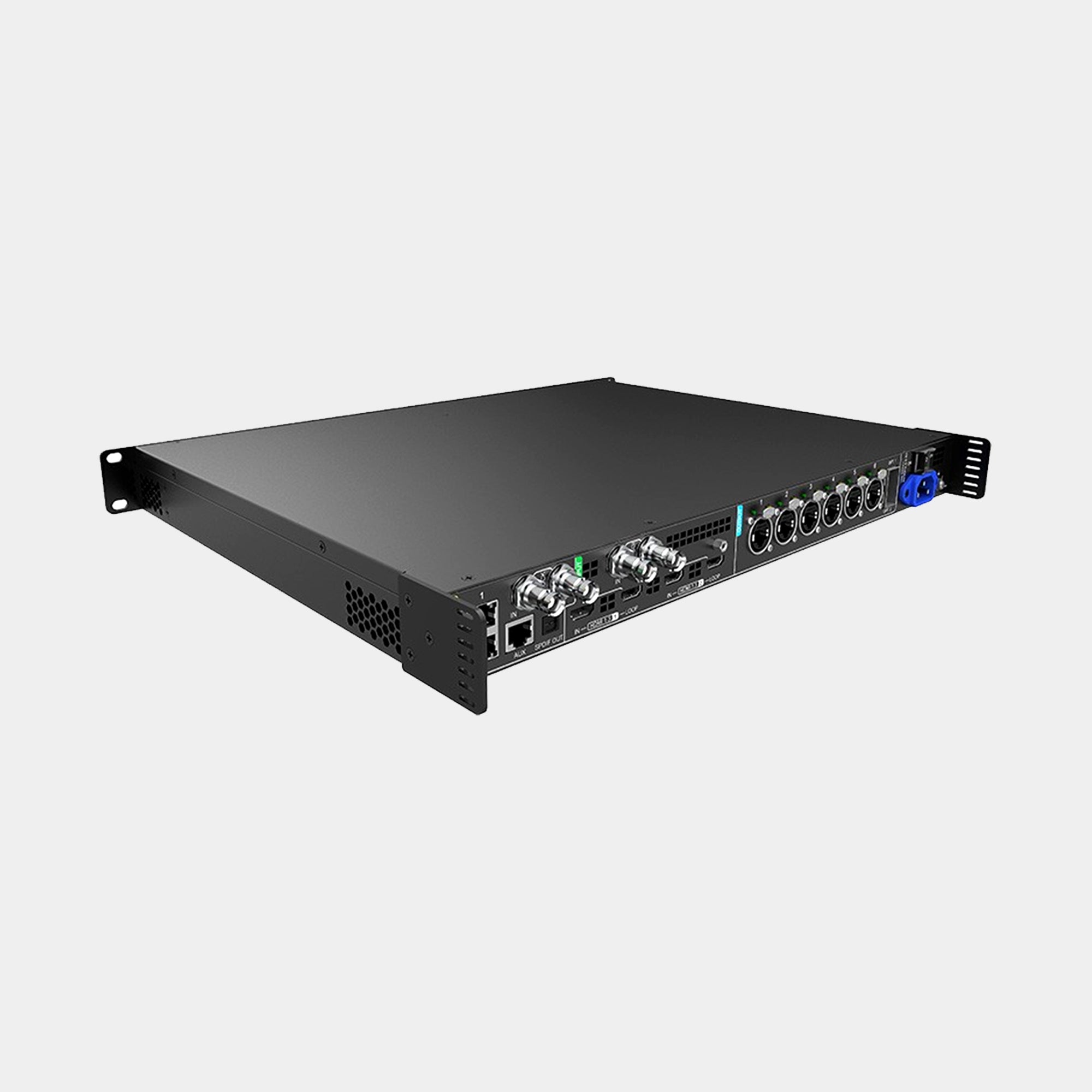

- Inputs -
− 2x HDMI 1.3
− 1x 3G-SDI

- Outputs -
− 6x LED-Out (RJ45)
8Bit@60Hz: 659,000 pixels
10Bit@60Hz: 494,000 pixels
2x HDMI 1.3 Loop
1x 3G-SDI Loop
2x OPT-Out (10G)
1x SPDIF (reserved)
For monitoring display.
− 1x 3D connector
Directly connect a third-party 3D emitter

2 x Ethernet Port
1 x AUX
1 x Genlock IN + LOOP

1) 3 independent layers
Support up to 3 layers and layer priority adjustment in Z order.

2) Image scaling
Support 4 image scaling modes: custom, pixel to pixel, snap to canvas and fill screen.

3) 14Ch Color Correction
Support precise adjustment to hue, saturation and brightness of black, white and the 12 derived standard colors of the red, green and blue primary
colors.

4) Full-Grayscale Calibration
Work with NovaStar’s high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.

5) Latency
- Support low latency and the controller load
capacity is not reduced. The latency at the
controller is 0 frame (less than 1 ms) in SendOnly Controller working mode and 1 frame in AllIn-One Controller working mode.
- Support additional latency. Zero to two frames of latency can be added at the controller.

6) No rectangle restriction
No rectangle restriction for irregular screens. This means when calculating resolutions, blank pixels do not count towards the total capacity. The used load capacity of Ethernet ports is the sum of the
resolutions of all cabinets.

7) Frame Rate Adaptive
The controller can be adaptive to various video input frame rates, including decimal frame rates. Custom frame rates are also supported and the step size of fine tuning frame rate is as small as 0.01 Hz.

8) Two working modes
Support the All-In-One Controller and Send-Only
Controller working modes.
- In the Send-Only Controller mode, the latency can be reduced by one frame.
- In the All-In-One Controller mode, the layer and scaling functions are available.

9) Display system monitoring
Support monitoring of the device status and screen status. Any fault and alarm information can be reported actively.

10)VMP software control
The device can be connected to the VMP software to provide easy and convenient operations and smart device management.

11) SNMP and Art-Net protocols supported.

12) Cascading control via Ethernet
The Gigabit Ethernet control ports support TCP/IP protocol and star topology. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in.
