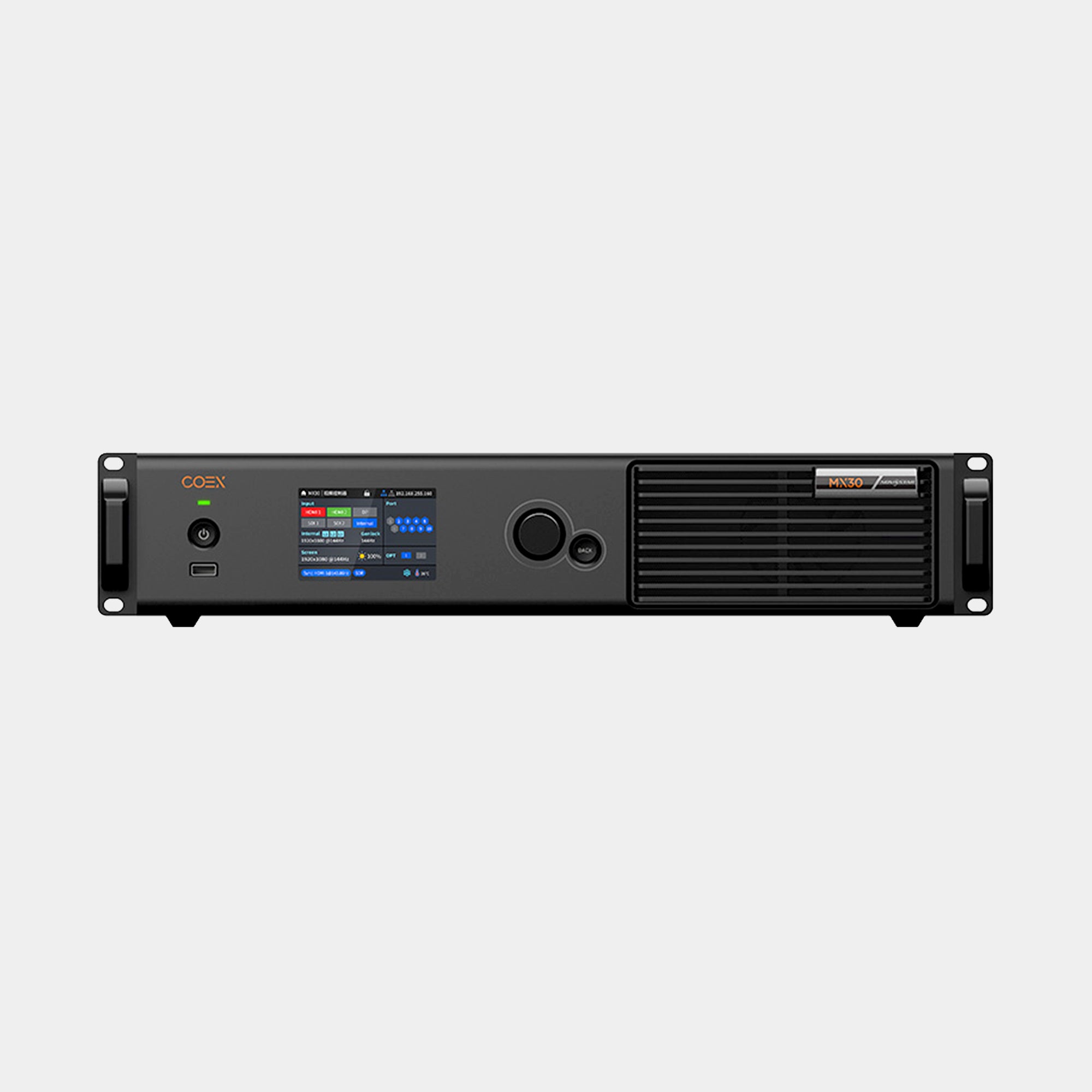

NovaStar MX30

- Inputs -
− 1x HDMI 2.0
− 1x HDMI 1.4
− 1x DP1.1
− 2x 3G-SDI

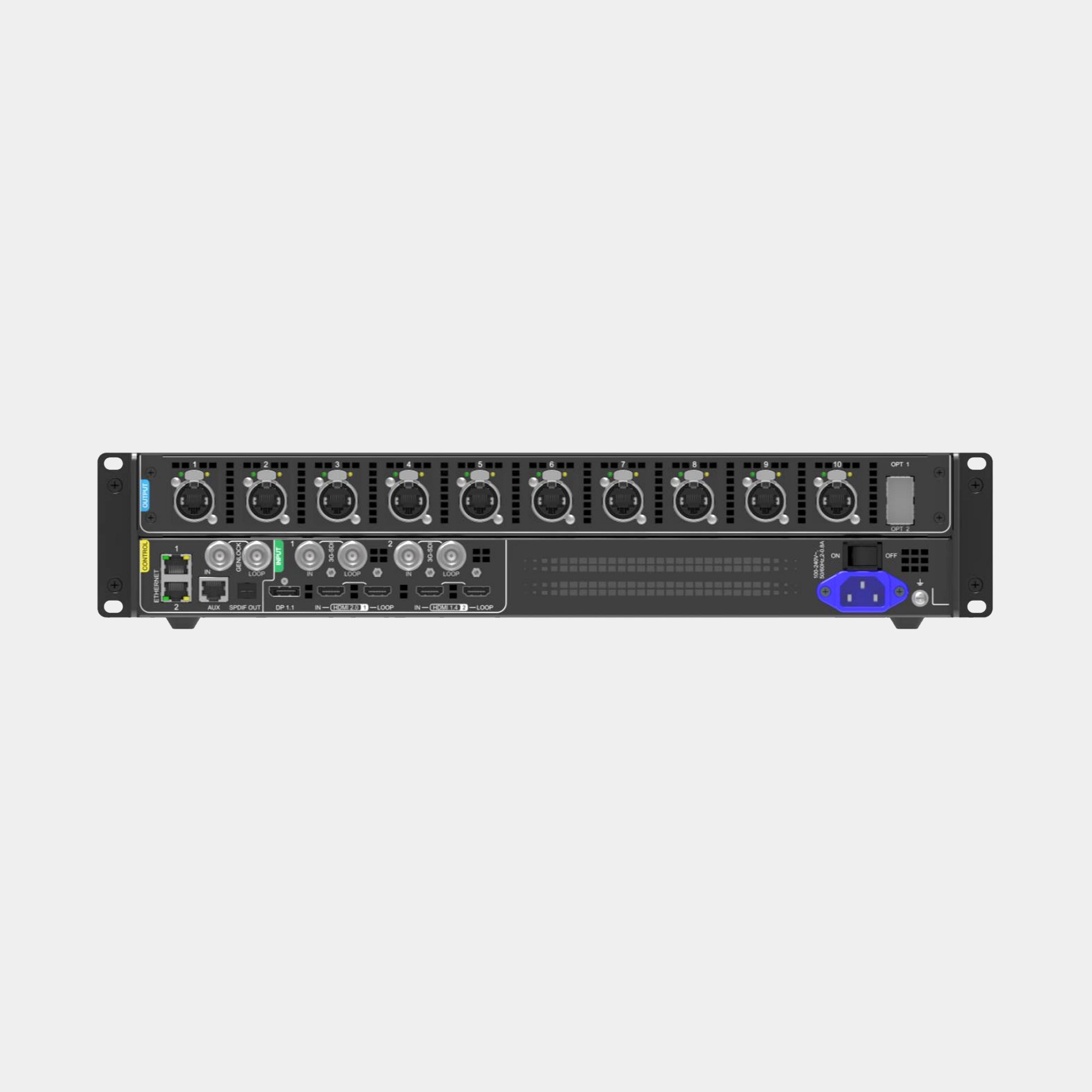

- Outputs -
− 10x LED-Out (RJ45)
8Bit@60Hz: 659,000 pixels
10Bit@60Hz: 494,000 pixels (with A10s Pro)
− 1x HDMI 2.0 Loop
− 1x HDMI 1.4 Loop
− 1x 3G-SDI Loop
− 2x OPT-Out (10G)
− 1x SPDIF (reserved)

2 x Ethernet Port
1 x AUX
1 x Genlock IN + LOOP

1) Multiple types of inputs
− 1x HDMI 2.0 (with loop through)
− 1x HDMI 1.4 (with loop through)
− 1x DP 1.1
− 2x 3G-SDI (with loop through)

2）10-bit and 8-bit video inputs

3）3 types of outputs
− 10x Gigabit Ethernet ports, load capacity up
to 6.5 million pixels
− 2x 10G optical ports
− 1x SPDIF digital audio port

4）3 types of controls
− 1x Genlock signal input (with loop through)
− 2x Ethernet control ports
− 1x Auxiliary port

5）3 independent layers
Support up to 3 layers and layer priority adjustment in Z order.

6）Image scaling
Support 4 image scaling modes: custom, pixel to pixel, snap to canvas and fill screen.

7）14Ch Color Correction
Support precise adjustment to hue, saturation and brightness of black, white and the 12 derived standard colors of the red, green and blue primary colors.

8）Full Grayscale Calibration
Work with NovaStar’s high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.

9）HDR
− Support HDR10 and comply with the SMPTE
ST 2084 and SMPTE ST 2086 standards.
− Support HLG

10）Latency
− Support low latency and the controller load
capacity is not reduced. The latency at the controller is 0 frame (less than 1 ms) in SendOnly Controller working mode and 1 frame in All-In-One Controller working mode.

− Support additional latency. Zero to two frames
of latency can be added at the controller

11） Frame Rate Adaptive
The controller can be adaptive to various video
input frame rates, including decimal frame rates.
Custom frame rates are also supported and the
step size of fine tuning frame rate is as small as
0.01 Hz.

12）No rectangle restriction
No rectangle restriction for irregular screens.
When calculating resolutions, blank pixels do not
count towards the total capacity. The used load
capacity of Ethernet ports is the sum of the
pixels of all cabinets.

13） Two working modes
Support the All-In-One Controller and Send-Only
Controller working modes.
− In the Send-Only Controller mode, the latency
can be reduced by one frame.
− In the All-In-One Controller mode, the layer
and scaling functions are available.

14）Display system monitoring
Support monitoring of the device status and
screen status. Any fault and alarm information
can be reported actively.
