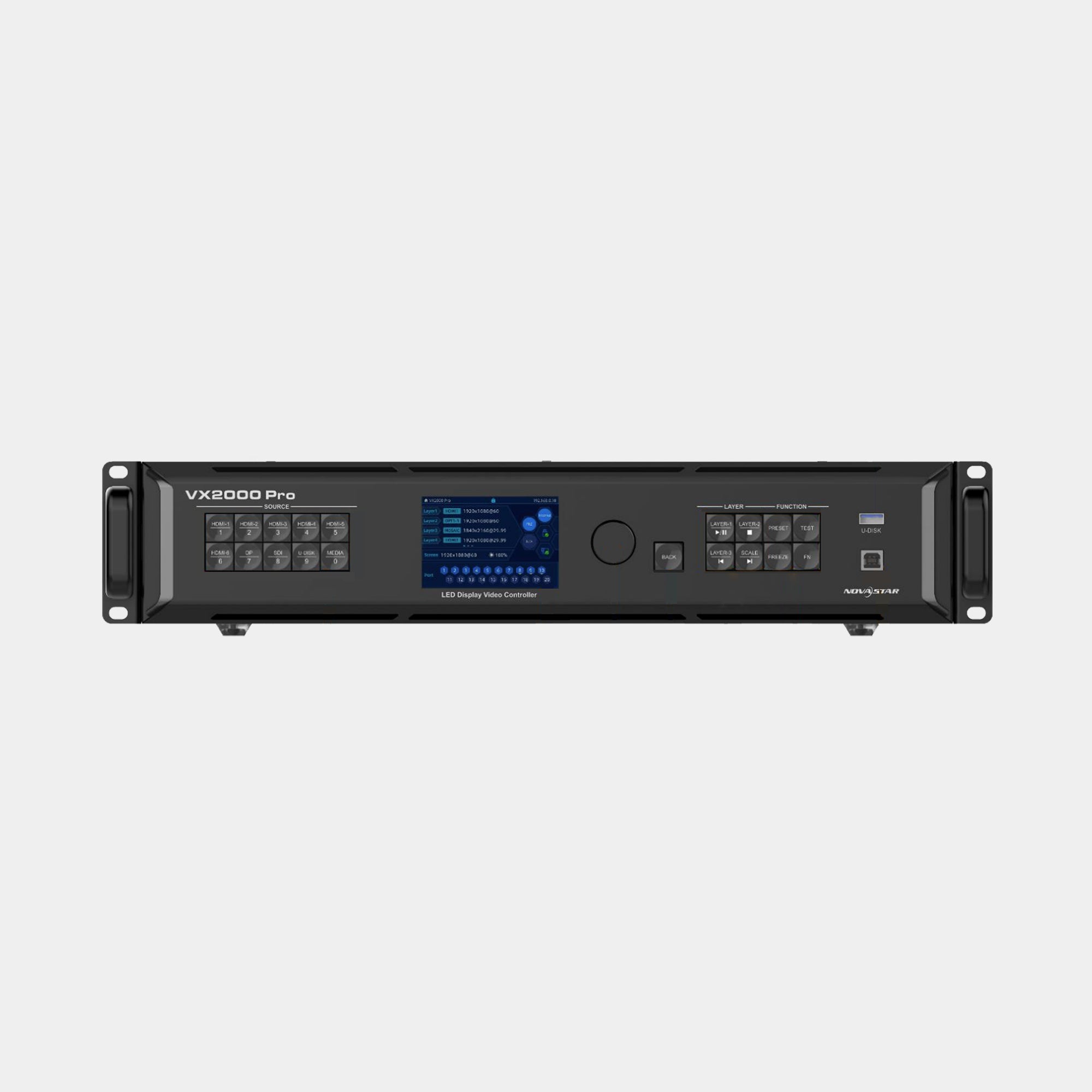

NovaStar VX2000 Pro

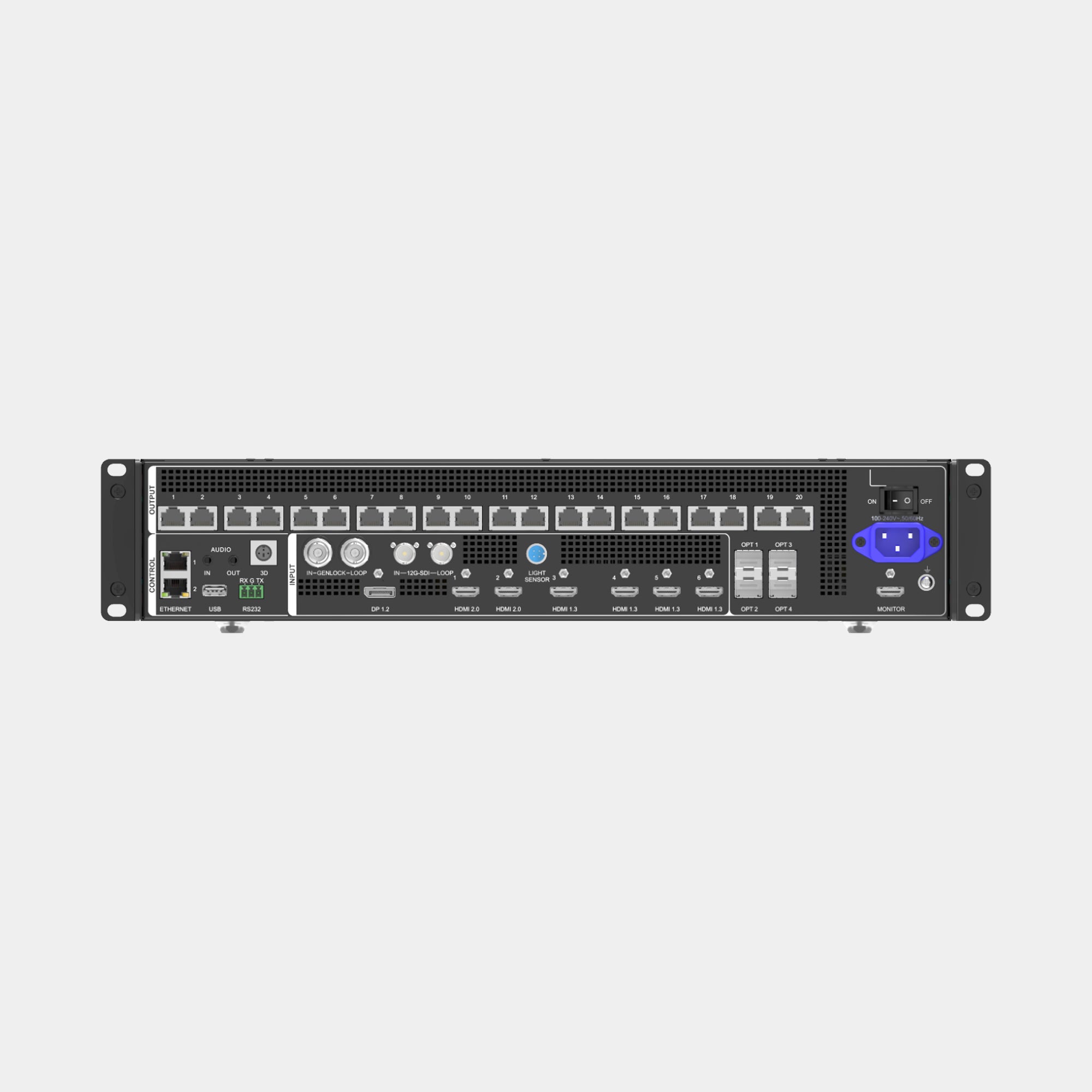

- Inputs -
− 1x DP 1.2
− 2x HDMI 2.0
− 4x HDMI 1.3
− 2x 10G optical fiber port (OPT 1 & OPT 2)
− 1x 12G-SDI (IN & LOOP)
− 1x USB 3.0 (Play images or videos saved in a USB drive.)

- Outputs -
− 20x Gigabit Ethernet ports
A single device supports up to 13 million pixels, delivering a maximum width of 16,384
pixels and a maximum height of 8192 pixels.
− 4x Fiber outputs
OPT 1 and OPT 2 send the output on Ethernet ports 1~10 and 11~20 respectively.
OPT 3 and OPT 4 copy or back up the output on Ethernet ports 1~10 and 11~20
respectively.
− 1x HDMI 1.3
For monitoring display.
− 1x 3D connector
Directly connect a third-party 3D emitter

2 x Ethernet Port
1 x USB 2.0
1 x RS232
1 x Genlock IN + LOOP
1 x LIGHT SENSOR

1. Self-adaptive OPT 1/2 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1/2 can be used as either an input or output
connector, depending on its connected device.

2. HDMI mosaic
− Supports mosaicing of two HDMI 2.0 inputs or four HDMI 1.3 inputs.
− Max. mosaicing resolution: 4K×2K

3. Fiber input mosaic
The input source connected through OPT 1/2 can be used either independently or combined
to create a mosaic input source.
Audio input and output
− Audio input accompanied with HDMI and DP sources
− 3.5 mm independent audio input and output
− Adjustable output volume

4. Free topology
The maximum resolution of the circumscribed rectangles loaded by the VX2000 Pro is up to
13 million pixels.
Flexible screen configuration without worrying about unused blank areas when calculating
Ethernet port load capacity, allowing for optimal use of port bandwidth.
*Specific receiving cards are required.

5. Low latency
By enabling the low latency feature and ByPass mode, the device delay can be reduced to 0
frame.

6. Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the
output images of all cascaded units in sync.

7. EDID management
Import and export EDID files.

8. Easy preset saving and loading
− Up to 256 user-defined presets supported
− Load a preset by simply pressing one button.
− Save, overwrite and delete a preset.
− Preview the layer layout saved in the preset. (Unico web page)

9. Multiple layer display
− Supports 12*2K×1K layer resources.
Users can create layers in three different specifications - 4K×2K, 4K×1K, and 2K×1K.
These layers will use 4x, 2x, and 1x 2K layer resources respectively, depending on the
capacity of the input source connector used to open the layers.
− Adjustable layer size and position
− Adjustable layer priority
− Adjustable aspect ratio

10. 3D function
− Traditional solution: Connect the EMT200 3D emitter to the device's Ethernet port, and
use the compatible 3D glasses to enjoy a 3D visual experience.
− New solution: Connect the third-party 3D emitter to the device 3D connector and use
the compatible 3D glasses to enjoy a 3D visual experience.
Note: Enabling 3D function will halve the device output capacity.

11. Personalized image scaling
Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom.

12. Powerful video processing
− Based on SuperView III image quality processing technologies to provide stepless
output scaling.
− One-click full screen display
− Free input cropping

13. Color adjustment
Supports output color management, including brightness, saturation, contrast and hue.

14. Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration software to support brightness and chroma
calibration on each LED, which can effectively remove color discrepancies and greatly
improve LED display brightness and chroma consistency, allowing for better image quality.
The function of displaying image on screen for test is also supported.

15. Supports USB playback for instant plug-and-play convenience

16. Three working modes
− Video Controller
− Fiber Converter
− Bypass

17. Multiple control options
− Device front panel knob
− Unico Web page control
− NovaLCT
− VICP app

18. End-to-End backup
− Backup between devices
− Backup between input sources
− Backup between Ethernet ports
− Backup between optical fiber ports

19. Ethernet port backup test
Test whether the pre-stored images, backup Ethernet ports and devices take effect without plugging and unplugging the Ethernet cables.

20. Data saving after power failure
After a normal shutdown or unexpected power outage, reconnecting the power will automatically restore the previously saved settings on the device.

21. 24/7 rigorous stability test under extreme high and low temperatures proved robust stability and reliability
